Double Snap Lock® Squeeze Connector

Material: Zinc Die-Cast

Category: Fittings

Sub Category: Flex

Type(s): Connector

Connection Type(s): 90 DegreeSqueeze

Feature(s): Double Snap Lock®InsulatedSnap Lock®

Double Snap Lock® squeeze connectors are used to terminate AC, MC or FMC/RWFMC to a knockout in a metal box or enclosure. The patented Double Snap Lock® design provides a faster installation. For dry location applications.

No tools required
90° C rated throat insulator
Patent-pending design

Product Info
Dimensions
Listing
Resources

Model Number	Retail Pack	Master Pack	Package Type
69417			Polybag
69418			Polybag
69419			Polybag

A	B	C	Volume
1.37	1.73	0

A	B	C	Volume
1.68	2.06	0

A	B	C	Volume

cCSAus: 174008

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Connector-Listing.pdf

< Products

1/2″ 6 Hole One-Gang Extension Ring

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Extension Ring

Type(s): 1-Gang

Connection Type(s): With Outlets

May be used to provide additional capacity for box ﬁll requirements

(6) 1/2″ threaded knockouts
Rugged, seamless die-cast construction prevents moisture penetration
Tapered internal NPT threaded hubs comply with NEMA requirements and accept threaded conduit ﬁttings or threaded conduits for a secure installation
Powder coated for maximum corrosion resistance
Closure plugs provided with outlet versions
Available in bulk or custom shrink wrapped packaging
1-1/2″ Depth

Product Info
Dimensions
Listing

Color	Model Number
Gray	14233-6X

Volume
9.5

UL: E121488
CSA: LR57925

Standards: UL 514A, CSA C22.2 No. 18.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Cord Grip Non-metallic Connector (without mesh)

Material: Non-Metallic

Category: FittingsStrain Relief

Sub Category: Strain Relief

Type(s): Connector

Connection Type(s): Cord GripStraight

Used to seal, provide strain relief and terminate portable or ﬂexible cords to metal enclosure or box

Suitable for use with S, SO, ST, STO, SJ, SJT, SJTO, SJOOW, SOOW, STOOW, SJTOOW and SVO cords
Plastic ﬁttings
Rubber grommet provides water-tight seal

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49226M	1	10	Polybag
49227M	1	10	Polybag

A	B	C	Volume

A	B	C	Volume

cCSAus: 174008

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Di(2-ethylhexyl)phthalate.
See www.P65Warnings.ca.gov

< Products

LED Light

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Lighting

Type(s): LED

Sigma’s weatherproof 12W LED Floodlight is used for outdoor security or aesthetic lighting applications in wet, damp or dry locations. Its rugged, die-cast construction prevents moisture penetration and is powder coated for maximum corrosion resistance. The adjustable lamp head can be angled to illuminate a desired area and can be installed to activate with a switch or using a motion or dusk-to-dawn sensor (sold separately). This 12 watt light is equivalent to the brightness of a 60 watt incandescent or 20 watt CFL and gives off a warm white appearance.

12 watts and 1000 lumens
Brightness equivalent to 60W Incandescent or 20W CFL
Warm white (3000 K) appearance
Fits 1/2″ knockouts
Tool-free adjustable lamp head
Includes lamp head, LED bulb and lens

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	14338BR	4	031857343385
Gray	14338	4	031857143381
White	14338WH	4	031857643386

A	B
3.36	2.87

cULus: E470512

Standards: UL 1598 & UL 8750, CSA C22.2 No. 250.0-08 & CSA C22.2 No. 250.13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

LED Light Kit – 24 Watt

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: KitLighting

Type(s): LED

LED light kits are for outdoor security or aesthetic lighting applications.

24 watts and 2000 lumens
Brightness equivalent to 120W Incandescent or 40W CFL
Warm white (3000 K) appearance
Tool-free adjustable lamp head
Includes round box with five 1/2″ holes, round cover, (2) LED lights, closure plugs, gasket and hardware

Product Info
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	16754	2	031857167547
Bronze	16754BR	2	031857367541
White	16754WH	2	031857667542

cULus: E470512

Standards: UL 1598, CSA C22.2 No. 250.0-08

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

1/2″ Closure Plug Kit with Wire Nuts

Material: Zinc Die-Cast

Category: Weatherproof

Sub Category: Accessories

Type(s): Closure PlugWire Nut

Closure plugs are used to seal off unused knockouts in weatherproof boxes, extension rings and cluster covers.

Includes (3) 1/2″ gray closure plugs and (2) yellow wire nuts

Product Info
Dimensions
Listing

Color	Model Number	Master Pack Quantity	UPC
Gray	18339	10	031857183394

A
0.82

cULus: E121487

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Water Tight Hub

Material: Zinc Die-Cast

Category: Fittings

Sub Category: Rigid

Type(s): Water Tight Hub

Feature(s): Insulated

Water tight hubs are used to terminate rigid threaded conduit or IMC to enclosure.

Assembled with 90°C rated insulator and rubber sealing ring
UL listed and CSA certified for wet locations
Meets NEMA sealing requirements for Type 2, 3R, 4, 4X, 5 and 12 rated enclosures
Die-cast from high strength zinc alloy

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49070	1	10	Polybag
44070	2	10	Polybag
44071	1	10	Polybag
02-54072	1	10	Polybag
02-54073	1	10	Polybag
02-54074	1	5	Polybag
02-54075	1	3	Polybag
02-54076	1	2	Polybag

A	B	C	Volume
1.43	1.5	0.55

A	B	C	Volume
1.68	1.5	0.74

A	B	C	Volume
2	1.81	0.94

A	B	C	Volume
2.37	1.91	1.29

A	B	C	Volume
2.75	1.88	1.51

A	B	C	Volume
3.25	1.89	1.98

A	B	C	Volume
3.78	2.6	2.41

UL: E155411
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Underground Feeder (UF) Cable Connector

Material: Zinc Die-Cast

Category: Fittings

Sub Category: NMSE

Type(s): Connector

Connection Type(s): Underground Feeder Cable

UF connectors are used to secure Underground Feeder cable to a metal enclosure or waterproof box with a threaded hub.

Wet location approved when used with a sealing locknut (not included).

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
18820	1	10	Polybag
49092	1	25	Polybag
18821	1	5	Polybag
49093	1	10	Polybag

A	B	C	Volume
1.26	0.22	0.44

A	B	C	Volume
1.3	0.22	0.66

UL: E213494
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Service Entrance Cable Connector

Material: Zinc Die-Cast

Category: Fittings

Sub Category: NMSE

Type(s): Connector

Connection Type(s): Service Entrance Cable

Service entrance cable connectors are used for sealing and terminating Oval SE cable to a threaded entry of a watertight box or enclosure.

Wet location approved when used with a sealing locknut (not included).
Rubber grommet provides water-tight seal around cable

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
02-55760	1	10	Boxed - Individual UPC
02-55761	1	10	Boxed - Individual UPC
02-55770	1	6	Boxed - Individual UPC
02-55781	1	5	Boxed - Individual UPC
02-55793	1	5	Boxed - Individual UPC
02-55794	1	5	Boxed - Individual UPC

A	B	C	Volume
1.44	0.5	0.8

A	B	C	Volume
1.44	0.44	0.7

A	B	C	Volume
1.99	0.57	0.94

A	B	C	Volume
2.18	0.74	1.24

A	B	C	Volume
2.41	0.89	1.54

A	B	C	Volume
2.41	1	1.58

UL: E155410
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Wedge Clamp Connector

Material: Aluminum

Category: Fittings

Sub Category: NMSE

Type(s): Connector

Connection Type(s): Wedge Clamp

Wedge clamp connectors are used to connect a triplex overhead service entrance cable to a mounting device on a building.

Stainless Steel Ball

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
51061	1	10	Boxed - Individual UPC
51062	1	5	Boxed - Individual UPC
51063	1	5	Boxed - Individual UPC

A	B	C	Volume
7.4	0.6	0.85

A	B	C	Volume
6.2	0.78	1.3

A	B	C	Volume
7.4	0.78	1.2

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Squeeze Connector

Material: Zinc Die-Cast

Category: Fittings

Sub Category: Flex

Type(s): Connector

Connection Type(s): Squeeze

Squeeze connectors are used to terminate AC, MC or FMC/RWFMC to a knockout in a dry location box or enclosure.

Assembled with die cast locknut and zinc plated steel screws

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49401	1	30	Polybag
55401M	50	1	Contractor Pack
49407	1	25	Polybag
44407	3	20	Polybag
SC-50	25	2	Contractor Pack
49408	1	25	Polybag
44408	3	20	Polybag
55408M	25	2	Contractor Pack
02-55410	1	10	Boxed - Individual UPC
02-55412	1	10	Boxed - Individual UPC
02-55414	1	10	Boxed - Individual UPC
02-55416	1	10	Boxed - Individual UPC

A	B	C	Volume
1	0.41	0.62

A	B	C	Volume
1.5	0.5	0.99

A	B	C	Volume
1.59	0.5	1.18

A	B	C	Volume
1.75	0.55	1.44

A	B	C	Volume
1.9	0.61	1.76

A	B	C	Volume
2.03	0.61	2.06

A	B	C	Volume
2.1	0.61	2.55

UL: E155411
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Insulated Squeeze Connector

Material: Zinc Die-Cast

Category: Fittings

Sub Category: Flex

Type(s): Connector

Connection Type(s): Squeeze

Feature(s): Insulated

Squeeze connectors are used to terminate AC, MC or FMC/RWFMC to a knockout in a dry location box or enclosure.

90° C rated throat insulator
Assembled with die cast locknut and zinc plated steel screws

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
69401	1	30	Polybag
69407	1	25	Polybag
69408	1	25	Polybag

A	B	C	Volume
1.08	0.49	0.62

A	B	C	Volume
1.58	0.58	0.99

A	B	C	Volume
1.68	0.58	1.18

UL: E155411
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Universal Conduit Support

Material: Steel

Category: Fittings

Sub Category: NMSE

Type(s): Conduit Support

Feature(s): Universal

Conduit supports are used to secure conduit to the outside surface of a building.

1/2″ x 10″ Stud Bolt
For Rigid, IMC, or EMT conduit

Product Info
Dimensions

Model Number	Retail Pack	Master Pack	Package Type
02-56042	1	5	Boxed - Individual UPC

A	B	C	Volume
5.36	4.13	0.15

< Products

Service Entrance Cable Sill Plate

Material: Aluminum Die-Cast

Category: Fittings

Sub Category: NMSE

Type(s): Sill Plate

Connection Type(s): Service Entrance Cable

Sill plates are used in conjunction with sealing compound to protect service entrance cable and cover the hole where it enters the building.

Supplied with mounting screws
Two mounting holes

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
40595	1	10	Boxed - Individual UPC

A	B	C	Volume
2.95	2.68	0.87

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Compression Connector

Material: Zinc-Plated Steel

Category: Fittings

Sub Category: Rigid

Type(s): Connector

Connection Type(s): Compression

Compression type connectors are used to secure and terminate threadless Rigid conduit or IMC to a steel outlet box or metal enclosure.

Concrete-tight

Product Info
Dimensions

Model Number	Retail Pack	Master Pack	Package Type
49050	1	25	Polybag
44050	2	5	Polybag
49051	1	10	Polybag
44051	2	5	Polybag
02-55052	1	5	Boxed - Individual UPC
02-55053	1	2	Boxed - Individual UPC
02-55054	1	2	Boxed - Individual UPC
02-55055	1	2	Boxed - Individual UPC

A	B	C	Volume
1.31	1.13	0.5

A	B	C	Volume
1.48	1.37	0.52

A	B	C	Volume
1.53	1.69	0.64

A	B	C	Volume
1.7	2.07	0.68

A	B	C	Volume
1.96	2.28	0.72

A	B	C	Volume
2.07	2.79	0.72

< Products

Compression Coupling

Material: Zinc-Plated Steel

Category: Fittings

Sub Category: Rigid

Type(s): Coupling

Connection Type(s): Compression

Compression type couplings are used to join two lengths of threadless Rigid conduit or IMC.

Concrete-tight

Product Info
Dimensions

Model Number	Retail Pack	Master Pack	Package Type
49060	1	5	Polybag
49061	1	5	Polybag
02-55062	1	5	Boxed - Individual UPC
02-55063	1	5	Boxed - Individual UPC
02-55064	1	5	Boxed - Individual UPC
02-55065	1	2	Boxed - Individual UPC

A	B	C	Volume
1.64	1.13	0.85

A	B	C	Volume
1.8	1.37	1.07

A	B	C	Volume
1.88	1.69	1.29

A	B	C	Volume
2.09	2.07	1.61

A	B	C	Volume
2.4	2.28	1.85

A	B	C	Volume
2.33	2.78	2.33

< Products

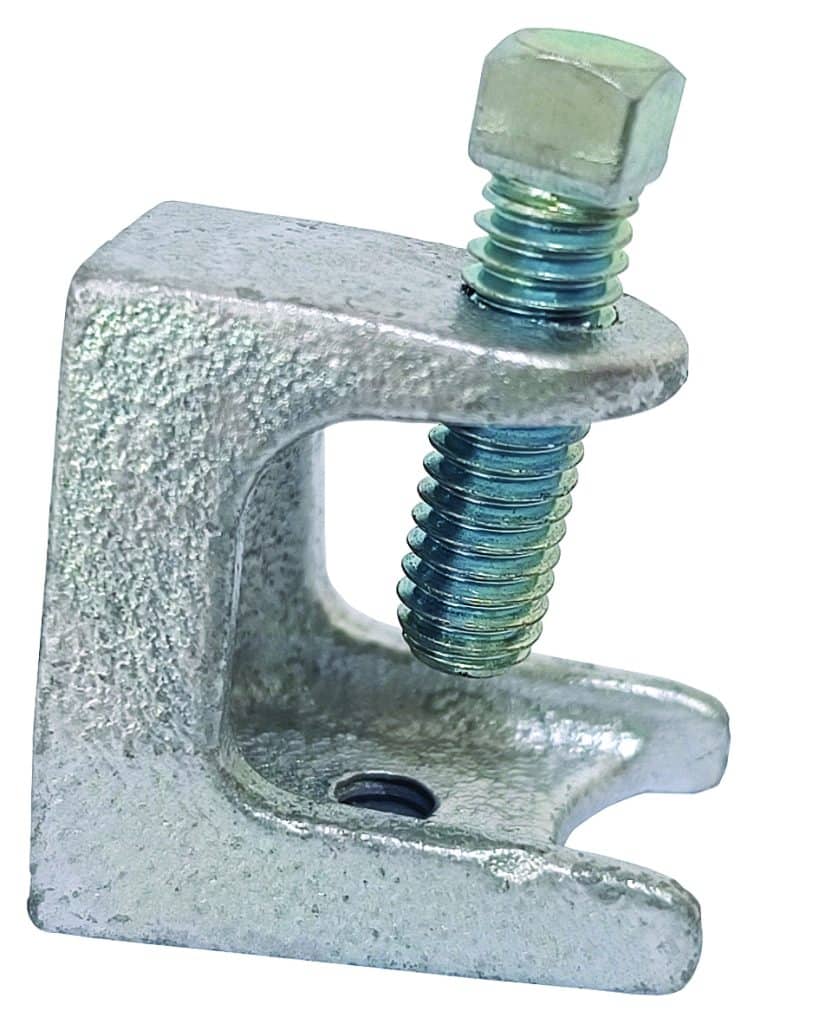

Beam Clamp

Material: Steel

Category: Fittings

Sub Category: Accessories

Type(s): Beam Clamp

Beam clamps are used on a beam, girder or other similar structure to provide a mounting base for conduit hangers.

Beam thickness 1/8″ – 1/2″
Threaded hole 1/4″ – 20

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49005	1	25	Polybag

A	B	C	Volume
1.4	1.63	0.92

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Conduit Sill Plate

Material: Aluminum Die-Cast

Category: Fittings

Sub Category: NMSE

Type(s): Sill Plate

Sill plates are used in conjunction with sealing compound to protect service entrance cable and to cover the hole where it enters the dwelling.

Supplied with mounting screws
For use with EMT conduit

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
40591	1	15	Polybag
40593	1	10	Polybag
40594	1	25	Polybag

A	B	C	Volume
2.6	2.35	0.79

A	B	C	Volume
3.01	2.53	1.26

A	B	C	Volume
3.78	2.61	1.57

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Cable Sill Plate

Material: Aluminum Die-Cast

Category: Fittings

Sub Category: NMSE

Type(s): Sill Plate

Connection Type(s): Cable

Sill plates are used in conjunction with sealing compound to protect service entrance cable and cover the hole where it enters the building.

Supplied with mounting screws
Four mounting holes

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
40599	1	4	Boxed - Individual UPC
40596	1	4	Boxed - Individual UPC

A	B	C	Volume
2.52	5.31	2.01

A	B	C	Volume
6.18	2.44	3.78

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Screw-In Coupling

Material: Zinc Die-Cast

Category: Fittings

Sub Category: Flex

Type(s): Coupling

Connection Type(s): Screw-In

Screw-in type couplings are used to join two lengths of FMC where minimum spacing between conduit is desired. For dry location applications.

Screws into conduit

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
18127	1	10	Polybag
49013	1	20	Polybag
56013	50	10	Bulk - No individual UPC
18128	1	10	Polybag
49014	1	25	Polybag
44014	5	20	Polybag
56014	25	10	Bulk - No individual UPC
02-56015	1	10	Boxed - Individual UPC
02-56016	1	10	Boxed - Individual UPC
02-56017	1	10	Boxed - Individual UPC
02-56018	1	10	Boxed - Individual UPC

A	B	C	Volume
1.79	0.92	0.2

A	B	C	Volume
2.11	1.13	0.22

A	B	C	Volume
2.42	1.36	0.31

A	B	C	Volume
2.76	1.75	0.31

A	B	C	Volume
3.07	2.11	0.31

A	B	C	Volume
3.28	2.67	0.31

UL: E155411
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Service Entrance Elbow Conduit Body – Type LB

Material: Aluminum Die-Cast

Category: Fittings

Sub Category: Rigid

Type(s): Conduit Body

Connection Type(s): 90 DegreeThreaded

Feature(s): Type LB

Service entrance ells are used for Rigid conduit or IMC to gain access to the interior of a raceway for wire pulling, inspection and maintenance.

Mounts flush against structures
Listed for use in wet locations
Assembled with removable cover and fiber gasket

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
02-51025	1	10	Polybag
02-51026	1	5	Polybag
02-51027	1	3	Polybag
02-51028	1	2	Polybag
02-51029	1	2	Polybag
02-51030	1	2	Polybag

A	B	C	Volume
3.15	1.19	1.45

A	B	C	Volume
3.57	1.52	1.77

A	B	C	Volume
4.18	1.75	1.97

A	B	C	Volume
5.39	2.19	2.44

A	B	C	Volume
6.1	2.36	2.44

A	B	C	Volume
6.61	2.87	2.93

UL: E121488
CSA: LR57925

Standards: UL 514A & UL 514B, CSA C22.2 No. 18.1-13 & CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Conduit Locknut

Material: Zinc-Plated Steel

Category: Fittings

Sub Category: Rigid

Type(s): Locknut

Conduit locknuts are used for securing Rigid conduit, IMC and other threaded connectors to a steel outlet box or metal enclosure.

Product Info
Dimensions

Model Number	Retail Pack	Master Pack	Package Type
49101	2	100	Polybag
47101	3	50	Polybag
45101	20	20	Polybag
55101	100	10	Bulk - No individual UPC
48102	2	50	Polybag
49102	2	100	Polybag
45102	20	20	Polybag
55102	100	10	Bulk - No individual UPC
47103	1	50	Polybag
49103	2	50	Polybag
55103	100	10	Bulk - No individual UPC
49104	1	50	Polybag
47104	2	18	Polybag
49105	1	25	Polybag
47105	2	15	Polybag
49106	1	25	Polybag
47106	2	25	Polybag
49107	1	10	Polybag
49108	1	10	Polybag

A	B	C	Volume
1.12	0.09	1

A	B	C	Volume
1.39	0.1	1.25

A	B	C	Volume
1.7	0.13	1.56

A	B	C	Volume
2.04	0.13	1.91

A	B	C	Volume
2.36	0.13	2.16

A	B	C	Volume
2.87	0.13	2.68

A	B	C	Volume
3.52	0.16	3.25

A	B	C	Volume
4.13	0.16	3.95

< Products

Screw-In Connector

Material: Zinc Die-Cast

Category: Fittings

Sub Category: Flex

Type(s): Connector

Connection Type(s): Screw-In

Screw-in type connectors are used to terminate FMC to a knockout in a dry location box or enclosure.

Screws into conduit

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49009	1	50	Polybag
42009	2	25	Polybag
18129	4	10	Polybag
56009	50	10	Bulk - No individual UPC
GC-38	50	2	Contractor Pack
49010	1	50	Polybag
18130	4	10	Polybag
44010	5	20	Polybag
56010	50	10	Bulk - No individual UPC
GC-50	50	2	Contractor Pack
49011	1	20	Polybag
18131	2	5	Polybag
56011	25	10	Bulk - No individual UPC
GC-75	25	2	Contractor Pack
02-56012	1	10	Boxed - Individual UPC
02-57013	1	10	Boxed - Individual UPC
02-57014	1	10	Boxed - Individual UPC
02-57015	1	10	Boxed - Individual UPC

A	B	C	Volume
1.28	0.92	0.46

A	B	C	Volume
1.35	0.92	0.41

A	B	C	Volume
1.61	1.13	0.39

A	B	C	Volume
1.93	1.36	0.54

A	B	C	Volume
2.13	1.75	0.61

A	B	C	Volume
2.32	2.11	0.63

A	B	C	Volume
2.56	2.67	0.76

UL: E155411
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Insulated Screw-In Connector

Material: Zinc Die-Cast

Category: Fittings

Sub Category: Flex

Type(s): Connector

Connection Type(s): Screw-In

Feature(s): Insulated

Screw-in type connectors are used to terminate FMC to a knockout in a dry location box or enclosure.

Screws into conduit
90° C rated throat insulator

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
69335	1	50	Polybag

A	B	C	Volume
1.36	0.92	0.46

UL: E155411
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Snap Lock® Screw-In Connector

Material: Zinc Die-Cast

Category: Fittings

Sub Category: Flex

Type(s): Connector

Connection Type(s): Screw-In

Feature(s): Snap Lock®

Snap Lock® screw-in type connectors are used to terminate FMC/RWFMC to a knockout in a dry location box or enclosure.

Faster installation with no locknut required
Screws into conduit

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49170	1	25	Polybag
42170	2	20	Polybag
GC-138	25	2	Contractor Pack
49171	1	25	Polybag

A	B	C	Volume
1.19	0.83	0.4

A	B	C	Volume
1.18	1.3	0.39

A	B	C	Volume
1.27	0.83	0.4

cULus: E155411

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Set Screw Connector

Material: Zinc-Plated Steel

Category: Fittings

Sub Category: EMT

Type(s): Connector

Connection Type(s): Set Screw

Set screw type connectors are used to secure and terminate EMT conduit to a knockout in a metal box or enclosure. For dry location applications.

Concrete-tight when taped
1-1/4″ to 3″ double set screw

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49510	1	25	Polybag
46510	5	30	Polybag
02-53516	50	2	Contractor Pack
49511	1	12	Polybag
46511	5	10	Polybag
02-53517	25	2	Contractor Pack
02-54512	1	20	Boxed - Individual UPC
02-54513	1	10	Boxed - Individual UPC
02-54514	1	5	Boxed - Individual UPC
02-54515	1	5	Boxed - Individual UPC

A	B	C	Volume
1.22	0.41	0.65

A	B	C	Volume
1.3	0.41	0.86

A	B	C	Volume
1.61	0.43	1.11

A	B	C	Volume
2.3	0.65	1.41

A	B	C	Volume
2.4	0.69	1.65

A	B	C	Volume
2.44	0.71	2.13

cULus: E210498

Standards: UL 514B, CSA C22.2 No. 18.3-12

< Products

Insulated Set Screw Connector

Material: Zinc-Plated Steel

Category: Fittings

Sub Category: EMT

Type(s): Connector

Connection Type(s): Set Screw

Feature(s): Insulated

Set screw type connectors are used to secure and terminate EMT conduit to a knockout in a metal box or enclosure. For dry location applications.

With 90°C rated insulator
Concrete-tight when taped
1-1/4″ to 2″ double set screw

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
69512	1	25	Polybag
69513	1	12	Polybag

A	B	C	Volume
1.22	0.41	0.65

A	B	C	Volume
1.3	0.41	0.86

cULus: E210498

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of reproductive harm from exposure to Bisphenol A (BPA).
See www.P65Warnings.ca.gov

< Products

Set Screw Coupling

Material: Zinc-Plated Steel

Category: Fittings

Sub Category: EMT

Type(s): Coupling

Connection Type(s): Set Screw

Set screw type couplings are used to join lengths of steel EMT conduit. For dry location applications.

Concrete-tight when taped
1-1/4″ to 3″ double set screw

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49520	1	25	Polybag
46520	5	25	Polybag
02-53518	50	2	Contractor Pack
49521	1	25	Polybag
46521	5	10	Polybag
02-53519	25	2	Contractor Pack
02-54522	1	15	Boxed - Individual UPC
02-54523	1	10	Boxed - Individual UPC
02-54524	1	5	Boxed - Individual UPC
02-54525	1	5	Boxed - Individual UPC

A	B	C	Volume
1.57	0.84	0.73

A	B	C	Volume
1.57	1.06	0.94

A	B	C	Volume
1.86	1.31	1.19

A	B	C	Volume
2.95	1.71	1.53

A	B	C	Volume
2.95	1.94	1.76

A	B	C	Volume
3.23	2.39	2.22

cULus: E210498

Standards: UL 514B, CSA C22.2 No. 18.3-12

< Products

Rain-Tight Compression Coupling

Material: Zinc-Plated Steel

Category: Fittings

Sub Category: EMT

Type(s): Coupling

Connection Type(s): Compression

Feature(s): Concrete-TightRain-Tight

Compression type couplings are used to join lengths of steel EMT conduit. For rain-tight and concrete-tight applications.

Concrete-tight
Rain-tight

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
02-54863	1	10	Boxed - Individual UPC
02-54864	1	5	Boxed - Individual UPC
02-54865	1	5	Boxed - Individual UPC

A	B	C	Volume
2.5	2.04

A	B	C	Volume
2.78	2.27

A	B	C	Volume
2.88	2.74

WARNING:
Risk of cancer and reproductive harm from exposure to Di(2-ethylhexyl)phthalate.
See www.P65Warnings.ca.gov

< Products

One-Hole Oval SE Strap

Material: Zinc-Plated Steel

Category: Fittings

Sub Category: NMSE

Type(s): Strap

Connection Type(s): One-Hole

Feature(s): Oval SE

One-hole straps are used to secure Oval SE cable as required by the National Electric Code (NEC).

Product Info
Dimensions

Model Number	Retail Pack	Master Pack	Package Type
49702	3	50	Polybag
41702	10	10	Polybag
41703	6	10	Polybag
49701	3	50	Polybag
41701	10	20	Polybag
41704	4	10	Polybag
49704	1	50	Polybag

A	B	C	Volume
1.95	0.57	0.61

A	B	C	Volume
2.5	1.02	0.82

A	B	C	Volume
1.71	0.57	0.51

A	B	C	Volume
2.81	0.98	0.93

< Products

Two-Hole Oval SE Strap

Material: Zinc-Plated Steel

Category: Fittings

Sub Category: NMSE

Type(s): Strap

Connection Type(s): Two-Hole

Feature(s): Oval SE

Two-hole straps are used to secure Oval SE cable as required by the National Electric Code (NEC).

Product Info
Dimensions

Model Number	Retail Pack	Master Pack	Package Type
43712	6	5	Polybag
49732	3	50	Polybag
44711	10	5	Polybag
43714	6	10	Polybag
49734	1	25	Polybag

A	B	C	Volume
2.81	0.75	0.6

A	B	C	Volume
2.7	0.75	0.4

A	B	C	Volume
3.63	0.75	0.91

< Products

Compression Connector

Material: Zinc-Plated Steel

Category: Fittings

Sub Category: EMT

Type(s): Connector

Connection Type(s): Compression

Feature(s): Concrete-Tight

Compression type connectors are used to secure and terminate steel EMT conduit to a knockout in a metal box or enclosure. For dry location applications.

Concrete-tight
2-1/2” and 3” also listed for Rigid conduit or IMC

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49030	1	10	Polybag
46030	5	20	Polybag
49031	1	12	Polybag
46031	5	10	Polybag
02-54532	1	20	Boxed - Individual UPC
02-54533	1	10	Boxed - Individual UPC
02-54534	1	5	Boxed - Individual UPC
02-54535	1	5	Boxed - Individual UPC

A	B	C	Volume
1.31	1.05	0.5

A	B	C	Volume
1.48	1.28	0.52

A	B	C	Volume
1.53	1.56	0.64

A	B	C	Volume
1.7	1.94	0.68

A	B	C	Volume
1.96	2.17	0.72

A	B	C	Volume
2.07	2.68	0.72

cULus: E210498

Standards: UL 514B, CSA C22.2 No. 18.3-12

< Products

Rain-Tight Compression Connector

Material: Zinc-Plated Steel

Category: Fittings

Sub Category: EMT

Type(s): Connector

Connection Type(s): Compression

Feature(s): Concrete-TightRain-Tight

Compression type connectors are used to secure and terminate steel EMT conduit to a knockout in a metal box or enclosure. For rain-tight and concrete-tight applications.

Concrete-tight
Rain-tight

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
02-54853	1	10	Boxed - Individual UPC
02-54854	1	5	Boxed - Individual UPC
02-54855	1	5	Boxed - Individual UPC

A	B	C	Volume
2.1	2.04	0.65

A	B	C	Volume
2.25	2.27	0.66

A	B	C	Volume
2.4	2.74	0.7

WARNING:
Risk of cancer and reproductive harm from exposure to Di(2-ethylhexyl)phthalate.
See www.P65Warnings.ca.gov

< Products

Compression Coupling

Material: Zinc-Plated Steel

Category: Fittings

Sub Category: EMT

Type(s): Coupling

Connection Type(s): Compression

Feature(s): Concrete-Tight

Compression type couplings are used to join lengths of steel EMT conduit. For dry location applications.

Concrete-tight

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49040	1	10	Polybag
46040	5	6	Polybag
49041	1	12	Polybag
46041	5	5	Polybag
02-54542	1	10	Boxed - Individual UPC
02-54543	1	10	Boxed - Individual UPC
02-54544	1	5	Boxed - Individual UPC
02-54545	1	5	Boxed - Individual UPC

A	B	C	Volume
1.64	0.72	1.05

A	B	C	Volume
1.8	0.94	1.28

A	B	C	Volume
1.88	1.18	1.56

A	B	C	Volume
2.09	1.54	1.94

A	B	C	Volume
2.4	1.75	2.17

A	B	C	Volume
2.33	2.22	2.68

cULus: E210498

Standards: UL 514B, CSA C22.2 No. 18.3-12

< Products

EMT-to-Rigid Coupling

Material: Zinc-Plated Steel

Category: Fittings

Sub Category: EMTRigid

Type(s): Coupling

Connection Type(s): Set Screw

Feature(s): Combination

Combination couplings are used to join a run of unthreaded Rigid conduit or IMC to EMT Conduit. For dry location applications.

Set screw type

Product Info
Dimensions

Model Number	Retail Pack	Master Pack	Package Type
55690	1	10	Boxed - Individual UPC
55690	1	10	Boxed - Individual UPC
55692	1	5	Boxed - Individual UPC
55692	1	5	Boxed - Individual UPC

A	B	C	Volume
2.2	0.9	0.72

A	B	C	Volume
2.66	1.06	0.92

< Products

SE Clamp Type Connector

Material: Zinc Die-Cast

Category: Fittings

Sub Category: NMSE

Type(s): Connector

Connection Type(s): Clamp Type

Clamp type connectors are used to terminate Oval SE cables to a knockout in a dry location box or enclosure.

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
44664	1	20	Polybag
44675	1	20	Polybag
44676	1	10	Polybag

A	B	C	Volume
1.31	2.26	0.59

A	B	C	Volume
1.33	2.85	0.62

A	B	C	Volume
1.57	3.5	0.72

UL: E155410
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Pipe Cap

Material: Zinc-Plated Steel

Category: Fittings

Sub Category: EMT

Type(s): Pipe Cap

EMT pipe caps are placed on the end of an EMT conduit run to temporarily seal out debris before wires are pulled.

1-1/4” to 2” double set screw

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
41581	1	20	Polybag
41582	1	12	Polybag
41583	1	10	Boxed - Individual UPC
41584	1	10	Boxed - Individual UPC
41585	1	5	Boxed - Individual UPC
41586	1	5	Boxed - Individual UPC

A	B	C	Volume
1.68	0.73	0.06

A	B	C	Volume
2.1	0.95	0.06

A	B	C	Volume
2.5	1.19	0.06

A	B	C	Volume
3.26	1.58	0.06

A	B	C	Volume
3.76	1.78	0.06

A	B	C	Volume
4	2.23	0.06

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Set Screw Connector

Material: Zinc Die-Cast

Category: Fittings

Sub Category: EMT

Type(s): Connector

Connection Type(s): Set Screw

Set screw type connectors are used to secure and terminate EMT conduit to a knockout in a metal box or enclosure. For dry location applications.

Concrete-tight when taped
1-1/4″ to 3″ double set screw
2-1/2” to 3” also approved for Rigid

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49230	1	50	Polybag
18121	3	10	Polybag
47230	3	20	Polybag
44230	5	20	Polybag
45230	10	12	Polybag
55230	50	10	Bulk - No Individual UPC
TC-501	50	5	Contractor Pack
49231	1	25	Polybag
18123	2	5	Polybag
44231	5	10	Polybag
55231	25	10	Bulk - No Individual UPC
TC-502	25	2	Contractor Pack
55232M	1	20	Polybag
02-55232	1	20	Polybag
55233M	1	5	Polybag
02-55233	1	9	Polybag
02-55234	1	4	Polybag
55234M	1	5	Polybag
55235M	1	5	Polybag
02-55235	1	6	Polybag
02-55236	1	5	Polybag
02-55237	1	2	Polybag

A	B	C	Volume
1.07	0.39	0.72

A	B	C	Volume
1.33	0.46	0.93

A	B	C	Volume
1.46	0.53	1.17

A	B	C	Volume
1.94	0.63	1.52

A	B	C	Volume
2.18	0.71	1.75

A	B	C	Volume
2.49	0.75	2.2

A	B	C	Volume
3.09	1.04	2.91

A	B	C	Volume
3.39	1.06	3.53

UL: E210498,E155411
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Insulated Set Screw Connector

Material: Zinc Die-Cast

Category: Fittings

Sub Category: EMT

Type(s): Connector

Connection Type(s): Set Screw

Feature(s): Insulated

Set screw type connectors are used to secure and terminate EMT conduit to a knockout in a metal box or enclosure. For dry location applications.

With 90° C rated insulator
Concrete-tight when taped
1-1/4″ to 2″ double set screw

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
67230	3	20	Polybag
65230	10	20	Polybag
55330M	50	1	Contractor Pack
64231	5	20	Polybag
55331M	25	1	Contractor Pack
65232	1	20	Boxed - Individual UPC
65233	1	25	Boxed - Individual UPC
65234	1	10	Boxed - Individual UPC
65235	1	10	Boxed - Individual UPC

A	B	C	Volume
1.14	0.39	0.72

A	B	C	Volume
1.41	0.46	0.93

A	B	C	Volume
1.53	0.53	1.17

A	B	C	Volume
2.02	0.63	1.52

A	B	C	Volume
2.25	0.71	1.75

A	B	C	Volume
2.55	0.75	2.2

UL: E210498
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Set Screw Coupling

Material: Zinc Die-Cast

Category: Fittings

Sub Category: EMT

Type(s): Coupling

Connection Type(s): Set Screw

Set screw type couplings are used to join lengths of steel EMT conduit. For dry location applications.

Concrete-tight when taped
1-1/4″ to 3″ double set screw
2-1/2” to 3” also approved for Rigid

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49240	1	50	Polybag
18122	2	10	Polybag
47240	3	20	Polybag
44240	5	20	Polybag
45240	10	10	Polybag
55240	50	10	Bulk - No Individual UPC
TC-511	50	2	Contractor Pack
49241	1	25	Polybag
18124	2	5	Polybag
44241	5	10	Polybag
55241	25	10	Bulk - No Individual UPC
TC-512	25	2	Contractor Pack
55242M	1	10	Polybag
02-55242	1	20	Polybag
55243M	1	5	Polybag
02-55243	1	12	Polybag
55244M	1	5	Polybag
02-55244	1	10	Polybag
55245M	1	5	Polybag
02-55245	1	10	Polybag
02-55246	1	5	Polybag
02-55247	1	2	Polybag

A	B	C	Volume
1.34	0.93	0.72

A	B	C	Volume
1.71	1.14	0.93

A	B	C	Volume
1.85	1.42	1.17

A	B	C	Volume
2.5	1.82	1.52

A	B	C	Volume
2.87	2.07	1.75

A	B	C	Volume
3.44	2.54	2.21

A	B	C	Volume
4.02	3.29	2.9

A	B	C	Volume
4.49	3.92	3.53

UL: E210498,E155411
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Snap Lock® Saddle Connector

Material: Zinc Die-Cast

Category: Fittings

Sub Category: Flex

Type(s): Connector

Connection Type(s): Saddle

Feature(s): Snap Lock®

Snap Lock® saddle connectors are used to terminate NM, AC or MC to a knockout in a dry location box or enclosure.

Faster installation with no locknut required

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49504	1	25	Polybag

A	B	C	Volume
1.65	1.04	0.93

cULus: E155411

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Switch Box Support

Material: Steel

Category: Fittings

Sub Category: Accessories

Type(s): Box Support

Switch box supports are used to attach an outlet box in drywall where there are no means of attaching the box to a structure.

Product Info
Dimensions

Model Number	Retail Pack	Master Pack	Package Type
49882	2	50	Polybag

A	B	C	Volume
5.13	2.88	0.02

< Products

Oval Service Entrance Head

Material: Aluminum Die-Cast

Category: Fittings

Sub Category: NMSE

Type(s): Service Entrance Head

Connection Type(s): Oval Type

Die-cast oval service entrance caps are used as a connecting point in an overhead service entrance for Oval SE cable.

Removable cap
Two piece phenolic insulator
Listed for use in dry locations

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
02-51200	1	5	Boxed - Individual UPC
02-51235	1	5	Boxed - Individual UPC

A	B	C	Volume
2.92	2.45	3.22

A	B	C	Volume
4.48	3.4	1.97

UL: E155410
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Clamp Type Connector

Material: Zinc Die-Cast

Category: Fittings

Sub Category: NMSE

Type(s): Connector

Connection Type(s): Clamp Type

Clamp type connectors are used to terminate NM Sheathed cable, Flexible Cord, Oval or Round SE cables to a knockout in a dry location box or enclosure.

Male hub threads NPS
Assembled with die cast locknut and zinc plated screws

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49650	1	100	Polybag
18051	4	10	Polybag
45650	10	20	Polybag
55650	100	10	Bulk - No Individual UPC
C-500	100	2	Contractor Pack
49660	1	50	Polybag
18104	2	10	Polybag
44660	3	20	Polybag
55660	50	10	Bulk - No Individual UPC
C-750	50	2	Contractor Pack
49663	1	20	Polybag
44663	2	20	Polybag
55663	25	10	Bulk - No Individual UPC
44694	1	20	Polybag
44695	1	20	Polybag
44696	1	20	Polybag

A	B	C	Volume
0.74	1.16	0.36

A	B	C	Volume
0.95	1.67	0.44

A	B	C	Volume
1.1	1.94	0.52

A	B	C	Volume
1.25	2.18	0.63

A	B	C	Volume
1.44	2.61	0.64

A	B	C	Volume
1.57	2.95	0.81

UL: E213494,E155410
CSA: LR57925

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Snap Lock® Clamp Type Connector

Material: Zinc Die-Cast

Category: Fittings

Sub Category: NMSE

Type(s): Connector

Connection Type(s): Clamp Type

Feature(s): Snap Lock®

Snap Lock® clamp type connectors are used to terminate NM Sheathed, Flexible Cord, Oval or Round SE cables to a knockout in a dry location box or enclosure. The Snap Lock® design requires no tools when attaching to the box for faster installation.

Faster installation – no locknut assembly
Assembled with die cast locknut and zinc plated screws

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
44655	2	25	Polybag
47655	10	10	Polybag
C-505	25	2	Contractor Pack
44665	2	15	Polybag

A	B	C	Volume
0.86	1.17	0.39

A	B	C	Volume
1	1.67	0.47

cULus: E213494

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Saddle Connector

Material: Zinc Die-Cast

Category: Fittings

Sub Category: Flex

Type(s): Connector

Connection Type(s): Saddle

Saddle connectors are used to terminate NM, AC or MC to a knockout in a dry location box or enclosure.

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49503	1	20	Polybag
44503	5	10	Polybag
55503	50	10	Polybag

A	B	C	Volume
0.9	1.61	0.9

cULus: E155411

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Ground Rod Clamp

Material: Copper Alloy

Category: Fittings

Sub Category: Grounding

Type(s): Clamp

Connection Type(s): Ground Rod

Ground rod clamps are used to connect bare copper conductors directly to a driven ground rod.

Suitable for direct burial in ground and concrete
Stainless steel screw

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49162	1	25	Polybag
49163	1	25	Polybag

A	B	C	Volume
0.83	0.64	1.2

A	B	C	Volume
0.94	0.66	1.34

cULus: E88878

Other: NEC Article 250

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Threaded Coupling

Material: Zinc-Plated Steel

Category: Fittings

Sub Category: Rigid

Type(s): Coupling

Connection Type(s): Threaded

Threaded couplings are used to join two lengths of threaded Rigid conduit or IMC.

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
02-55080	1	12	Boxed - Individual UPC
02-55081	1	12	Boxed - Individual UPC
02-55082	1	10	Boxed - Individual UPC
02-55083	1	5	Boxed - Individual UPC
02-55084	1	5	Boxed - Individual UPC
02-55085	1	4	Boxed - Individual UPC
02-55086	1	4	Boxed - Individual UPC

A	B	C	Volume
1.01	1.63

A	B	C	Volume
1.25	1.64

A	B	C	Volume
1.52	1.97

A	B	C	Volume
1.87	2.03

A	B	C	Volume
2.15	2.06

A	B	C	Volume
2.65	2.13

A	B	C	Volume
3.25	3.19

cULus: E468931

Standards: UL 6, CSA C22.2 No. 45.1-07

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Reducing Washer

Material: Zinc-Plated Steel

Category: Fittings

Sub Category: Rigid

Type(s): Washer

Connection Type(s): Reducing

Reducing washers are used to reduce the size of a knockout in a steel outlet box or metal enclosure. Two reducing washers are required for each knockout.

Embossed for self-centering

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49301	2	50	Polybag
18002	4	10	Polybag
55001	100	10	Bulk - No Individual UPC
49302	2	25	Polybag
18000	4	10	Polybag
49303	2	25	Polybag
18001	4	10	Polybag
49305	2	15	Polybag
18011	2	10	Polybag
49306	2	20	Polybag
49309	2	25	Polybag
18012	2	10	Polybag
49310	2	50	Polybag
49314	2	25	Polybag
49315	2	20	Polybag
49421	2	25	Polybag

A	B	C	Volume
0.87	1.44	0.04

A	B	C	Volume
0.87	1.75	0.04

A	B	C	Volume
1.11	1.75	0.04

A	B	C	Volume
1.11	2.19	0.04

A	B	C	Volume
1.37	2.19	0.04

A	B	C	Volume
1.37	2.44	0.04

A	B	C	Volume
1.72	2.44	0.04

A	B	C	Volume
1.72	3	0.04

A	B	C	Volume
1.98	3	0.04

A	B	C	Volume
2.46	3.5	0.04

cULus: E121487

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Threaded Nipple

Material: Zinc-Plated Steel

Category: Fittings

Sub Category: Rigid

Type(s): Nipple

Connection Type(s): Threaded

Threaded nipples are used to extend a length of threaded Rigid conduit or IMC. May also be used to connect two steel outlet boxes or metal enclosures together.

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
44360	2	10	Polybag
54251	1	25	Polybag
44370	2	8	Polybag
54254	1	25	Polybag
54258	1	25	Polybag
44361	2	8	Polybag
54261	1	25	Polybag
44371	2	5	Polybag
54264	1	25	Polybag
54268	1	25	Polybag
54270	1	10	Polybag
54274	1	10	Polybag
54280	1	10	Polybag
54281	1	25	Polybag
54284	1	10	Polybag
54364	1	6	Polybag
54290	1	10	Polybag
54365	1	4	Polybag
54300	1	10	Polybag
54304	1	6	Polybag
54306	1	5	Polybag
54366	1	5	Polybag
54309	1	2	Polybag
54355	1	2	Polybag
54326	1	2	Polybag

A	B	C	Volume
0.5	1.12

A	B	C	Volume
0.5	1.5

A	B	C	Volume
0.5	2

A	B	C	Volume
0.5	3

A	B	C	Volume
0.5	6

A	B	C	Volume
0.75	1.37

A	B	C	Volume
0.75	1.5

A	B	C	Volume
0.75	2

A	B	C	Volume
0.75	3

A	B	C	Volume
0.75	6

A	B	C	Volume
1	1.5

A	B	C	Volume
1	3

A	B	C	Volume
1.25	1.63

A	B	C	Volume
1.25	2

A	B	C	Volume
1.25	3

A	B	C	Volume
1.25	6

A	B	C	Volume
1.5	1.75

A	B	C	Volume
1.5	6

A	B	C	Volume
2	2

A	B	C	Volume
2	3

A	B	C	Volume
2	4

A	B	C	Volume
2	6

A	B	C	Volume
2	8

A	B	C	Volume
2	10

A	B	C	Volume
3	4

cULus: E468931

Standards: UL 6, CSA C22.2 No. 45.1-07

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

One-Hole Strap

Material: Zinc-Plated Steel

Category: Fittings

Sub Category: Rigid

Type(s): Strap

Connection Type(s): One-Hole

One-hole straps are used for providing support for Rigid conduit or IMC as required by the National Electrical Code (NEC).

Snap-on type

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
47900	3	25	Polybag
49900	4	25	Polybag
42900	5	25	Polybag
1801	50	2	Contractor Pack
49901	3	20	Polybag
42901	5	20	Polybag
1802	25	2	Contractor Pack
49902	1	20	Polybag
42902	2	15	Polybag
49903	1	25	Polybag
44903	4	5	Polybag
49904	1	25	Polybag
44904	2	5	Polybag
44905	2	5	Polybag
55905-S	1	25	Boxed - Individual UPC
55906-S	1	25	Boxed - Individual UPC
55907-S	1	25	Boxed - Individual UPC

A	B	C	Volume
1.85	0.63	0.91

A	B	C	Volume
2.2	0.75	1.13

A	B	C	Volume
2.6	0.88	1.33

A	B	C	Volume
2.95	0.89	1.65

A	B	C	Volume
3.62	1.02	1.91

A	B	C	Volume
4.09	1.14	2.32

A	B	C	Volume
4.09	1.14	2.32

A	B	C	Volume
5	1.25	2.75

A	B	C	Volume
5	1.25	2.75

A	B	C	Volume
5.53	1.25	3.6

Standards: UL 2239, CSA C22.2 No. 18.4-15

< Products

Two-Hole Strap

Material: Zinc-Plated Steel

Category: Fittings

Sub Category: Rigid

Type(s): Strap

Connection Type(s): Two-Hole

Two-hole straps are used for providing support for Rigid conduit or IMC as required by the National Electrical Code (NEC) where higher load bearing supports are desired.

Snap-on type
Approved for use with EMT / Rigid / IMC

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
47830	3	25	Polybag
49830	4	25	Polybag
42830	5	25	Polybag
51901	50	10	Bulk - No individual UPC
49831	3	20	Polybag
47831	4	20	Polybag
42831	5	20	Polybag
51902	50	10	Bulk - No individual UPC
49832	1	20	Polybag
42832	2	15	Polybag
49833	1	20	Polybag
42833	2	20	Polybag
44833	4	20	Polybag
49834	1	20	Polybag
44834	2	20	Polybag
49835	1	20	Polybag
44835	2	15	Polybag
51907	1	25	Boxed - Individual UPC
51908	1	25	Boxed - Individual UPC

A	B	C	Volume
2.48	0.62	0.87

A	B	C	Volume
2.91	0.69	0.98

A	B	C	Volume
3.37	0.75	1.3

A	B	C	Volume
4.09	0.89	1.61

A	B	C	Volume
4.41	0.94	1.91

A	B	C	Volume
5.12	1	2.31

A	B	C	Volume
6.06	1.1	2.96

A	B	C	Volume
6.46	1.1	3.58

cULus: E229278

Standards: UL 2239, CSA C22.2 No. 18.4-15

< Products

Reducing Bushing

Material: Zinc Die-Cast

Category: Fittings

Sub Category: Rigid

Type(s): Bushing

Connection Type(s): Reducing

Reducing bushings are used to reduce the entry size of threaded conduit to allow joining conduits of two different sizes.

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49001	1	25	Polybag
49002	1	25	Polybag
49003	1	25	Polybag

A	B	C	Volume
0.63	0.82	0.16

A	B	C	Volume
0.71	1	0.14

A	B	C	Volume
0.71	1	0.14

UL: E155411
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Ground Clamp with Lay-In Lug

Material: Copper Alloy

Category: Fittings

Sub Category: Grounding

Type(s): Clamp

Connection Type(s): Lay-In-Lug

Ground clamps with lay-in lug are used to connect a ground wire in Rigid conduit or Rebar to copper or galvanized steel water pipe.

Suitable for direct burial in ground and concrete

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
42309	1	20	Polybag

A	B	C	Volume
2.28	1.5	0.95

cULus: E88878

Standards: UL 467, CSA C22.2 No. 41
Other: NEC Article 250
Other: US Patent No. 6976857

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

90˚ Rigid Elbow

Material: Zinc-Plated Steel

Category: Fittings

Sub Category: Rigid

Type(s): Elbow

Connection Type(s): 90 Degree

90° rigid elbows are used to connect Rigid conduit or IMC together to allow for 90° bends.

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
02-55531PE	1	5	Polybag
02-55532PE	1	5	Polybag
02-55533PE	1	6	Polybag
02-55534PE	1	3	Polybag
02-55535PE	1	3	Polybag
02-55536PE	1	2	Polybag
55537-PE	1	1	Polybag
55538-PE	1	1	Polybag

A	B	C	Volume
4.02	6.38	1.5

A	B	C	Volume
4.49	7.44	1.5

A	B	C	Volume
5.75	8.84	1.89

A	B	C	Volume
7.24	10.12	2.01

A	B	C	Volume
8.27	11.94	2.01

A	B	C	Volume
9.49	14.08	2.01

A	B	C	Volume
10.5	16	5.25

A	B	C	Volume
13	18.95	5.81

cULus: E482671

Standards: UL 6, CSA C22.2 No. 45.1-07

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Standard Porcelain Wireholder

Material: Porcelain and Steel

Category: Fittings

Sub Category: NMSE

Type(s): Wireholder

Connection Type(s): Standard Porcelain

Porcelain wireholders are used in overhead services to support and secure incoming service entrance wires prior to entrance.

Product Info
Dimensions

Model Number	Retail Pack	Master Pack	Package Type
02-56030	1	5	Polybag

A	B	C	Volume
3.88	1.44	2.13

< Products

Ground Rod Clamp

Material: Copper Alloy

Category: Fittings

Sub Category: Grounding

Type(s): Clamp

Connection Type(s): Ground Rod

Ground rod clamps are used to connect bare copper conductors directly to a driven ground rod.

Suitable for direct burial in ground and concrete

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
18162	1	10	Polybag
18165	1	10	Polybag

A	B	C	Volume
0.83	0.64	1.2

A	B	C	Volume
0.94	0.66	1.34

cULus: E88878

Other: NEC Article 250

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Universal Ground Rod Clamp

Material: Copper Alloy

Category: Fittings

Sub Category: Grounding

Type(s): Clamp

Connection Type(s): Ground Rod

Feature(s): Universal

Ground rod clamps are used to connect bare copper conductors directly to a driven ground rod.

For steel rebar trade sizes 4 to 5
Suitable for direct burial in ground and concrete
Stainless steel screw

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49165	1	12	Polybag

A	B	C	Volume
1.06	0.63	1.63

cULus: E88878

Other: NEC Article 250

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

NM Cable Connector

Material: Non-Metallic

Category: Fittings

Sub Category: NMSE

Type(s): Connector

Connection Type(s): NM Cable

NM cable connectors are used to terminate NM Sheathed cable to a knockout in a dry location box or enclosure.

Easy snap-in construction
Wide variety of cable configurations

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
18740	6	10	Polybag
44740	10	20	Polybag
49740	1	100	Polybag
55740	100	5	Contractor Pack
49741	1	50	Polybag
44741	5	20	Polybag
55741	50	2	Contractor Pack

A	B	C	Volume
0.70	1.00

A	B	C	Volume
0.80	1.30

cULus: E213494

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of reproductive harm from exposure to Bisphenol A (BPA).
See www.P65Warnings.ca.gov

< Products

Adjustable Wireholder

Material: Porcelain and Steel

Category: Fittings

Sub Category: NMSE

Type(s): Wireholder

Connection Type(s): Adjustable

Porcelain wireholders are used in overhead services to support and secure incoming service entrance wires prior to entrance.

Clamp-on
Mounts below service entrance cap
Adjustable from 1-1/4” to 3”

Product Info
Dimensions

Model Number	Retail Pack	Master Pack	Package Type
02-56037	1	5	Boxed - Individual UPC

A	B	C	Volume
2.8	1.7	3.37

< Products

Heavy Duty Porcelain Wireholder

Material: Porcelain and Steel

Category: Fittings

Sub Category: NMSE

Type(s): Wireholder

Connection Type(s): Heavy Duty

Porcelain wireholders are used in overhead services to support and secure incoming service entrance wires prior to entrance.

Reinforced

Product Info
Dimensions

Model Number	Retail Pack	Master Pack	Package Type
02-56033	1	10	Polybag
02-56036	1	20	Polybag

A	B	C	Volume
5.26	1.54	2.5

A	B	C	Volume
3.33	1.54	0.5

< Products

90° Liquid-Tight Connector

Material: Non-Metallic

Category: Fittings

Sub Category: Liquid-Tight

Type(s): Connector

Connection Type(s): 90 Degree

90° liquid-tight connectors are used to terminate and seal Liquid-Tight Flexible Metal and/or
Non-Metallic Type B Conduits at 90° angles to an oil-tight, liquid-tight or rain-tight box or enclosure. Connectors can be used with tapered threaded female entry or unthreaded knockout using the provided sealing washer and locknut.

Furnished with sealing ring
For Non-Metallic Type B Conduit

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49490	1	20	Polybag
49491	1	20	Polybag
02-55492	1	10	Polybag

A	B	C	Volume
1.35	1.06	0.54

A	B	C	Volume
1.63	1.32	0.63

A	B	C	Volume
1.87	1.6	0.69

cCSAus: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

< Products

Straight Liquid-Tight Connector

Material: Non-Metallic

Category: Fittings

Sub Category: Liquid-Tight

Type(s): Connector

Connection Type(s): Straight

Straight liquid-tight connectors are used to terminate and seal Liquid-Tight Flexible Metal and/or Non-Metallic Type B Conduits to an oil-tight, liquid-tight or rain-tight box or enclosure. Connectors can be used with tapered threaded female entry or unthreaded knockout using the provided sealing washer and locknut.

Furnished with sealing ring
For Non-Metallic Type B Conduit

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49460	1	20	Polybag
49461	1	20	Polybag
02-55462	1	10	Polybag

A	B	C	Volume
2	1.4	0.54

A	B	C	Volume
2.17	1.68	0.68

A	B	C	Volume
2.24	2	0.69

cCSAus: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

< Products

NM Cable Connector

Material: Non-Metallic

Category: Fittings

Sub Category: NMSE

Type(s): Connector

Connection Type(s): NM Cable

NM cable connectors are used to terminate NM Sheathed cable or Flexible cord to a knockout in a dry location box or enclosure.

Easy snap-in construction
Wide variety of cable configurations

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
43840	5	10	Polybag
44840	10	20	Polybag
44841	6	20	Polybag

A	B	C	Volume
0.93	1.33	0.76

A	B	C	Volume
0.93	1.33	0.76

cULus: E213494

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of reproductive harm from exposure to Bisphenol A (BPA).
See www.P65Warnings.ca.gov

< Products

EMT-to-EMT Pull Elbow

Material: Zinc Die-Cast

Category: Fittings

Sub Category: EMT

Type(s): CouplingPull Elbow

Connection Type(s): 90 DegreeSet Screw

EMT-to-EMT pull elbows are used to facilitate pulling conductors through a 90° bend in two runs of steel EMT conduit. The removable cover gives ample access so that wire pulling can be achieved without any obstruction. For dry location applications.

Set screw type
Removable aluminum cover

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49561	1	10	Polybag
44561	2	20	Polybag
49562	1	10	Polybag
44562	2	5	Polybag
02-55563	1	10	Boxed - Individual UPC

A	B	C	Volume
1.31	1	0.92

A	B	C	Volume
1.37	1.27	1.17

A	B	C	Volume
1.95	1.57	1.46

UL: E155411
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Rigid-to-Box Pull Elbow

Material: Zinc Die-Cast

Category: Fittings

Sub Category: Rigid

Type(s): ConnectorPull Elbow

Connection Type(s): 90 DegreeThreaded

Rigid-to-box pull elbows are used to connect threaded Rigid conduit or IMC to a box where a 90° bend is required. They facilitate pulling conductors through the bend and the removable cover gives ample access so that wire pulling can be achieved without any obstructions.

Assembled with removable cover and gasket
Stamped aluminum cover
Rubber gasket

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49671	1	10	Polybag
49672	1	5	Polybag

A	B	C	Volume
1.31	1	0.92

A	B	C	Volume
1.37	1.27	1.17

UL: E155411
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Rigid-to-Rigid Pull Elbow

Material: Zinc Die-Cast

Category: Fittings

Sub Category: Rigid

Type(s): CouplingPull Elbow

Connection Type(s): 90 DegreeThreaded

Rigid-to-rigid pull elbows are used to facilitate pulling conductors through a 90° bend between two runs of threaded Rigid conduit or IMC. The removable cover gives ample access so that wire pulling can be achieved without any obstructions.

Assembled with removable cover and gasket
Stamped aluminum cover
Rubber gasket

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49681	1	10	Polybag
49682	1	10	Polybag
02-55683	1	10	Boxed - Individual UPC

A	B	C	Volume
1.31	1	0.92

A	B	C	Volume
1.37	1.27	1.17

A	B	C	Volume
1.95	1.57	1.46

UL: E155411
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Conduit-to-Box Combination Pull Elbow

Material: Zinc Die-Cast

Category: Fittings

Sub Category: EMTRigid

Type(s): ConnectorPull Elbow

Connection Type(s): 90 DegreeCombinationSet ScrewThreaded

Combination to box pull elbows are used to facilitate pulling conductors through a 90° bend in a run of IMC, Rigid or steel EMT conduit that terminates at a knockout in a metal box or enclosure. The removable cover gives ample access so that wire pulling can be achieved without any obstruction. For dry location applications.

Set screw for EMT and threaded for Rigid conduit or IMC
Removable aluminum cover and rubber gasket

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
46074	1	10	Polybag
46075	1	5	Polybag

A	B	C	Volume
1.31	1	0.92

A	B	C	Volume
1.37	1.27	1.17

UL: E155411
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Conduit-to-Conduit Combination Pull Elbow

Material: Zinc Die-Cast

Category: Fittings

Sub Category: EMTRigid

Type(s): CouplingPull Elbow

Connection Type(s): 90 DegreeCombinationSet ScrewThreaded

Combination pull elbows are used to facilitate pulling conductors through a 90° bend in two runs of IMC, Rigid or steel EMT conduit. The removable cover gives ample access so that wire pulling can be achieved without any obstruction. For dry location applications.

Set screw for EMT and threaded for Rigid conduit or IMC
Removable aluminum cover and rubber gasket

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
46077	1	10	Polybag
46078	1	10	Polybag

A	B	C	Volume
1.31	1	0.92

A	B	C	Volume
1.37	1.27	1.17

UL: E155411
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

EMT-to-Box Pull Elbow

Material: Zinc Die-Cast

Category: Fittings

Sub Category: EMT

Type(s): ConnectorPull Elbow

Connection Type(s): 90 DegreeSet Screw

EMT-to-box pull elbows are used to facilitate pulling conductors through a 90° bend in a run of steel EMT conduit that terminates at a knockout in a metal box or enclosure. The removable cover gives ample access so that wire pulling can be achieved without any obstruction. For dry location applications.

Set screw type
Removable aluminum cover

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49551	1	10	Polybag
55551	10	10	Bulk - No individual UPC
49552	1	10	Polybag
55552	5	10	Bulk - No individual UPC

A	B	C	Volume
1.31	1	0.92

A	B	C	Volume
1.34	0.93	0.72

A	B	C	Volume
1.37	1.27	1.17

A	B	C	Volume
1.71	1.14	0.93

UL: E155411
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Offset Nipple

Material: Zinc Die-Cast

Category: Fittings

Sub Category: Rigid

Type(s): Nipple

Connection Type(s): Offset

Offset nipples are used to provide an offset connection between two outlet boxes or metal enclosures.

3/4″ axis

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49020	1	20	Polybag
49021	1	10	Polybag
02-51522	1	10	Boxed - Individual UPC
51522M	1	10	Boxed - Individual UPC
02-51523	1	10	Boxed - Individual UPC
51523M	1	5	Boxed - Individual UPC
02-51524	1	5	Boxed - Individual UPC
51524M	1	5	Boxed - Individual UPC
02-51525	1	5	Boxed - Individual UPC
51525M	1	2	Boxed - Individual UPC

A	B	C	Volume
2.42	0.94	0.43

A	B	C	Volume
2.4	1.18	0.43

A	B	C	Volume
2.72	1.45	0.6

A	B	C	Volume
2.81	1.81	0.59

A	B	C	Volume
3.03	2.05	0.71

A	B	C	Volume
3.15	2.57	0.77

UL: E155411
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Plastic Insulating Bushing

Material: Non-Metallic

Category: Fittings

Sub Category: Rigid

Type(s): Bushing

Connection Type(s): Insulating

Plastic insulating bushings are used on the end of Rigid conduit, IMC and other threaded connectors to provide a smooth, well-rounded bearing surface to protect wires or cables.

Rated 105°C
Flame retardant

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49321	2	100	Polybag
47321	1	50	Polybag
55321	100	10	Bulk - No individual UPC
47322	1	50	Polybag
49322	2	50	Polybag
55322	100	10	Bulk - No individual UPC
49323	1	25	Polybag
55323	50	10	Bulk - No individual UPC
49324	1	25	Polybag
49325	1	25	Polybag
49326	1	25	Polybag
55326	50	1	Bulk - No individual UPC
49327	1	10	Polybag
49328	1	10	Polybag

A	B	C	Volume
1.05	0.36	0.6

A	B	C	Volume
1.29	0.4	0.78

A	B	C	Volume
1.63	0.49	1

A	B	C	Volume
1.93	0.48	1.3

A	B	C	Volume
2.18	0.48	1.52

A	B	C	Volume
2.64	0.54	1.95

A	B	C	Volume
3.25	0.63	2.33

A	B	C	Volume
3.9	0.68	2.9

cULus: E121487

Standards: UL 514B, CSA C22.2 No. 18
NEMA: NEMA FB-1

< Products

Insulating Bushing

Material: Non-Metallic

Category: Fittings

Sub Category: EMT

Type(s): Bushing

Connection Type(s): Insulating

Insulating bushings are used on the end of EMT conduit to provide a smooth, well-rounded bearing surface to protect wires or cables as required by the National Electric Code (NEC).

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
48200	4	10	Polybag
48202	4	10	Polybag

A	B	C	Volume
0.52	0.57

A	B	C	Volume
0.54	0.76

WARNING:
Risk of reproductive harm from exposure to Bisphenol A (BPA).
See www.P65Warnings.ca.gov

< Products

Nail Strap

Material: Zinc-Plated Steel

Category: Fittings

Sub Category: EMT

Type(s): Nail Strap

Nail straps are used to secure steel EMT conduit to wooden structure members. Can be used in place of one or two hole straps.

Product Info
Dimensions

Model Number	Retail Pack	Master Pack	Package Type
18600	10	10	Polybag
49600	3	50	Polybag
47600	4	75	Polybag
55600	100	2	Contractor Pack
18609	10	10	Polybag
49609	3	50	Polybag
47609	4	75	Polybag
55601	100	2	Contractor Pack
49610	2	50	Polybag

A	B	C	Volume
2	0.35

A	B	C	Volume
2.12	0.46

A	B	C	Volume
2.25	0.58

< Products

EMT-to-Box Offset Compression Connector

Material: Zinc Die-Cast

Category: Fittings

Sub Category: EMT

Type(s): Connector

Connection Type(s): CompressionOffset

Feature(s): Concrete-Tight

Compression type offset connectors are used to make a slight adjustment in terminating the end of a run of steel EMT conduit to a metal box or enclosure. For dry location applications.

Concrete-tight

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49706	1	20	Polybag
49707	1	20	Polybag

A	B	C	Volume
2.05	0.98	0.47

A	B	C	Volume
2.85	1.23	0.47

UL: E210498
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

EMT-to-Box Offset Set Screw Connector

Material: Zinc Die-Cast

Category: Fittings

Sub Category: EMT

Type(s): Connector

Connection Type(s): OffsetSet Screw

Set screw type offset connectors are used to make a slight adjustment in terminating the end of a run of steel EMT conduit to a metal box or enclosure. For dry location applications.

Concrete-tight when taped

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49006	1	20	Polybag
44006	2	20	Polybag
49007	1	12	Polybag
44007	2	5	Polybag
56008M	1	10	Boxed - Individual UPC

A	B	C	Volume
2.09	0.93	0.41

A	B	C	Volume
3.02	1.12	0.47

A	B	C	Volume
3.15	1.42	0.55

UL: E210498
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Nail Plate

Material: Zinc-Plated Steel

Category: Fittings

Sub Category: Accessories

Type(s): Nail Plate

Safety nail plates are used to protect cable insulation from nail punctures in wooden structures.

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
52053	1	100	Boxed - Individtual UPC
51053	100	1	Contractor Pack
51710	1	50	Boxed - Individtual UPC

A	B	C	Volume
2.5	1.5	0.06

A	B	C	Volume
5	1.5	0.06

cCSAus: 174008

< Products

Nail Plate

Material: Zinc-Plated Steel

Category: Fittings

Sub Category: Accessories

Type(s): Nail Plate

Safety nail plates are used to protect cable insulation from nail punctures in wooden structures.

Product Info
Dimensions

Model Number	Retail Pack	Master Pack	Package Type
18711	2	10	Polybag
SP-50	50	5	Bulk - No individual UPC

A	B	C	Volume
2.5	1.5	0.06

< Products

Nail Plate

Material: Zinc-Plated Steel

Category: Fittings

Sub Category: Accessories

Type(s): Nail Plate

Safety nail plates are used to protect cable insulation from nail punctures in wooden structures.

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
51710	1	50	Boxed - Individtual UPC
52053	1	100	Boxed - Individtual UPC
51053	100	1	Contractor Pack

A	B	C	Volume
5	1.5	0.06

A	B	C	Volume
2.5	1.5	0.06

cCSAus: 174008

< Products

Reducing Bushing

Material: Zinc-Plated Steel

Category: Fittings

Sub Category: Rigid

Type(s): Bushing

Connection Type(s): Reducing

Reducing bushings are used to reduce the entry size of threaded conduit to allow joining conduits of two different sizes.

Product Info
Dimensions

Model Number	Retail Pack	Master Pack	Package Type
49186	1	10	Polybag
49080	1	10	Polybag
59014	1	10	Boxed - Individual UPC

A	B	C	Volume
0.64	1.43	0.11

A	B	C	Volume
0.71	1.68	0.13

A	B	C	Volume
0.81	2.1	0.16

< Products

Service Entrance Heads – Mast Type

Material: Aluminum Die-Cast

Category: Fittings

Sub Category: NMSE

Type(s): Service Entrance Head

Connection Type(s): Mast Type

Service entrance caps are used as a connecting point in an overhead service entrance and can be mounted on threaded or unthreaded Rigid or IMC conduit.

Slip fit
Phenolic insulator with multiple holes
Listed for use in wet locations

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
02-51456	1	4	Boxed - Individual UPC
02-51458	1	2	Boxed - Individual UPC

A	B	C	Volume
2.66	3.72	3.14

A	B	C	Volume
3.12	4.57	4.2

UL: E121487
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

One-Hole NM Strap

Material: Zinc-Plated Steel

Category: Fittings

Sub Category: NMSE

Type(s): Strap

Connection Type(s): One-Hole

One-hole straps are used to secure NM Sheathed cable as required by the National Electric Code (NEC).

Product Info
Dimensions

Model Number	Retail Pack	Master Pack	Package Type
49700	3	50	Polybag
41700	10	20	Polybag

A	B	C	Volume
1.4	0.5	0.36

< Products

One-Hole Midget Strap

Material: Zinc-Plated Steel

Category: Fittings

Sub Category: GroundingNMSE

Type(s): Strap

Connection Type(s): One-Hole

Feature(s): Midget

One-hole midget straps are used to secure bare solid copper wire to a working surface as required by the National Electric Code (NEC).

For use in indoor and outdoor applications

Product Info
Dimensions

Model Number	Retail Pack	Master Pack	Package Type
44720	50	10	Polybag
44721	50	5	Polybag

A	B	C	Volume
0.67	0.3	0.19

A	B	C	Volume
0.98	0.5	0.21

< Products

90° Liquid-Tight Connector

Material: Zinc-Plated Iron

Category: Fittings

Sub Category: Liquid-Tight

Type(s): Connector

Connection Type(s): 90 Degree

Furnished with sealing ring
For Liquid-Tight Flexible Metal and Non-Metallic Type B Conduits

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
45763	1	15	Polybag
45764	1	10	Polybag
45765	1	5	Boxed - Individual UPC

A	B	C	Volume
1.25	1.13	0.53

A	B	C	Volume
1.58	1.31	0.53

A	B	C	Volume
1.84	1.64	0.66

cULus: E155411

Standards: UL 514B, CSA C22.2 No. 18

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Straight Liquid-Tight Connector

Material: Zinc-Plated Iron

Category: Fittings

Sub Category: Liquid-Tight

Type(s): Connector

Connection Type(s): Straight

Furnished with sealing ring
For Liquid-Tight Flexible Metal and Non-Metallic Type B Conduits

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
45760	1	15	Polybag
45761	1	10	Polybag
45762	1	5	Boxed - Individual UPC

A	B	C	Volume
1.69	1.14	0.53

A	B	C	Volume
1.78	1.38	0.53

A	B	C	Volume
1.95	1.61	0.66

cULus: E155411

Standards: UL 514B, CSA C22.2 No. 18

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Beam Clamp

Material: Zinc-Plated Iron

Category: Fittings

Sub Category: Accessories

Type(s): Beam Clamp

Beam clamps are used on a beam, girder or other similar structure to provide a mounting base for conduit hangers.

Beam thickness 1/8″ – 1/2″
Threaded hole 1/4″ – 20

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49004	1	25	Polybag

A	B	C	Volume
1.3	1.28	1

cULus: E229278

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Clamp Back and Strap

Material: Zinc-Plated Iron

Category: Fittings

Sub Category: Rigid

Type(s): Clamp BackStrap

Connection Type(s): One-Hole

Clamp backs and straps are used to secure and suspend IMC, Rigid or EMT conduit while providing space between the conduit and mounting surface.

Suitable for maximum 10 ft. support interval

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
55140	1	10	Polybag
55141	1	10	Polybag
55142	1	10	Polybag
55143	1	5	Polybag
55144	1	5	Polybag
55145	1	5	Polybag

A	B	C	Volume
2.3	1.05	0.96

A	B	C	Volume
2.44	1.17	1

A	B	C	Volume
3.02	1.27	1.31

A	B	C	Volume
3.53	1.59	1.72

A	B	C	Volume
3.91	1.61	2.06

A	B	C	Volume
4.8	1.95	2.49

UL: E229278
CSA: LR57925

Standards: UL 2239, CSA C22.2 No. 18

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Conduit Support

Material: Zinc-Plated Iron

Category: Fittings

Sub Category: NMSE

Type(s): Conduit Support

Conduit supports are used to secure conduit to the outside surface of a building.

Lag Screw Type
For Rigid, IMC or EMT conduit

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
02-56040	1	5	Boxed - Individual UPC
02-56041	1	5	Boxed - Individual UPC

A	B	C	Volume
5.27	2.4	4.27

A	B	C	Volume
5.68	2.4	4.86

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

90° Liquid-Tight Connector

Material: Zinc Die-Cast

Category: Fittings

Sub Category: Liquid-Tight

Type(s): Connector

Connection Type(s): 90 Degree

Furnished with sealing ring
For Liquid-Tight Flexible Metal and Non-Metallic Type B Conduits

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49470	1	10	Polybag
49471	1	10	Polybag
02-55472LT	1	10	Boxed - Individual UPC
02-55473LT	1	10	Boxed - Individual UPC
02-55474LT	1	4	Boxed - Individual UPC
02-55475LT	1	4	Boxed - Individual UPC

A	B	C	Volume
1.46	1.12	0.48

A	B	C	Volume
1.6	1.37	0.56

A	B	C	Volume
2.37	1.66	0.72

A	B	C	Volume
2.31	2.13	0.67

A	B	C	Volume
2.5	2.42	0.67

A	B	C	Volume
2.8	2.94	0.67

UL: E155411
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Conduit Body – Type T

Material: Aluminum Die-Cast

Category: Fittings

Sub Category: Rigid

Type(s): Conduit Body

Connection Type(s): 90 DegreeThreaded

Feature(s): Type T

Conduit bodies are used to gain access to the interior of a raceway for wire pulling, inspection and maintenance where the raceway changes direction.

Flat back design for easy mounting close to walls
Assembled with removable cover and gasket
Stamped aluminum cover

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
02-55641T	1	5	Boxed - Individual UPC
02-55642T	1	5	Boxed - Individual UPC
02-55643T	1	2	Boxed - Individual UPC
02-55644T	1	2	Boxed - Individual UPC
02-55645T	1	2	Boxed - Individual UPC
02-55646T	1	2	Boxed - Individual UPC

A	B	C	Volume
4.4	2.1	1.6

A	B	C	Volume
5.5	2.3	1.9

A	B	C	Volume
6.22	1.75	2.07

A	B	C	Volume
8.27	2.48	2.84

A	B	C	Volume
8.27	2.48	2.84

A	B	C	Volume
10.24	3.13	3.58

UL: E121488
CSA: LR57925

Standards: UL 514A & UL 514B, CSA C22.2 No. 18.1-13 & CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Straight Liquid-Tight Connector

Material: Zinc Die-Cast

Category: Fittings

Sub Category: Liquid-Tight

Type(s): Connector

Connection Type(s): Straight

Furnished with sealing ring
For Liquid-Tight Flexible Metal and Non-Metallic Type B Conduits

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49430	1	20	Polybag
49431	1	20	Polybag
02-55432LT	1	10	Boxed - Individual UPC
02-55433LT	1	10	Boxed - Individual UPC
02-55434LT	1	4	Boxed - Individual UPC
02-55435LT	1	4	Boxed - Individual UPC

A	B	C	Volume
1.37	1.22	0.51

A	B	C	Volume
1.45	1.43	0.51

A	B	C	Volume
1.78	1.75	0.68

A	B	C	Volume
1.98	2.23	0.68

A	B	C	Volume
1.97	2.48	0.66

A	B	C	Volume
1.95	2.98	0.66

UL: E155411
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Conduit Body – Type LL

Material: Aluminum Die-Cast

Category: Fittings

Sub Category: Rigid

Type(s): Conduit Body

Connection Type(s): 90 DegreeThreaded

Feature(s): Type LL

Conduit bodies are used to gain access to the interior of a raceway for wire pulling, inspection and maintenance where the raceway changes direction.

Flat back design for easy mounting close to walls
Assembled with removable cover and gasket
Stamped aluminum cover

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
02-55641LL	1	5	Boxed - Individual UPC
02-55642LL	1	3	Boxed - Individual UPC
02-55643LL	1	2	Boxed - Individual UPC
02-55644LL	1	2	Boxed - Individual UPC
02-55645LL	1	2	Boxed - Individual UPC
02-55646LL	1	2	Boxed - Individual UPC

A	B	C	Volume
4.4	2.1	1.6

A	B	C	Volume
5.1	2.3	1.9

A	B	C	Volume
5.8	1.75	2.07

A	B	C	Volume
7.76	2.48	2.84

A	B	C	Volume
7.76	2.48	2.84

A	B	C	Volume
9.84	3.13	3.59

UL: E121488
CSA: LR57925

Standards: UL 514A & UL 514B, CSA C22.2 No. 18.1-13 & CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Combination Conduit Body – Type LL/LR

Material: Aluminum Die-Cast

Category: Fittings

Sub Category: EMTRigid

Type(s): Conduit Body

Connection Type(s): 90 DegreeCombinationSet ScrewThreaded

Feature(s): Type LLType LR

Combination conduit bodies are used to gain access to the interior of a raceway for wire pulling, inspection and maintenance where the raceway changes direction. Pre-assembled with two covers and gaskets for configuration as LL or LR conduit body.

Combination type LL/LR
Set screw for EMT and threaded for Rigid conduit or IMC
Flat back design for easy mounting close to walls
Assembled with removable cover and gasket

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
02-55941LLR	1	5	Polybag
02-55942LLR	1	5	Polybag

A	B	C	Volume
4.4	1.94	2.07

A	B	C	Volume
5.07	2.18	2.29

cULus: E121488

Standards: UL 514A, CSA C22.2 No. 18.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Conduit Body – Type LR

Material: Aluminum Die-Cast

Category: Fittings

Sub Category: Rigid

Type(s): Conduit Body

Connection Type(s): 90 DegreeThreaded

Feature(s): Type LR

Conduit bodies are used to gain access to the interior of a raceway for wire pulling, inspection and maintenance where the raceway changes direction.

Flat back design for easy mounting close to walls
Assembled with removable cover and gasket
Stamped aluminum cover

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
02-55641LR	1	5	Boxed - Individual UPC
02-55642LR	1	3	Boxed - Individual UPC
02-55643LR	1	2	Boxed - Individual UPC
02-55644LR	1	2	Boxed - Individual UPC
02-55645LR	1	2	Boxed - Individual UPC
02-55646LR	1	2	Boxed - Individual UPC

A	B	C	Volume
4.4	2.1	1.6

A	B	C	Volume
5.1	2.3	1.9

A	B	C	Volume
5.8	1.75	2.07

A	B	C	Volume
7.76	2.48	2.84

A	B	C	Volume
7.76	2.48	2.84

A	B	C	Volume
9.84	3.13	3.59

UL: E121488
CSA: LR57925

Standards: UL 514A & UL 514B, CSA C22.2 No. 18.1-13 & CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Set Screw Conduit Body – Type LB

Material: Aluminum Die-Cast

Category: Fittings

Sub Category: EMT

Type(s): Conduit Body

Connection Type(s): 90 DegreeSet Screw

Feature(s): Type LB

Conduit bodies are used to gain access to the interior of a raceway for wire pulling, inspection and maintenance where the raceway changes direction. Pre-assembled with a cover and gasket. For dry location applications.

Type LB
Flat back design for easy mounting close to walls
Assembled with removable cover and rubber gasket

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
02-55841LB	1	5	Boxed - Individual UPC
02-55842LB	1	5	Boxed - Individual UPC

A	B	C	Volume
4.34	1.31	2.4

A	B	C	Volume
5.09	1.54	2.6

UL: E121488
CSA: LR57925

Standards: UL 514A & UL 514B, CSA C22.2 No. 18.1-13 & CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Conduit Body – Type C

Material: Aluminum Die-Cast

Category: Fittings

Sub Category: Rigid

Type(s): Conduit Body

Connection Type(s): Threaded

Feature(s): Type C

Conduit bodies are used to gain access to the interior of a raceway for wire pulling, inspection and maintenance where the raceway changes direction.

Flat back design for easy mounting close to walls
Assembled with removable cover and gasket
Stamped aluminum cover

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
02-55641C	1	5	Boxed - Individual UPC
02-55642C	1	5	Boxed - Individual UPC
02-55643C	1	2	Boxed - Individual UPC
02-55644C	1	2	Boxed - Individual UPC
02-55645C	1	2	Boxed - Individual UPC
02-55646C	1	2	Boxed - Individual UPC

A	B	C	Volume
4.8	1.3	1.6

A	B	C	Volume
5.5	1.5	1.9

A	B	C	Volume
6.22	1.75	2.07

A	B	C	Volume
8.27	2.48	2.84

A	B	C	Volume
8.27	2.48	2.84

A	B	C	Volume
10.24	3.13	3.59

UL: E121488
CSA: LR57925

Standards: UL 514A & UL 514B, CSA C22.2 No. 18.1-13 & CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Solderless Terminal Lug

Material: Electrolytic Copper

Category: Fittings

Sub Category: Accessories

Type(s): Solderless Terminal Lug

Solderless terminal lugs are used to connect wires to a metal enclosure.

One hole, single collar

Product Info
Dimensions

Model Number	Retail Pack	Master Pack	Package Type
02-18010	2	10	Polybag
02-18009	2	10	Polybag
02-18005	1	5	Polybag

A	B	C	Volume
0.31	0.47	0.15

A	B	C	Volume
0.51	1.57	0.35

A	B	C	Volume
0.75	2.1	0.48

< Products

Knockout Seal

Material: Zinc-Plated Steel

Category: Fittings

Sub Category: Accessories

Type(s): Knockout Seal

Knockout seals are used to close exposed holes in an outlet box or metal enclosure.

Product Info
Dimensions

Model Number	Retail Pack	Master Pack	Package Type
47150	1	100	Polybag
18150	4	10	Polybag
KO-50	100	5	Bulk - No individual UPC
52691	100	2	Contractor Pack
49151	1	50	Polybag
18151	4	10	Polybag
KO-75	100	5	Bulk - No individual UPC
52692	50	2	Contractor Pack
49152	1	25	Polybag
18152	4	10	Polybag
49153	1	25	Polybag
18153	4	5	Polybag
49154	1	15	Polybag
18154	4	5	Polybag
49155	1	12	Polybag
18155	2	10	Polybag

A	B	C	Volume
0.91	1.07	0.3

A	B	C	Volume
1.15	1.22	0.31

A	B	C	Volume
0.91	1.22	0.31

A	B	C	Volume
1.41	1.48	0.34

A	B	C	Volume
1.77	1.89	0.35

A	B	C	Volume
2.02	2.19	0.31

A	B	C	Volume
2.51	2.65	0.33

< Products

Conduit Body – Type LB

Material: Aluminum Die-Cast

Category: Fittings

Sub Category: Rigid

Type(s): Conduit Body

Connection Type(s): 90 DegreeThreaded

Feature(s): Type LB

Conduit bodies are used to gain access to the interior of a raceway for wire pulling, inspection and maintenance where the raceway changes direction.

Flat back design for easy mounting close to walls
Assembled with removable cover and gasket
Stamped aluminum cover

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
02-55641LB	1	10	Boxed - Individual UPC
02-55642LB	1	10	Boxed - Individual UPC
02-55643LB	1	5	Boxed - Individual UPC
02-55644LB	1	2	Boxed - Individual UPC
02-55645LB	1	2	Boxed - Individual UPC
02-55646LB	1	2	Boxed - Individual UPC
02-55647LB	1	1	Boxed - Individual UPC
02-55648LB	1	1	Boxed - Individual UPC

A	B	C	Volume
4.3	1.3	2.4

A	B	C	Volume
5	1.5	2.6

A	B	C	Volume
5.8	1.8	2.9

A	B	C	Volume
7.8	2.5	3.7

A	B	C	Volume
7.8	2.5	3.9

A	B	C	Volume
9.8	3.2	4.7

A	B	C	Volume
12.83	4.44	5.35

A	B	C	Volume
12.83	4.44	5.96

UL: E121488
CSA: LR57925

Standards: UL 514A & UL 514B, CSA C22.2 No. 18.1-13 & CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Mogul Conduit Body – Type LB

Material: Aluminum Die-Cast

Category: Fittings

Sub Category: Rigid

Type(s): Conduit Body

Connection Type(s): 90 DegreeThreaded

Feature(s): MogulType LB

Mogul conduit bodies are used to gain greater access to the interior of a raceway for wire pulling, inspection and maintenance where the raceway changes direction.

Meets NEC 6x requirement
Listed for use in wet locations
Assembled with removable cover and fiber gasket

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
02-51128	1	2	Boxed - Individual UPC
02-51129	1	1	Boxed - Individual UPC
02-51130	1	1	Boxed - Individual UPC

A	B	C	Volume
9.67	2.52	4.29

A	B	C	Volume
14.57	3.19	6.32

A	B	C	Volume
14.57	3.19	6.32

UL: E121488
CSA: LR57925

Standards: UL 514A & UL 514B, CSA C22.2 No. 18.1-13 & CSA C22.2 No. 18.3-12
Other: NEC Article 345 & 346

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Copper Intersystem Bonding Bridge with Conduit Adaptor

Material: Copper Alloy

Category: Fittings

Sub Category: Grounding

Type(s): Intersystem Bonding Bridge

IBBs are used in residential and commercial applications to ground up to 4 systems to a single location.

Meets NEC 2011 article 250.94
Lay-in lug style
Connection for up to 4 auxiliary
ground wires (1 more than NEC requirement)
Approved for solid or stranded copper conductors
Supplied with PVC adaptor for 1/2″ pipe
Stainless steel screws

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
42403	1	4	Polybag

A	B	C	Volume
4.33	1.58	1.39

cULus: E88878

Standards: UL 467, CSA C22.2 No. 41
Other: NEC Article 250.94

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Intersystem Bonding Bridge

Material: Zinc Die-Cast

Category: Fittings

Sub Category: Grounding

Type(s): Intersystem Bonding Bridge

IBBs are used in residential and commercial applications to ground up to 4 systems to a single location.

Meets NEC 2011 article 250.94
Lay-in lug style
Connection for up to 4 auxiliary
ground wires (1 more than NEC requirement)
Approved for solid or stranded copper conductors
Stainless steel screws
Non-metallic cover (not UL listed)

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
42400	1	6	Polybag

A	B	C	Volume
4.33	1.58	1.39

cULus: E88878

Standards: UL 467, UL 486A-486B, CSA C22.2 No. 41-13, CSA C22.2 No. 65-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Knockout Bushing

Material: Non-Metallic

Category: Fittings

Sub Category: Accessories

Type(s): Bushing

Connection Type(s): Knockout

Knockout bushings are snapped into knockout openings in metal boxes or enclosures to protect wires from rough edges.

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49391	1	75	Polybag
49392	1	50	Polybag

A	B	C	Volume
0.84	0.54

A	B	C	Volume
1.05	0.53

WARNING:
Risk of reproductive harm from exposure to Bisphenol A (BPA).
See www.P65Warnings.ca.gov

< Products

Insulated Grounding Bushing – Feed-Through Lug

Material: Zinc Die-Cast

Category: Fittings

Sub Category: Rigid

Type(s): Bushing

Connection Type(s): Feed-thruGrounding

Feature(s): Insulated

Insulated metallic grounding bushings are used on the end of Rigid conduit, IMC and other threaded connectors to provide a smooth well rounded bearing surface to protect wires or cables as well as provide a means to connect a grounding conductor.

Feed-through lug style
Includes nylon insulator rated 150°C
Aluminum Lug

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49381	1	10	Polybag
49382	1	10	Polybag
49383	1	10	Polybag
44384	1	10	Polybag
49385	1	10	Polybag
44386	1	10	Polybag
45386	2	5	Polybag
49387	1	10	Boxed - Individual UPC
49388	1	10	Boxed - Individual UPC

A	B	C	Volume
1.04	0.5	0.54

A	B	C	Volume
1.28	0.5	0.74

A	B	C	Volume
1.52	0.59	0.96

A	B	C	Volume
1.87	0.61	1.27

A	B	C	Volume
2.16	0.61	1.49

A	B	C	Volume
2.67	0.61	1.93

A	B	C	Volume
3.23	0.83	2.33

A	B	C	Volume
3.85	0.83	2.93

cULus: E88878

Standards: UL 467 & 486A-486B, CSA C22.2 No. 41-13 & CSA C22.2 No. 65-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Electrical Ground Code Tag

Material: Stamped Aluminum

Category: Fittings

Sub Category: Grounding

Type(s): Ground Code Tag

Ground code tags are installed on ground rods to comply with Chapter 86 of the Chicago Electrical Code.

Product Info
Dimensions

Model Number	Retail Pack	Master Pack	Package Type
55719M	1	100	Boxed - Individual UPC

A	B	C	Volume
3.63	1.75	0.16

< Products

Ground Wire

Material: Copper

Category: Fittings

Sub Category: Accessories

Type(s): Ground Wire

Ground wires are used to ground a wiring device to a switch or outlet box.

#12 AWG bare wire
Captive screw
8” length

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
18100	2	10	Polybag

A	B	C	Volume

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Insulated Set Screw Flex Connector

Material: Zinc Die-Cast

Category: Fittings

Sub Category: Flex

Type(s): Connector

Connection Type(s): Set Screw

Feature(s): Insulated

Set screw flex connectors are used to terminate FMC/RWFMC to a knockout in a dry location box or enclosure.

90° C rated throat insulator

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
69090	1	25	Polybag

A	B	C	Volume
0.96	1.55	0.4

UL: E155411
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Fixture Locknut

Material: Steel

Category: Fittings

Sub Category: Accessories

Type(s): Fixture Locknut

Fixture locknuts are used to secure a light fixture canopy.

Square
Heavy duty

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49099	2	50	Polybag

A	B	C	Volume
1	0.22

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Insulated Grounding Bushing – Lay-In Lug

Material: Zinc Die-Cast

Category: Fittings

Sub Category: Rigid

Type(s): Bushing

Connection Type(s): GroundingLay-In-Lug

Feature(s): Insulated

Lay-in lug style
Includes nylon insulator rated 150°C
Aluminum Lug

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
43381	1	10	Polybag
43382	1	10	Polybag
43383	1	10	Polybag
43384	1	10	Polybag
43385	1	10	Polybag
43386	1	10	Polybag

A	B	C	Volume
1.04	0.5	0.54

A	B	C	Volume
1.28	0.5	0.74

A	B	C	Volume
1.54	0.59	0.96

A	B	C	Volume
1.87	0.61	1.27

A	B	C	Volume
2.16	0.61	1.49

A	B	C	Volume
2.67	0.61	1.93

cULus: E88878

Standards: UL 467 & 486A-486B, CSA C22.2 No. 41-13 & CSA C22.2 No. 65-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Combination Connector

Material: Zinc Die-Cast

Category: Fittings

Sub Category: Flex

Type(s): Connector

Connection Type(s): Combination

Combination connectors are used to terminate AC, MC or FMC to a knockout in a dry location box or enclosure.

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49502	1	100	Polybag
44002	3	20	Polybag
42002	5	25	Polybag
C-510	100	2	Contractor Pack

A	B	C	Volume
0.74	1.16	0.36

UL: E155411
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Snap Lock® Combination Connector

Material: Zinc Die-Cast

Category: Fittings

Sub Category: Flex

Type(s): Connector

Connection Type(s): Combination

Feature(s): Snap Lock®

Combination connectors are used to terminate AC, MC or FMC/RWFMC to a knockout in a dry location box or enclosure.

Faster installation with no locknut required

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
42028	2	12	Polybag

A	B	C	Volume
0.77	0.91	0.39

cCSAus: 174008

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Set Screw Flex Connector

Material: Zinc Die-Cast

Category: Fittings

Sub Category: Flex

Type(s): Connector

Connection Type(s): Set Screw

Set screw flex connectors are used to terminate FMC/RWFMC to a knockout in a dry location box or enclosure.

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49090	1	12	Polybag
44090	3	20	Polybag
44091	3	5	Polybag

A	B	C	Volume
0.96	1.48	0.4

A	B	C	Volume
1.15	1.55	0.49

UL: E155411
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

90˚ EMT Elbow

Material: Zinc-Plated Steel

Category: Fittings

Sub Category: EMT

Type(s): Elbow

Connection Type(s): 90 Degree

90° elbows are used to connect steel EMT conduit together to allow for 90° bends.

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
02-55541PE	1	15	Polybag
02-55542PE	1	10	Polybag
02-55543PE	1	10	Polybag
02-55544PE	1	5	Polybag
02-55545PE	1	4	Polybag
02-55546PE	1	2	Polybag

A	B	C	Volume
0.71	4.02	6.25

A	B	C	Volume
0.92	4.49	7.06

A	B	C	Volume
1.16	5.75	9.25

A	B	C	Volume
1.51	7.24	10.5

A	B	C	Volume
1.74	8.27	12.63

A	B	C	Volume
2.2	9.49	14.25

cULus: E364687

Standards: UL 797, CSA C22.2 No. 83.1-07

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

One-Hole Strap

Material: Zinc-Plated Steel

Category: Fittings

Sub Category: EMT

Type(s): Strap

Connection Type(s): One-Hole

One-hole straps are used to provide support for steel EMT conduit as required by the National Electric Code (NEC).

Snap-on type

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
47920	3	50	Polybag
18071	5	10	Polybag
42950	5	40	Polybag
44920	10	20	Polybag
45920S	25	20	Polybag
55920-S	100	10	Polybag
1901	100	5	Contractor Pack
49921	3	25	Polybag
18072	4	10	Polybag
47921	4	25	Polybag
42951	5	25	Polybag
45921S	15	20	Polybag
43921	20	20	Polybag
55921-S	50	10	Polybag
1902	50	5	Contractor Pack
49922	1	15	Polybag
44922	4	20	Polybag
42952	5	20	Polybag
55922-S	25	10	Polybag
49923	1	25	Polybag
42953	2	20	Polybag
44923	4	20	Polybag
49924	1	25	Polybag
44924	2	20	Polybag
49925	1	15	Polybag
44925	2	8	Polybag

A	B	C	Volume
1.66	0.55	0.74

A	B	C	Volume
1.9	0.63	0.91

A	B	C	Volume
2.13	0.76	1.13

A	B	C	Volume
2.83	0.89	1.46

A	B	C	Volume
3.12	1	1.82

A	B	C	Volume
3.82	1.06	2.22

UL: E229278,

Standards: UL 2239, CSA C22.2 No. 18.4-15

< Products

Two-Hole Strap

Material: Zinc-Plated Steel

Category: Fittings

Sub Category: EMT

Type(s): Strap

Connection Type(s): Two-Hole

Two-hole straps are used to provide support for steel EMT conduit where higher load bearing supports are needed as required by the National Electric Code (NEC).

Snap-on type

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
47820	3	25	Polybag
49820	4	15	Polybag
18823	5	10	Polybag
42820	5	15	Polybag
40920	10	20	Polybag
41920	25	8	Polybag
51920	100	10	Bulk - No individual UPC
TH-1901	100	2	Contractor Pack
49821	3	25	Polybag
18824	4	10	Polybag
42821	5	20	Polybag
41921	15	20	Polybag
43821	20	20	Polybag
51921	50	10	Bulk - No individual UPC
TH-1902	50	2	Contractor Pack
49822	1	15	Polybag
41922	4	20	Polybag
42822	5	20	Polybag
51922	50	10	Bulk - No individual UPC
49823	1	25	Polybag
41923	4	20	Polybag
42823	5	15	Polybag
49824	1	25	Polybag
41924	2	20	Polybag
49825	1	25	Polybag
41925	2	20	Polybag

A	B	C	Volume
2.13	0.55	0.75

A	B	C	Volume
2.62	0.63	0.95

A	B	C	Volume
2.8	0.69	1.11

A	B	C	Volume
3.25	0.75	1.43

A	B	C	Volume
4.09	0.87	1.67

A	B	C	Volume
4.76	1	2.21

cULus: E229278

Standards: UL 2239, CSA C22.2 No. 18.4-15

< Products

Snap Lock® Compression Connector

Material: Zinc Die-Cast

Category: Fittings

Sub Category: EMT

Type(s): Connector

Connection Type(s): Compression

Feature(s): Concrete-TightRain-TightSnap Lock®

Snap Lock® compression type connectors are used to secure and terminate steel EMT conduit to a knockout in a metal box or enclosure. The patent-pending Snap Lock® design provides a faster installation allowing the EMT conduit to snap into the fitting without the use of tools. For wet or dry location applications.

Conduit snaps into connector
Concrete-tight
Rain-tight

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49032	1	25	Polybag
49033	1	15	Polybag

A	B	C	Volume
1.15	1.26	0.39

A	B	C	Volume
1.18	1.5	0.39

cULus: E210498

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Snap Lock® Compression Coupling

Material: Zinc Die-Cast

Category: Fittings

Sub Category: EMT

Type(s): Coupling

Connection Type(s): Compression

Feature(s): Concrete-TightRain-TightSnap Lock®

Snap Lock® compression type couplings are used to join lengths of steel EMT conduit without the use of tools. The patent pending Snap Lock® design provides a faster installation. For wet location applications.

Conduit snaps into coupling
Concrete-tight
Rain-tight

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49072	1	25	Polybag
49073	1	15	Polybag

A	B	C	Volume
1.35	1.26	0.81

A	B	C	Volume
1.43	1.5	1.03

cULus: E210498

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

45˚ EMT Elbow

Material: Zinc-Plated Steel

Category: Fittings

Sub Category: EMT

Type(s): Elbow

Connection Type(s): 45 Degree

45° elbows are used to connect steel EMT conduit together to allow for 45° bends.

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
02-55521PE	1	10	Boxed - Individual UPC
02-55522PE	1	10	Boxed - Individual UPC
02-55523PE	1	10	Boxed - Individual UPC
02-55524PE	1	8	Boxed - Individual UPC
02-55525PE	1	6	Boxed - Individual UPC
02-55526PE	1	4	Boxed - Individual UPC

A	B	C	Volume
0.5	4	3

A	B	C	Volume
0.75	4.5	3.62

A	B	C	Volume
1	5.75	4.33

A	B	C	Volume
1.25	7.25	5.15

A	B	C	Volume
1.5	8.25	6.74

A	B	C	Volume
2	9.5	7.12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Duplex Connector

Material: Zinc Die-Cast

Category: Fittings

Sub Category: Flex

Type(s): Connector

Connection Type(s): Duplex

Duplex connectors are used to terminate two runs of AC, MC or FMC/RWFMC to a knockout in a dry location box or enclosure.

Clamp type
Single screw

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
18630	1	5	Polybag
49630	1	20	Polybag

A	B	C	Volume
1.6	1.49	0.42

UL: E155411
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Double Snap Lock® Duplex Connector

Material: Zinc Die-Cast

Category: Fittings

Sub Category: Flex

Type(s): Connector

Connection Type(s): Duplex

Feature(s): Double Snap Lock®Snap Lock®

Double Snap Lock® duplex connectors are used to terminate two runs of AC, MC or FMC/RWFMC to a knockout in a dry location box or enclosure. The patented Double Snap Lock® design provides a faster installation.

No tools required
Robust insulator will not fall out

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49635	1	12	Polybag

A	B	C	Volume
2.1	1.49	0.4

cULus: E155411

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Snap Lock® Duplex Connector

Material: Zinc Die-Cast

Category: Fittings

Sub Category: Flex

Type(s): Connector

Connection Type(s): Duplex

Feature(s): Snap Lock®

Snap Lock® duplex connectors are used to terminate two runs of AC, MC or FMC/RWFMC to a knockout in a dry location box or enclosure.

Faster installation with no locknut required

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49631	1	12	Polybag

A	B	C	Volume
1.64	1.45	0.41

cULus: E155411

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Ground Clamp for Direct Burial

Material: Copper Alloy

Category: Fittings

Sub Category: Grounding

Type(s): Clamp

Connection Type(s): Direct Burial

Ground clamps are used to connect bare or insulated copper wire to copper or galvanized steel water pipe.

Suitable for direct burial in ground and concrete
Stainless steel screws

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
41310	1	10	Polybag

A	B	C	Volume
2.25	1.38	0.63

UL: E88878
CSA: LR57925

Standards: UL 467, CSA C22.2 No. 41
Other: NEC Article 250

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Ground Clamp

Material: Zinc Die-Cast

Category: Fittings

Sub Category: Grounding

Type(s): Clamp

Connection Type(s): Bare Wire

Ground clamps are used to connect bare or insulated copper wire to copper or galvanized steel water pipe.

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
18160	1	10	Polybag
49160	1	25	Polybag

A	B	C	Volume
2.24	1.34	0.63

UL: E88878
CSA: LR57925

Standards: UL 467, UL 486A-486B, CSA C22.2 No. 41-13, CSA C22.2 No. 65-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Strain Relief Cord Grip Connector

Material: Zinc Die-Cast

Category: FittingsStrain Relief

Sub Category: Accessories

Type(s): Connector

Connection Type(s): Cord GripStraight

Feature(s): with Mesh

Strain relief cord grip connectors are used to connect cord to an outlet box or metal enclosure. They reduce strain on the cables when subject to vibration and motion.

Indoor commercial and industrial applications

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49222	1	6	Polybag
49223	1	6	Polybag

A	B	C	Volume
7.87	1.78	1.12

A	B	C	Volume
9.25	1.93	1.36

UL: E121487
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Strain Relief Cord Grip Connector

Material: Non-Metallic

Category: FittingsStrain Relief

Sub Category: Accessories

Type(s): Connector

Connection Type(s): Cord GripStraight

Feature(s): with Mesh

Strain relief cord grip connectors are used to connect cord to an outlet box or metal enclosure. They reduce strain on the cables when subject to vibration and motion.

Indoor commercial and industrial applications
NEMA 6P rated

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49224	1	6	Polybag
49225	1	6	Polybag

A	B	C	Volume
8.27	2.3	1.3

A	B	C	Volume
8.5	2.59	1.55

cCSAus: 174008

Standards: UL 514B, CSA C22.2 No. 18.3-12
NEMA: NEMA 6P rated

WARNING:
Risk of cancer and reproductive harm from exposure to Di(2-ethylhexyl)phthalate.
See www.P65Warnings.ca.gov

< Products

Clamp-On Service Entrance Head

Material: Aluminum Die-Cast

Category: Fittings

Sub Category: NMSE

Type(s): Service Entrance Head

Connection Type(s): Clamp-On

Service entrance heads are used as a connecting point in an overhead service entrance and can be mounted on threaded or unthreaded Rigid, IMC or EMT conduit.

Clamp-on type
Phenolic insulator with multiple holes
Listed for use in wet locations

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
02-51251	1	10	Polybag
02-51252	1	10	Polybag
02-51253	1	5	Polybag
02-51254	1	2	Polybag
02-51255	1	2	Polybag
02-51256	1	3	Polybag
02-51257	1	2	Polybag
02-51258	1	1	Polybag

A	B	C	Volume
2.25	2.22	1.93

A	B	C	Volume
2.48	2.51	2.2

A	B	C	Volume
2.75	2.85	2.55

A	B	C	Volume
3.12	2.9	2.98

A	B	C	Volume
3.75	3.68	3.18

A	B	C	Volume
4.34	5.28	4.61

A	B	C	Volume
5.59	10.59	6.14

A	B	C	Volume
6.38	10.71	6.14

UL: E121487
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

EMT-to-Flex Coupling

Material: Zinc Die-Cast

Category: Fittings

Sub Category: EMTFlex

Type(s): Coupling

Connection Type(s): CompressionScrew-In

Feature(s): Combination

Combination couplings are used to provide a transition from steel EMT conduit to Flexible Metal Conduit. For dry location applications.

Compression type

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49289	1	15	Polybag
55289	50	10	Bulk - No individual UPC
49290	1	10	Polybag
55290	25	10	Bulk - No individual UPC
49291	1	5	Polybag
55291	25	10	Bulk - No individual UPC

A	B	C	Volume
1.4	0.98	0.15

A	B	C	Volume
1.52	1.23	0.21

A	B	C	Volume
1.99	1.52	0.31

UL: E155411
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

EMT-to-Flex Coupling

Material: Zinc Die-Cast

Category: Fittings

Sub Category: EMTFlex

Type(s): Coupling

Connection Type(s): Set ScrewSqueeze

Feature(s): Combination

Combination couplings are used to provide a transition from steel EMT conduit to Flexible Metal Conduit. For dry location applications.

Set screw type EMT connection
Squeeze type Flex connection

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49280	1	15	Polybag
55280	25	10	Polybag
49281	1	10	Polybag
55281	25	10	Polybag

A	B	C	Volume
0.72	0.93	1.53

A	B	C	Volume
0.93	1.16	1.91

UL: E210498
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

EMT-to-NM Combination Coupling

Material: Zinc Die-Cast

Category: Fittings

Sub Category: EMTNMSE

Type(s): Coupling

Connection Type(s): ClampSet Screw

Feature(s): Combination

Combination couplings are used to provide a transition from steel EMT conduit to NM cable. For dry location applications.

Set screw type EMT connection
Clamp type NM connection

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49279	1	25	Polybag
44279	2	20	Polybag
57003	50	10	Polybag
57003M	50	2	Contractor Pack

A	B	C	Volume
0.72	0.93	1.34

UL: E210498
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Conduit Nipple

Material: Zinc Die-Cast

Category: Fittings

Sub Category: Rigid

Type(s): Nipple

Conduit nipples are used in conjunction with locknuts to provide a short raceway between two outlet boxes or metal enclosures.

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49202	1	25	Polybag
49203	1	10	Polybag
49204	1	25	Polybag
49205	1	12	Polybag
49206	1	10	Polybag
49209	1	10	Polybag
02-57208	1	2	Boxed - Individual UPC

A	B	C	Volume
0.93	0.59	0.44

A	B	C	Volume
1.19	0.71	0.5

A	B	C	Volume
1.39	0.84	0.62

A	B	C	Volume
1.75	0.88	0.63

A	B	C	Volume
2.13	0.91	0.63

A	B	C	Volume
2.55	1.02	0.72

A	B	C	Volume
3.22	1.44	1.04

UL: E155411
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Inside Corner Pull Elbow

Material: Zinc Die-Cast

Category: Fittings

Sub Category: EMT

Type(s): CouplingPull Elbow

Connection Type(s): 90 DegreeInside CornerSet Screw

Inside corner pull elbows are used to facilitate pulling conductors through a 90° bend in a run of steel EMT conduit where it is essential to make tight turns within limited available space.

Set screw type
Concrete-tight when taped
Removable cover

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49591	1	10	Polybag
44591	2	20	Polybag
49592	1	10	Polybag
44592	2	5	Polybag

A	B	C	Volume
1.8	0.93	0.72

A	B	C	Volume
2	1.13	0.93

UL: E155411
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Cord Grip Connector

Material: Zinc Die-Cast

Category: FittingsStrain Relief

Sub Category: Accessories

Type(s): Connector

Connection Type(s): Cord GripStraight

Strain relief cord grip connectors are used to connect S, SO, ST, SJ, SJO and SJT cord to an outlet box or metal enclosure.,Cord grip connectors are used to connect S, SO, ST, SJ, SJO and SJT cord to an outlet box or metal enclosure.

Water-tight when used in conjunction with a sealing locknut (not included)

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49210	1	10	Polybag
49211	1	10	Polybag
44211	2	20	Polybag
49212	1	10	Polybag
49214	1	10	Polybag
49215	1	10	Polybag

A	B	C	Volume
1.19	0.5	0.39

A	B	C	Volume
1.29	0.78	0.41

UL: E121487
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Conduit Hanger

Material: Zinc-Plated Steel

Category: Fittings

Sub Category: AccessoriesEMTRigid

Type(s): Conduit Hanger

Conduit hangers are used to secure and suspend EMT and Rigid conduits from overhead supports.

Carriage bolt and nut attached

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49100	1	50	Polybag
44100	5	20	Polybag
52100	50	10	Bulk - No Individual UPC
54100	25	2	Contractor Pack
49110	1	30	Polybag
44110	5	20	Polybag
52110	100	1	Bulk - No Individual UPC
54110	20	2	Contractor Pack
49120	1	20	Polybag
44120	2	20	Polybag
52120	100	1	Bulk - No Individual UPC
49130	1	12	Polybag
52130	100	1	Bulk - No Individual UPC
49135	1	20	Polybag
44140	2	20	Polybag
49140	1	20	Boxed - Individtual UPC
44150	2	20	Polybag
49145	1	20	Boxed - Individtual UPC
52155	1	25	Polybag
52156	1	10	Polybag

A	B	C	Volume
1.95	0.76	0.69

A	B	C	Volume
2.21	0.76	0.81

A	B	C	Volume
2.53	0.87	0.92

A	B	C	Volume
2.73	0.87	0.98

A	B	C	Volume
3.32	0.96	1.1

A	B	C	Volume
3.32	0.96	1.1

A	B	C	Volume
4.06	0.96	1.12

A	B	C	Volume
4.83	1.18	1.26

A	B	C	Volume
5.31	1.18	1.26

cULus: E229278

Standards: UL 2239, CSA C22.2 No. 18.4-15

< Products

Compression Coupling

Material: Zinc Die-Cast

Category: Fittings

Sub Category: EMT

Type(s): Coupling

Connection Type(s): Compression

Feature(s): Concrete-Tight

Compression type couplings are used to join lengths of steel EMT conduit. For dry location applications.

Concrete-tight
2-1/2″ to 3″ also approved for Rigid

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49260	1	10	Polybag
18022	3	5	Polybag
44260	5	6	Polybag
TC-611	50	2	Contractor Pack
49261	1	12	Polybag
18024	2	5	Polybag
44261	5	5	Polybag
TC-612	25	2	Contractor Pack
55262M	1	10	Polybag
02-55262	1	10	Polybag
55263M	1	5	Polybag
02-55263	1	5	Polybag
55264M	1	5	Polybag
02-55264	1	5	Polybag
55265M	1	5	Polybag
02-55265	1	5	Polybag
02-55066	1	2	Polybag
02-55266	1	5	Polybag
02-55267	1	2	Polybag

A	B	C	Volume
1.7	0.98	0.72

A	B	C	Volume
1.19	0.98	0.38

A	B	C	Volume
1.78	1.23	0.94

A	B	C	Volume
1.29	1.22	0.41

A	B	C	Volume
1.81	1.52	1.19

A	B	C	Volume
2.12	1.85	1.53

A	B	C	Volume
2.42	2.15	1.76

A	B	C	Volume
2.47	2.59	2.22

A	B	C	Volume
3.41	3.29	2.9

A	B	C	Volume
3.6	3.97	3.55

UL: E210498
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Rain-Tight Compression Coupling

Material: Zinc Die-Cast

Category: Fittings

Sub Category: EMT

Type(s): Coupling

Connection Type(s): Compression

Feature(s): Concrete-TightRain-Tight

Compression type couplings are used to join lengths of steel EMT conduit. For rain-tight and concrete-tight applications.

Concrete-tight
Rain-tight

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49860	1	50	Polybag
49861	1	25	Polybag
02-55862	1	10	Boxed - Individual UPC

A	B	C	Volume
1.75	1.02	0.7

A	B	C	Volume
1.81	1.28	0.93

A	B	C	Volume
2.07	1.52	1.18

cULus: E210498

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Ground Clamp for Direct Burial

Material: Copper Alloy

Category: Fittings

Sub Category: Grounding

Type(s): Clamp

Connection Type(s): Direct Burial

Ground clamps are used to connect bare or insulated copper wire to copper or galvanized steel water pipe.

Suitable for direct burial in ground and concrete
Bronze screws

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
41313	1	10	Polybag

A	B	C	Volume
2.25	1.38	0.63

UL: E88878
CSA: LR57925

Standards: UL 467, CSA C22.2 No. 41
Other: NEC Article 250

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Compression Connector

Material: Zinc Die-Cast

Category: Fittings

Sub Category: EMT

Type(s): Connector

Connection Type(s): Compression

Feature(s): Concrete-Tight

Compression type connectors are used to secure and terminate steel EMT conduit to a knockout in a metal box or enclosure. For dry location applications.

Concrete-tight
2-1/2″ to 3″ also approved for Rigid

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49250	1	50	Polybag
18021	3	10	Polybag
44250	5	15	Polybag
55250	50	10	Bulk - No Individual UPC
TC-601	50	2	Contractor Pack
49251	1	25	Polybag
18023	2	5	Polybag
44251	5	5	Polybag
55251	25	10	Bulk - No Individual UPC
TC-602	25	2	Contractor Pack
55252M	1	10	Polybag
02-55252	1	10	Polybag
55253M	1	5	Polybag
02-55253	1	8	Polybag
55254M	1	5	Polybag
02-55254	1	5	Polybag
55255M	1	5	Polybag
02-55255	1	5	Polybag
02-55256	1	5	Polybag
02-55257	1	2	Polybag

A	B	C	Volume
1.19	0.98	0.38

A	B	C	Volume
1.29	1.22	0.41

A	B	C	Volume
1.48	1.52	0.55

A	B	C	Volume
1.7	1.85	0.61

A	B	C	Volume
1.86	2.15	0.62

A	B	C	Volume
2.13	2.59	0.76

A	B	C	Volume
2.62	3.15	1.02

A	B	C	Volume
2.7	3.97	1.04

UL: E210498
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Insulated Compression Connector

Material: Zinc Die-Cast

Category: Fittings

Sub Category: EMT

Type(s): Connector

Connection Type(s): Compression

Feature(s): Concrete-TightInsulated

Compression type connectors are used to secure and terminate steel EMT conduit to a knockout in a metal box or enclosure. For dry location applications.

With 90° C rated insulator
Concrete-tight

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
69250	1	50	Polybag
64250	5	20	Polybag
55350	50	2	Contractor Pack
69251	1	25	Polybag
64251	5	5	Polybag
55351	25	2	Contractor Pack
65525	1	10	Boxed - Individual UPC
65253	1	8	Boxed - Individual UPC
65254	1	5	Boxed - Individual UPC
65255	1	5	Boxed - Individual UPC

A	B	C	Volume
1.19	0.98	0.38

A	B	C	Volume
1.29	1.22	0.41

A	B	C	Volume
1.48	1.52	0.55

A	B	C	Volume
1.7	1.85	0.61

A	B	C	Volume
1.86	2.15	0.62

A	B	C	Volume
2.13	2.59	0.76

UL: E210498
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Rain-Tight Compression Connector

Material: Zinc Die-Cast

Category: Fittings

Sub Category: EMT

Type(s): Connector

Connection Type(s): Compression

Feature(s): Concrete-TightRain-Tight

Compression type connectors are used to secure and terminate steel EMT conduit to a knockout in a metal box or enclosure. For rain-tight and concrete-tight applications.

Concrete-tight
Rain-tight

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49850	1	50	Polybag
49851	1	25	Polybag
02-55852	1	10	Boxed - Individual UPC

A	B	C	Volume
1.31	1.02	0.38

A	B	C	Volume
1.34	1.26	0.4

A	B	C	Volume
1.48	1.5	0.55

cULus: E210498

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Ground Clamp for Armored Wire

Material: Copper Alloy

Category: Fittings

Sub Category: Grounding

Type(s): Clamp

Connection Type(s): Armored Wire

Ground clamps are used to connect bare or armored copper wire to galvanized steel water pipe. Pressure bar grips armored wire insulation to decrease chances of grounding conductor being pulled out. Can be used with copper ground rod.

For copper rod 1/2″-1″

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
41409	1	12	Polybag

A	B	C	Volume
2.25	1.35	0.67

UL: E88878
CSA: LR57925

Standards: UL 467, CSA C22.2 No. 41
Other: NEC Article 250

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Ground Clamp with Hub

Material: Copper Alloy

Category: Fittings

Sub Category: Grounding

Type(s): Clamp

Connection Type(s): with Hub

Ground clamps with hub are used to connect a ground wire in Rigid conduit to copper or galvanized steel water pipe.

1/2″ threaded hub mounts to Rigid conduit or IMC
With zinc-plated steel screws

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
44509	1	20	Polybag

A	B	C	Volume
2.25	1.26	2.04

UL: E88878
CSA: LR57925

Standards: UL 467, CSA C22.2 No. 41
Other: NEC Article 250

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Double Snap Lock® Cut-In Connector

Material: Zinc Die-Cast

Category: Fittings

Sub Category: Flex

Type(s): Connector

Connection Type(s): Cut-In

Feature(s): Double Snap Lock®Snap Lock®

Double Snap Lock® cut-in connectors are used to terminate AC, MC or FMC/RWFMC to a knockout in an old work (cut-in) dry location box or enclosure. The Double Snap Lock® design provides a faster installation.

No tools required
Flush mount inside the box
Robust insulator will not fall out

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
45510	2	12	Polybag

A	B	C	Volume
1.54	1.11	1.1

cULus: E155411

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

One-Hole Flex Strap

Material: Zinc-Plated Steel

Category: Fittings

Sub Category: Flex

Type(s): Strap

Connection Type(s): One-Hole

One-hole flex straps are used to provide support for runs of AC or MC as required by the National Electric Code (NEC).

Snap-on type

Product Info
Dimensions

Model Number	Retail Pack	Master Pack	Package Type
47919	3	50	Polybag
44919	10	20	Polybag
55919M	100	2	Contractor Pack
55919	100	2	Contractor Pack

A	B	C	Volume
1.12	0.5	0.53

< Products

Ground Clamp

Material: Copper Alloy

Category: Fittings

Sub Category: Grounding

Type(s): Clamp

Connection Type(s): Bare Wire

Ground clamps are used to connect bare or insulated copper wire to copper or galvanized steel water pipe.

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
41309	1	20	Polybag
41311	1	6	Polybag
51313	1	4	Boxed - Individual UPC

A	B	C	Volume
2.25	1.38	0.63

A	B	C	Volume
3.56	2.13	0.72

A	B	C	Volume
6.34	3.65	0.97

UL: E88878
CSA: LR57925

Standards: UL 467, CSA C22.2 No. 41
Other: NEC Article 250

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Ground Clamp with Strap

Material: Copper Alloy

Category: Fittings

Sub Category: Grounding

Type(s): Clamp

Connection Type(s): with Strap

Ground clamps with strap are used to connect a ground wire in Rigid conduit or IMC to copper or galvanized steel water pipe.

7″ copper strap protects conduit system from the effects of vibrations in water system
Threaded hub mounts to Rigid conduit or IMC
Copper strap

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
51510	1	10	Boxed - Individual UPC
51511	1	10	Boxed - Individual UPC

A	B	C	Volume
2.25	7.04	1.38

A	B	C	Volume
2.25	7.25	1.38

UL: E88878
CSA: LR57925

Standards: UL 467, CSA C22.2 No. 41
Other: NEC Article 250

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Double Snap Lock® AC/MC Connector

Material: Zinc Die-Cast

Category: Fittings

Sub Category: Flex

Type(s): Connector

Connection Type(s): AC/MC

Feature(s): Double Snap Lock®Snap Lock®

Double Snap Lock® AC/MC connectors are used to terminate AC, MC or FMC/RWFMC to a knockout in a dry location box or enclosure. The patented Double Snap Lock® design provides a faster installation.

No tools required
Robust insulator will not fall out

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
42505	5	10	Polybag
45505	2	12	Polybag
C-570	25	2	Contractor Pack

A	B	C	Volume
1.45	0.76	0.39

cULus: E155411

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Snap Lock® AC/MC Connector

Material: Zinc Die-Cast

Category: Fittings

Sub Category: Flex

Type(s): Connector

Connection Type(s): AC/MC

Feature(s): Snap Lock®

AC/MC connectors are used to terminate AC or MC to a knockout in a dry location box or enclosure.

Faster installation with no locknut required

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
42502	5	10	Polybag
45502	2	12	Polybag
C-560	25	2	Contractor Pack

A	B	C	Volume
0.87	0.94	0.4

cULus: E155411

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Double Snap Lock® AC/MC Connector – Steel

Material: Zinc-Plated Steel

Category: Fittings

Sub Category: Flex

Type(s): Connector

Connection Type(s): AC/MC

Feature(s): Double Snap Lock®Snap Lock®

Double Snap Lock® AC/MC connectors are used to terminate AC, MC or FMC/RWFMC to a knockout in a dry location box or enclosure. The patented Double Snap Lock® design provides a faster installation.

No tools required
Robust insulator will not fall out

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
45065	2	12	Polybag

A	B	C	Volume
1.42	0.79	0.39

cULus: E155411

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of reproductive harm from exposure to Bisphenol A (BPA).
See www.P65Warnings.ca.gov

< Products

1/2″ Box Holder

Material: Zinc Die-Cast

Category: Weatherproof

Sub Category: Accessories

Type(s): Box Holder

Box holders are used to support 1/2″ Rigid conduit to a box or metal enclosure with 1/2″ threaded knockouts.

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
14011	1	12	Polybag

A	B	C	Volume
1.71	1.14

cULus: E229278

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Box Spacer

Material: Zinc Die-Cast

Category: Fittings

Sub Category: Rigid

Type(s): Box Spacer

Box spacers are used for providing a raceway between two steel outlet boxes or metal enclosures by connecting either side by side or back to back.

Locknuts included

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49207	1	15	Polybag
44201	3	20	Polybag
49208	1	10	Polybag
44202	3	5	Polybag

A	B	C	Volume
1.12	0.31	0.62

A	B	C	Volume
1.12	0.3	0.82

UL: E155411
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

AC/MC Connector

Material: Zinc Die-Cast

Category: Fittings

Sub Category: Flex

Type(s): Connector

Connection Type(s): AC/MC

AC/MC connectors are used to terminate AC or MC to a knockout in a dry location box or enclosure.

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49501	1	100	Polybag
18058	4	10	Polybag
45501	10	15	Polybag
C-550	100	5	Contractor Pack

A	B	C	Volume
0.79	0.63	0.37

cULus: E155411

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Double Snap Lock® 90˚ Squeeze Connector

Material: Zinc Die-Cast

Category: Fittings

Sub Category: Flex

Type(s): Connector

Connection Type(s): 90 DegreeSqueeze

Feature(s): Double Snap Lock®InsulatedSnap Lock®

Double Snap Lock® 90° squeeze connectors are used to terminate AC, MC or FMC/RWFMC to a knockout in a metal box or enclosure where a 90° bend is required. The patented Double Snap Lock® design provides a faster installation. For dry location applications.

No tools required for installation
90° C rated throat insulator
Patented design

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49815	2	6	Polybag
49816	1	12	Polybag

A	B	C	Volume
1.37	1.73

A	B	C	Volume
1.68	2.06

cULus: E155411

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Insulated 90˚ Squeeze Connector

Material: Zinc Die-Cast

Category: Fittings

Sub Category: Flex

Type(s): Connector

Connection Type(s): 90 DegreeSqueeze

Feature(s): Insulated

90° squeeze connectors are used to terminate AC, MC or FMC/RWFMC to a knockout in a metal box or enclosure where a 90° bend is required. For dry location applications.

90° C rated throat insulator
Assembled with die-cast locknut and zinc plated steel screws

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
69801	1	50	Polybag
69804	1	20	Polybag
69806	1	20	Polybag

A	B	C	Volume
1.18	1.3	0.46

A	B	C	Volume
1.51	1.63	0.51

A	B	C	Volume
1.65	1.89	0.51

UL: E155411
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Two Piece Connector

Material: Zinc-Plated Steel

Category: Fittings

Sub Category: NMSE

Type(s): Connector

Connection Type(s): Two Piece

Two piece clamp type connectors are used to terminate one or more NM Sheathed or SE cables to a knockout in a dry location box or enclosure. Also used in old work locations.

No locknut required
Butterfly Style

Product Info
Dimensions

Model Number	Retail Pack	Master Pack	Package Type
49652	1	50	Polybag
44652	5	5	Polybag
49654	1	50	Polybag
44654	5	5	Polybag

A	B	C	Volume
1.32	0.94	0.47

A	B	C	Volume
1.73	1.22	0.63

< Products

Anti-Short Bushing

Material: Non-Metallic

Category: Fittings

Sub Category: Flex

Type(s): Bushing

Connection Type(s): Anti-Short

Anti-short bushings are inserted into the end of AC or FMC in order to protect the conductors from the sharp edges of the raceway where cut.

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
02-55035	35	20	Polybag
02-55036	35	20	Polybag
02-55037	35	20	Polybag
02-55038	20	10	Polybag
02-55039	16	10	Polybag

A	B	C	Volume
0.39	0.35

A	B	C	Volume
0.45	0.41

A	B	C	Volume
0.59	0.54

A	B	C	Volume
0.78	0.73

A	B	C	Volume
0.99	0.94

cULus: E121487

< Products

90° Set Screw Connector

Material: Zinc Die-Cast

Category: Fittings

Sub Category: EMT

Type(s): Connector

Connection Type(s): 90 DegreeSet Screw

90° set screw type connectors are used to secure and terminate steel EMT conduit to a knockout in a metal box or enclosure where a 90° bend is required. For dry location applications.

Concrete-tight when taped

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49047	1	25	Polybag
44047	2	20	Polybag
44048	2	5	Polybag

A	B	C	Volume
1.43	1.19	0.48

A	B	C	Volume
1.47	1.42	0.54

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

90˚ Squeeze Connector

Material: Zinc Die-Cast

Category: Fittings

Sub Category: Flex

Type(s): Connector

Connection Type(s): 90 DegreeSqueeze

90° squeeze connectors are used to terminate AC, MC or FMC/RWFMC to a knockout in a metal box or enclosure where a 90° bend is required. For dry location applications.

Assembled with die-cast locknut and zinc plated steel screws

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49801	1	50	Polybag
44801	2	20	Polybag
55801M	50	2	Contractor Pack
49804	1	20	Polybag
55804	25	10	Polybag
55804M	25	2	Contractor Pack
49806	1	6	Polybag
55806	10	10	Polybag
02-55807	1	10	Polybag
02-55808	1	10	Polybag
02-55809	1	4	Polybag
02-55810	1	4	Polybag

A	B	C	Volume
1.18	1.29	0.39

A	B	C	Volume
1.51	1.63	0.44

A	B	C	Volume
1.65	1.89	0.43

A	B	C	Volume
2.13	2.3	0.53

A	B	C	Volume
3.01	2.7	0.59

A	B	C	Volume
4.8	3.59	0.71

A	B	C	Volume
4.8	3.59	0.71

UL: E155411
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

90° Compression Connector

Material: Zinc Die-Cast

Category: Fittings

Sub Category: EMT

Type(s): Connector

Connection Type(s): 90 DegreeCompression

Feature(s): Concrete-Tight

90° compression type connectors are used to secure and terminate steel EMT conduit to a knockout in a metal box or enclosure where a 90° bend is required. For dry location applications.

Concrete-tight

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
49057	1	10	Polybag
44057	2	20	Polybag
49058	1	10	Polybag
44058	2	5	Polybag
02-56059	1	10	Boxed - Individual UPC

A	B	C	Volume
1.35	0.98	0.51

A	B	C	Volume
1.47	1.23	0.52

A	B	C	Volume
2.17	1.52	0.68

UL: E155411
CSA: LR57925

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Snap-In Flex Connector

Material: Zinc-Plated Steel

Category: Fittings

Sub Category: Flex

Type(s): Connector

Connection Type(s): Snap-In

Snap-in connectors are used to terminate AC, MC or FMC/RWFMC to a knockout in a dry location box or enclosure.

No tools required when connecting to box
Insulated

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
44440	3	10	Polybag
AMC-50	50	2	Contractor Pack
44441	2	10	Polybag
AMC-75	25	2	Contractor Pack

A	B	C	Volume
1.33	0.98	1.72

A	B	C	Volume
1.65	1.34	2.02

cULus: E155411

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of reproductive harm from exposure to Bisphenol A (BPA).
See www.P65Warnings.ca.gov

< Products

Duplex Snap-In Flex Connector

Material: Zinc-Plated Steel

Category: Fittings

Sub Category: Flex

Type(s): Connector

Connection Type(s): DuplexSnap-In

Duplex snap-in connectors are used to terminate two runs of AC, MC or FMC/RWFMC to a knockout in a dry location box or enclosure.

No tools required when connecting to box
Insulated

Product Info
Dimensions
Listing

Model Number	Retail Pack	Master Pack	Package Type
44450	2	12	Polybag

A	B	C	Volume
1.66	1.76	0.89

cULus: E155411

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of reproductive harm from exposure to Bisphenol A (BPA).
See www.P65Warnings.ca.gov

< Products

Lampholder

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Lighting

Type(s): Lampholder

Lampholders are used in conjunction with weatherproof boxes and covers for outdoor lighting applications.

Fits 1/2″ knockouts
Adjustable
150-Watt (max.) PAR38 bulb required (not included)
Includes lampholder and gasket

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	14330BR	20	031857343309
Gray	14330	20	031857143305
White	14330WH	20	031857643300

A	B
2.09	3.57

UL: E195204
CSA: LR57925

Standards: UL 1598, CSA C22.2 No. 250.0-08

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

Lampholder

Material: Non-Metallic

Category: Weatherproof

Sub Category: Lighting

Type(s): Lampholder

Lampholders are used in conjunction with weatherproof boxes and covers for outdoor lighting applications.

Fits 1/2″ knockouts
Adjustable
150-Watt (max.) PAR38 bulb required (not included)
Includes lampholder and gasket

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14360	20	031857143602
White	14360WH	20	031857643607

A	B
2.14	3.69

cULus: E163827

Standards: UL 1598, CSA C22.2 No. 250.0-08

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

LED Light

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Lighting

Type(s): LED

LED lights are used in conjunction with weatherproof boxes and covers for outdoor lighting applications.

10 watts and 800 lumens
Brightness equivalent to 60W Incandescent or 20W CFL
Natural daylight (5000 K) appearance
Fits 1/2″ knockouts
Tool-free adjustable lamp head
Includes lamp head, LED bulb and lens

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	14337BR	4	031857343378
Gray	14337	4	031857143374
White	14337WH	4	031857643379

A	B
3.34	2.74

cULus: E470512

Standards: UL 1598 & UL 8750, CSA C22.2 No. 250.0-08 & CSA C22.2 No. 250.13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

Two-Gang While-In-Use Receptacle Cover

Material: Non-Metallic

Category: Weatherproof

Sub Category: Cover

Type(s): 2-Gang

Connection Type(s): While-In-Use

Feature(s): Extra Duty Rated

Two-gang in-use receptacle covers allow two receptacles to be utilized while the cover is closed in wet, damp or dry locations.

55 configurations
Each side is adaptable for GFCI, duplex, round and switch devices
3-1/8″ deep
Lockable
Meets NEMA 3R and NEC’s “Extra Duty” Requirement
Includes adaptor plates, pre-installed gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Clear	14426CL	4	031857544263
Bronze	14426BR	4	031857344269
Gray	14426	4	031857144265

A	B	C
6.02	5.63	3.5

cULus: E332841
cCSAus: 174008

Standards: UL 514D, CSA C22.2 No. 42.1-13
NEMA: NEMA 3R
Other: NEC 2020 Extra Duty

WARNING:
Risk of reproductive harm from exposure to Bisphenol A (BPA).
See www.P65Warnings.ca.gov

Installation Instructions

< Products

One-Gang While-In-Use Receptacle Cover

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Cover

Type(s): 1-Gang

Connection Type(s): While-In-Use

Feature(s): Extra Duty RatedHorizontalVertical

One-gang in-use receptacle covers allow an outlet to be utilized while the cover is closed in wet, damp or dry locations.

16 configurations
Adaptable for GFCI, duplex, round and switch devices
2-1/4″ deep
For vertical or horizontal installation
Lockable
Meets NEMA 3R and NEC’s “Extra Duty” Requirement
Includes adaptor plates, pre-installed gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14434	4	031857144340

A	B	C
5.98	4.02	2.64

cULus: E121488
cCSAus: 174008

Standards: UL 514D, CSA C22.2 No. 42.1-13
NEMA: NEMA 3R
Other: NEC 2020 Extra Duty

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

Two-Gang While-In-Use Receptacle Cover

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Cover

Type(s): 2-Gang

Connection Type(s): While-In-Use

Feature(s): Extra Duty Rated

Two-gang in-use receptacle covers allow two receptacles to be utilized while the cover is closed in wet, damp or dry locations.

55 configurations
Each side is adaptable for GFCI, duplex, round and switch devices
3-1/8″ deep
Lockable
Meets NEMA 3R and NEC’s “Extra Duty” Requirement
Includes adaptor plates, pre-installed gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14433	2	031857144333

A	B	C
6.02	5.55	3.5

cULus: E121488
cCSAus: 174008

Standards: UL 514D, CSA C22.2 No. 42.1-13
NEMA: NEMA 3R
Other: NEC 2020 Extra Duty

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

Slimline While-In-Use Horizontal Receptacle Cover

Material: Non-Metallic

Category: Weatherproof

Sub Category: Cover

Type(s): 1-Gang

Connection Type(s): SlimlineWhile-In-Use

Feature(s): Extra Duty RatedHorizontal

Slimline in-use receptacle covers allow an outlet to be utilized while the cover is closed in wet, damp or dry locations.

15 Amp rated and adaptable for GFCI and duplex receptacles
For horizontal installations
Low profile, only 1-9/16″ deep
Lockable
Meets NEMA 3R and NEC’s “Extra Duty” Requirement
Includes adaptor plates, pre-installed gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Clear	14441CL	4	031857544416
Gray	14441	4	031857144418
White	14441WH	4	031857644413

A	B	C
5.77	3.95	1.56

cCSAus: 174008

Standards: UL 514D & UL 498A, CSA C22.2 No. 42.1-13 & CSA C22.2 No. 42-10
NEMA: NEMA 3R
Other: NEC 2020 Extra Duty

WARNING:
Risk of reproductive harm from exposure to Bisphenol A (BPA).
See www.P65Warnings.ca.gov

Installation Instructions

< Products

Slimline While-In-Use Vertical Receptacle Cover

Material: Non-Metallic

Category: Weatherproof

Sub Category: Cover

Type(s): 1-Gang

Connection Type(s): SlimlineWhile-In-Use

Feature(s): Extra Duty RatedVertical

Slimline in-use receptacle covers allow an outlet to be utilized while the cover is closed in wet, damp or dry locations.

15 Amp rated and adaptable for GFCI and duplex receptacles
For vertical installations
Low profile, only 1-9/16″ deep
Lockable
Meets NEMA 3R and NEC’s “Extra Duty” Requirement
Includes adaptor plates, pre-installed gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Clear	14440CL	6	031857544409
Gray	14440	6	031857144401
White	14440WH	6	031857644406

A	B	C
5.51	3.58	1.56

cCSAus: 174008

Standards: UL 514D & UL 498A, CSA C22.2 No. 42.1-13 & CSA C22.2 No. 42-10
NEMA: NEMA 3R
Other: NEC 2020 Extra Duty

WARNING:
Risk of reproductive harm from exposure to Bisphenol A (BPA).
See www.P65Warnings.ca.gov

Installation Instructions

< Products

One-Gang While-In-Use Receptacle Cover

Material: Non-Metallic

Category: Weatherproof

Sub Category: Cover

Type(s): 1-Gang

Connection Type(s): While-In-Use

Feature(s): Extra Duty RatedHorizontalVertical

One-gang in-use receptacle covers allow an outlet to be utilized while the cover is closed in wet, damp or dry locations.

16 configurations
Adaptable for GFCI, duplex, round and switch devices
2-1/4″ deep
For vertical or horizontal installation
Lockable
Meets NEMA 3R and NEC’s “Extra Duty” Requirement
Includes adaptor plates, pre-installed gasket and hardware

Product Info
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Clear	14414CL	6	031857541460
Bronze	14414BR	6	031857344146
Gray	14414	6	031857144142
White	14414WH	6	031857644147

cULus: E332841
cCSAus: 174008

Standards: UL 514D, CSA C22.2 No. 42.1-13
NEMA: NEMA 3R
Other: NEC 2020 Extra Duty

WARNING:
Risk of reproductive harm from exposure to Bisphenol A (BPA).
See www.P65Warnings.ca.gov

Installation Instructions

< Products

LED Spike Light

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Lighting

Type(s): LEDSpike Light

LED spike lights are used for outdoor lighting applications. Preassembled with a ground stake for direct ground installation.

7 watts and 550 lumens
Brightness equivalent to 40W Incandescent or 9W CFL
Warm white (3000 K) appearance
Plug-in floodlight with 4 ft. cord
Tool-free adjustable lamp head
Includes light with preassembled ground stake, 4 ft. cord with grounded outlet plug

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	14809BR	6	031857348090

A	B	C
2.52	4.23	6.55

cULus: E514227

Standards: UL 153, CSA C22.2 No. 250.4 & CSA C22.2 No. 250.13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

One-Gang While-In-Use GFCI Receptacle Kit

Material: Non-Metallic

Category: Weatherproof

Sub Category: BoxCoverKit

Type(s): 1-Gang

Connection Type(s): GFCIWhile-In-Use

Feature(s): Extra Duty RatedHorizontalVertical

One-gang in-use receptacle kits allow an outlet to be utilized while the cover is closed in wet, damp or dry locations.

For vertical or horizontal mounting with the corner hinge
15-Amp tamper-resistant, weather-resistant GFCI receptacle included
2-1/4″ deep
Lockable
Meets NEMA 3R and NEC’s “Extra Duty” Requirement
Includes one-gang metal box with three 1/2″ holes, one-gang while-in-use cover, TRWR GFCI receptacle, closure plugs, pre-installed gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Clear	16801	4	031857168018
White	16801WH	4	031857668013

A	B	C
5.98	4.02	4.65

cULus: E324138
cCSAus: 174008

Standards: UL 514D, CSA C22.2 No. 42.1-13
NEMA: NEMA 3R
Other: NEC 2020 Extra Duty

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

One-Gang While-In-Use GFCI Receptacle Kit

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: BoxCoverKit

Type(s): 1-Gang

Connection Type(s): GFCIWhile-In-Use

Feature(s): Extra Duty RatedHorizontalVertical

One-gang in-use receptacle kits allow an outlet to be utilized while the cover is closed in wet, damp or dry locations.

For vertical or horizontal mounting with the corner hinge
15-Amp tamper-resistant, weather-resistant GFCI receptacle included
3-1/8″ deep
Lockable
Meets NEMA 3R and NEC’s “Extra Duty” Requirement
Includes one-gang metal box with three 1/2″ holes, one-gang while-in-use cover, TRWR GFCI receptacle, closure plugs, pre-installed gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	16802	4	031857168025

A	B
4.54	3.66

cULus: E324138
cCSAus: 174008

Standards: UL 514D, CSA C22.2 No. 42.1-13
NEMA: NEMA 3R
Other: NEC 2020 Extra Duty

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

Two-Gang Multi-Use Receptacle Cover

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Cover

Type(s): 2-Gang

Connection Type(s): Multi-Use

Two-gang multi-use receptacle covers are used to provide weatherproof protection for two outdoor receptacles.

6 configurations
Each side is adaptable for GFCI, duplex and 1.41″ round receptacles
Suitable for wet locations when the covers are closed
Lockable
Includes adaptor plates, gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14945	8	031857149451

A	B
4.58	4.65

cULus: E121488

Standards: UL 514D, CSA C22.2 No. 42.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

Spike-A-Lite® Lampholder

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Lighting

Type(s): LampholderSpike Light

Spike-A-Lite® lampholders are used for outdoor lighting applications. Preassembled with a ground stake for direct ground installation.

Plug-in floodlight
9″ cord
Adjustable
150-Watt (max.) PAR38 bulb required (not included)
Includes lampholder with preassembled ground stake and gasket, 9 in. cord with grounded outlet plug

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	14792GN	6	031857947927

A	B
2.09	3.57

cULus: E237292

Standards: UL 153, CSA C22.2 No. 12-1982

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

One-Gang Vertical Multi-Use Receptacle Cover

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Cover

Type(s): 1-Gang

Connection Type(s): Multi-Use

Feature(s): Vertical

One-gang multi-use receptacle covers are used to provide weatherproof protection for an outdoor receptacle.

3 configurations
Adaptable for GFCI, duplex and 1.41″ round receptacles
Suitable for wet locations when the covers are closed
For vertical installation
Includes adaptor plates, gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	14146BR	12	031857341466
Gray	14146	12	031857141462
White	14146WH	12	031857641467

A	B
4.63	2.83

cULus: E121488

Standards: UL 514D, CSA C22.2 No. 42.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

One-Gang Horizontal Multi-Use Receptacle Cover

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Cover

Type(s): 1-Gang

Connection Type(s): Multi-Use

Feature(s): Horizontal

One-gang multi-use receptacle covers are used to provide weatherproof protection for an outdoor receptacle.

3 configurations
Adaptable for GFCI, duplex and 1.41″ round receptacles
Suitable for wet locations when the covers are closed
For horizontal installation
Includes adaptor plates, gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	14145BR	12	031857341459
Gray	14145	12	031857141455
White	14145WH	12	031857641450

A	B
4.63	2.83

cULus: E121488

Standards: UL 514D, CSA C22.2 No. 42.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

One-Gang Universal Receptacle Cover

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Cover

Type(s): 1-Gang

Connection Type(s): DuplexGFCIRoundUniversal

Feature(s): HorizontalVertical

One-gang universal receptacle covers are used to provide weatherproof protection for an outdoor receptacle.

6 configurations
Adaptable for GFCI, duplex and 1.41″ round receptacles
Suitable for wet locations when the covers are closed
For vertical or horizontal installation
Lockable
Includes adaptor plates, gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	14147BR	12	031857341473
Gray	14147	12	031857141479
White	14147WH	12	031857641474

A	B
4.57	2.81

cULus: E121488

Standards: UL 514D, CSA C22.2 No. 42.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

Round Lampholder Cover with Three 1/2″ Holes

Material: Non-Metallic

Category: Weatherproof

Sub Category: Cover

Type(s): Round

Connection Type(s): ClusterLampholder

Three hole cluster covers are used to provide a mounting location for up to three lampholders to a 4″ round weatherproof box.

With three 1/2″ threaded knockouts
Includes gasket, hardware and closure plugs

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14390	15	031857143909
White	14390WH	15	031857643904

A	B
4.5	1.17

cULus: E163827

Standards: UL 1598, CSA C22.2 No. 250.0-08

Installation Instructions

< Products

Gasket Kit

Material: Crosslinked Polyethylene Foam

Category: Weatherproof

Sub Category: Accessories

Type(s): 1-Gang2-GangGasketRound

Gaskets are used in conjunction with weatherproof boxes and covers for weatherproof installation.

Tear-out sections in one- and two-gang gaskets are adaptable for GFCI, duplex, round and switch devices
Includes (2) one-gang, (2) two-gang and (2) round gaskets

Product Info

Color	Model Number	Master Pack Quantity	UPC
Black	14000	5	031857140007

< Products

Lampholder Gasket

Material: Rubber

Category: Weatherproof

Sub Category: Accessories

Type(s): GasketLampholder

Lampholder gaskets are used in conjunction with lampholders for weatherproof installation of bulbs.

Product Info
Dimensions
Listing

Color	Model Number	Master Pack Quantity	UPC
Black	14004	25	031857140045

A
2.3

WARNING:
Risk of cancer and reproductive harm from exposure to Di(2-ethylhexyl)phthalate.
See www.P65Warnings.ca.gov

< Products

One-Gang Lampholder Cover with Three 1/2″ Holes

Material: Non-Metallic

Category: Weatherproof

Sub Category: Cover

Type(s): 1-Gang

Connection Type(s): ClusterLampholder

Three hole cluster covers are used to provide a mounting location for up to three lampholders to a one-gang weatherproof box.

With three 1/2″ threaded knockouts
Includes gasket, hardware and closure plugs

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14375	15	031857143756
White	14375WH	15	031857643751

A	B	C
4.77	3.01	1.22

cULus: E163827

Standards: UL 1598, CSA C22.2 No. 250.0-08

Installation Instructions

< Products

Round Cover with One 1/2″ Hole

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Cover

Type(s): Round

Connection Type(s): ClusterLampholder

One hole cluster covers are used to provide a mounting location for a single lampholder to a 4″ round weatherproof box.

With one 1/2″ threaded knockout
Includes gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	14381BR	10	031857343811
Gray	14381	20	031857143817
White	14381WH	10	031857643812

A	B
4.13	0.57

cULus: E163827

Standards: UL 1598, CSA C22.2 No. 250.0-08

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

Round Cover with Three 1/2″ Holes

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Cover

Type(s): Round

Connection Type(s): ClusterLampholder

Three hole cluster covers are used to provide a mounting location for up to three lampholders to a 4″ round weatherproof box.

With three 1/2″ threaded knockouts
Includes gasket, hardware and closure plugs

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	14383BR	12	031857343835
Gray	14383	15	031857143831
White	14383WH	12	031857643836

A	B
4.13	1.04

cULus: E163827

Standards: UL 1598, CSA C22.2 No. 250.0-08

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

Round Gasket

Material: Crosslinked Polyethylene Foam

Category: Weatherproof

Sub Category: Accessories

Type(s): GasketRound

Round gaskets are used in conjunction with 4″ round boxes and covers for weatherproof installation.

Product Info
Dimensions

Color	Model Number	Master Pack Quantity	UPC
Black	14002	20	031857140021

A	B
4.21	2.45

< Products

One-Gang Cover with One 1/2″ Hole

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Cover

Type(s): 1-Gang

Connection Type(s): ClusterLampholder

One hole cluster covers are used to provide a mounting location for a single lampholder to a one-gang weatherproof box.

With one 1/2″ threaded knockout
Includes gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	14371BR	10	031857343712
Gray	14371	15	031857143718
White	14371WH	10	031857643713

A	B	C
4.61	2.85	0.57

cULus: E163827

Standards: UL 1598, CSA C22.2 No. 250.0-08

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

One-Gang Cover with Three 1/2″ Holes

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Cover

Type(s): 1-Gang

Connection Type(s): ClusterLampholder

Three hole cluster covers are used to provide a mounting location for up to three lampholders to a one-gang weatherproof box.

With three 1/2″ threaded knockouts
Includes gasket, hardware and closure plugs

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	14373BR	10	031857343736
Gray	14373	15	031857143732
White	14373WH	10	031857643737

A	B	C
4.61	2.85	1.02

cULus: E163827

Standards: UL 1598, CSA C22.2 No. 250.0-08

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

One-Gang Universal GFCI Receptacle Kit

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: BoxCoverKit

Type(s): 1-Gang

Connection Type(s): GFCIUniversal

Feature(s): HorizontalVertical

One-gang universal GFCI receptacle kits are used to provide weatherproof protection for the included outdoor GFCI receptacle.

Suitable for wet locations when the covers are closed
For vertical or horizontal mounting with the universal cover’s corner hinge
15-Amp tamper-resistant, weather-resistant GFCI receptacle included
Includes one-gang metal box with three 1/2″ holes, one-gang universal cover, TRWR GFCI receptacle, closure plugs, gasket and hardware

Product Info
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Oil Rubbed Bronze	16449ORB	6	031857374495

cULus: E324138

Standards: UL 514D, CSA C22.2 No. 42.1-13
NEMA: NEMA 3R

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

One-Gang Gasket

Material: Crosslinked Polyethylene Foam

Category: Weatherproof

Sub Category: Accessories

Type(s): 1-GangGasket

One-gang gaskets are used in conjunction with one- gang boxes and covers for weatherproof installation.

Tear-out sections are adaptable for GFCI, duplex, round and switch devices

Product Info

Color	Model Number	Master Pack Quantity	UPC
Black	14001	20	031857140014

< Products

Two-Gang Gasket

Material: Crosslinked Polyethylene Foam

Category: Weatherproof

Sub Category: Accessories

Type(s): 2-GangGasket

Two-gang gaskets are used in conjunction with two- gang boxes and covers for weatherproof installation.

Tear-out sections are adaptable for GFCI, duplex, round and switch devices

Product Info

Color	Model Number	Master Pack Quantity	UPC
Black	14003	20	031857140038

< Products

Two-Gang Toggle Switch Kit

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: CoverKit

Type(s): 2-Gang

Connection Type(s): Switch

Feature(s): Single Pole

Two-gang toggle switch covers are used to provide weatherproof protection to two outdoor switches mounted in a two-gang weatherproof box.

Single pole 15-Amp/120 Volt toggle switch included
Includes two-gang toggle switch cover, (2) 15Amp SP toggle switches, gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14219	10	031857142193

A	B
4.84	4.84

cULus: E324138

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

One-Gang Universal Duplex Receptacle Kit

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: BoxCoverKit

Type(s): 1-Gang

Connection Type(s): DuplexUniversal

Feature(s): HorizontalVertical

One-gang universal duplex receptacle kits are used to provide weatherproof protection for the included outdoor duplex receptacle.

Suitable for wet locations when the covers are closed
For vertical or horizontal mounting with the universal cover’s corner hinge
15-Amp tamper-resistant, weather-resistant duplex receptacle included
Includes one-gang metal box with three 1/2″ holes, one-gang universal cover, TRWR duplex receptacle, closure plugs, gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	16446BR	6	031857364465
Gray	16446	6	031857164461
White	16446WH	6	031857664466

A	B
4.58	2.83

cULus: E324138

Standards: UL 514D, CSA C22.2 No. 42.1-13
NEMA: NEMA 3R

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

One-Gang Universal GFCI Receptacle Kit

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: BoxCoverKit

Type(s): 1-Gang

Connection Type(s): GFCIUniversal

Feature(s): HorizontalVertical

One-gang universal GFCI receptacle kits are used to provide weatherproof protection for the included outdoor GFCI receptacle.

Suitable for wet locations when the covers are closed
For vertical or horizontal mounting with the universal cover’s corner hinge
15-Amp tamper-resistant, weather-resistant GFCI receptacle included
Includes one-gang metal box with three 1/2″ holes, one-gang universal cover, TRWR GFCI receptacle, closure plugs, gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	16449BR	6	031857364496
Gray	16449	6	031857164492
White	16449WH	6	031857664497

A	B
4.57	2.83

cULus: E324138

Standards: UL 514D, CSA C22.2 No. 42.1-13
NEMA: NEMA 3R

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

One-Gang Horizontal Duplex Cover and Receptacle Kit

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: CoverKit

Type(s): 1-Gang

Connection Type(s): Duplex

Feature(s): Horizontal

Horizontal duplex cover and receptacle kits are used to provide weatherproof protection for the included outdoor duplex receptacle.

Suitable for wet locations when the covers are closed
For horizontal installation
15-Amp tamper-resistant, weather-resistant duplex receptacle included
Includes one-gang duplex cover, TRWR duplex receptacle, gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	14227BR	10	031857342272
Gray	14227	10	031857142278
White	14227WH	10	031857642273

A	B
4.58	2.83

cULus: E324138

Standards: UL 514D, CSA C22.2 No. 42.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

One-Gang Toggle Switch Kit

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: CoverKit

Type(s): 1-Gang

Connection Type(s): Switch

Feature(s): Single PoleVertical

Toggle switch kits are used to provide weatherproof protection for the included outdoor switch mounted in a one-gang weatherproof box.

Single pole 15-Amp/120 Volt toggle switch included
Includes one-gang toggle switch cover, 15A SP toggle switch, gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14216	10	031857142162

A	B
4.57	2.83

cULus: E324138

Standards: UL 514D, CSA C22.2 No. 42.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

One-Gang Toggle Switch Kit

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: CoverKit

Type(s): 1-Gang

Connection Type(s): Switch

Feature(s): 3-WayVertical

Toggle switch kits are used to provide weatherproof protection for the included outdoor switch mounted in a one-gang weatherproof box.

3-Way 15-Amp/120 Volt toggle switch included
Includes one-gang toggle switch cover, 15A 3-way toggle switch, gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14218	10	031857142186

A	B
4.57	2.83

cULus: E324138

Standards: UL 514D, CSA C22.2 No. 42.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

One-Gang Extension Ring

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Extension Ring

Type(s): 1-Gang

Extension rings are used to provide additional capacity to a weatherproof box for larger fill requirements.

Includes gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14223	12	031857142230

A	B	C	Volume
4.71	2.94	1.02	9.5

UL: E121488
CSA: LR57925

Standards: UL 514A, CSA C22.2 No. 18.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

Two-Gang Extension Ring

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Extension Ring

Type(s): 2-Gang

Extension rings are used to provide additional capacity to a weatherproof box for larger fill requirements.

Includes gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14323	6	031857143237

A	B	C	Volume
4.66	4.66	1.02	16

UL: E121488
CSA: LR57925

Standards: UL 514A, CSA C22.2 No. 18.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

Round Extension Ring

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Extension Ring

Type(s): Round

Extension rings are used to provide additional capacity to a weatherproof box for larger fill requirements.

Includes gasket, hardware and closure plugs

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	14236BR	8	031857342364
Gray	14236	8	031857142360
White	14236WH	8	031857642365

A	B	C	Volume
4.19	4.13	1.61	16.5

UL: E121488
CSA: LR57925

Standards: UL 514A, CSA C22.2 No. 18.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

Photoelectric Switch

Material: Non-Metallic

Category: Weatherproof

Sub Category: Accessories

Type(s): Photoelectric Switch

Photoelectric switches are used to provide dusk-to- dawn light control for weatherproof lighting fixtures.

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Black	14008	20	031857140082

A	B	C
2.0	1.11	0.82

cULus: E464470

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of reproductive harm from exposure to Bisphenol A (BPA).
See www.P65Warnings.ca.gov

Installation Instructions

< Products

1/2″ 4 Hole Flanged One-Gang Extension Ring

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Extension Ring

Type(s): 1-Gang

Extension rings are used to provide additional capacity to a weatherproof box for larger fill requirements.

Includes gasket, hardware and closure plugs

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14234	10	031857142346

A	B	C	Volume
4.57	2.86	1.31	12.5

UL: E121488
CSA: LR57925

Standards: UL 514A, CSA C22.2 No. 18.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

1/2″ 4 Hole One-Gang Extension Ring

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Extension Ring

Type(s): 1-Gang

Extension rings are used to provide additional capacity to a weatherproof box for larger fill requirements.

Includes gasket, hardware and closure plugs

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	14233BR	5	031857342333
Gray	14233	10	031857142339
White	14233WH	5	031857642334

A	B	C	Volume
4.57	2.86	1.31	9.5

UL: E121488
CSA: LR57925

Standards: UL 514A, CSA C22.2 No. 18.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

1/2″ & 3/4″ Closure Plug Kit

Material: Zinc Die-Cast

Category: Weatherproof

Sub Category: Accessories

Type(s): Closure Plug

Closure plugs are used to seal off unused knockouts in weatherproof boxes, extension rings and cluster covers.

Includes 1/2″ and 3/4″ gray closure plugs

Product Info
Listing

Color	Model Number	Master Pack Quantity	UPC
Gray	14050	12	031857140502

cULus: E121487

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

1/2″ Closure Plug Kit

Material: Non-Metallic

Category: Weatherproof

Sub Category: Accessories

Type(s): Closure Plug

Closure plugs are used to seal off unused knockouts in weatherproof boxes, extension rings and cluster covers.

Includes 1/2″ bronze and white closure plugs

Product Info
Listing

Color	Model Number	Master Pack Quantity	UPC
Bronze, White	14051	12	031857140519

cULus: E121487

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of reproductive harm from exposure to Bisphenol A (BPA).
See www.P65Warnings.ca.gov

< Products

1/2″ & 3/4″ Closure Plug Kit

Material: Non-Metallic

Category: Weatherproof

Sub Category: Accessories

Type(s): Closure Plug

Closure plugs are used to seal off unused knockouts in weatherproof boxes, extension rings and cluster covers.

Includes 1/2″ gray, bronze and white closure plugs and 3/4″ gray closure plugs

Product Info
Listing

Color	Model Number	Master Pack Quantity	UPC
Gray, Bronze, White	14052	12	031857140528

cULus: E121487

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of reproductive harm from exposure to Bisphenol A (BPA).
See www.P65Warnings.ca.gov

< Products

Two-Gang Multi-Use Receptacle Cover

Material: Non-Metallic

Category: Weatherproof

Sub Category: Cover

Type(s): 2-Gang

Connection Type(s): Multi-Use

Two-gang multi-use receptacle covers are used to provide weatherproof protection for two outdoor receptacles.

6 configurations
Each side is adaptable for GFCI, duplex and 1.41″ round receptacles
Suitable for wet locations when the covers are closed
Lockable
Includes adaptor plates, gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14180	8	031857141806
White	14180WH	8	031857641801

A	B
4.83	4.83

cULus: E332841

Standards: UL 514D, CSA C22.2 No. 42.1-13

Installation Instructions

< Products

1/2″ Closure Plugs

Material: Zinc Die-Cast

Category: Weatherproof

Sub Category: Accessories

Type(s): Closure Plug

Closure plugs are used to seal off unused knockouts in weatherproof boxes, extension rings and cluster covers.

Includes (4) closure plugs
Bronze & White are Non-metallic

Product Info
Dimensions
Listing

Color	Model Number	Master Pack Quantity	UPC
Gray	14005	30	031857140052
Bronze	14005BR	30	031857340056
White	14005WH	30	031857640057

A
0.82

cULus: E121487

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

3/4″ Closure Plugs

Material: Zinc Die-Cast

Category: Weatherproof

Sub Category: Accessories

Type(s): Closure Plug

Closure plugs are used to seal off unused knockouts in weatherproof boxes, extension rings and cluster covers.

Includes 3/4″ gray closure plugs

Product Info
Dimensions
Listing

Color	Model Number	Master Pack Quantity	UPC
Gray	14007	30	031857140076

A
1.04

cULus: E121487

Standards: UL 514B, CSA C22.2 No. 18.3-12

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

< Products

Two-Gang Multi-Use Receptacle and Toggle Switch Cover

Material: Non-Metallic

Category: Weatherproof

Sub Category: Cover

Type(s): 2-Gang

Connection Type(s): Multi-UseSwitch

Multi-use and toggle switch combination covers are used to provide weatherproof protection for one outdoor switch and one outdoor receptacle or switch.

Four configurations
Left side is preconfigured for duplex and adaptable for GFCI, 1.41″ round or a second switch
Suitable for wet locations when the covers are closed
Lockable receptacle cover
Includes adaptor plates, gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14329	8	031857143299
White	14329WH	8	031857643294

A	B
4.84	4.84

cULus: E332841

Standards: UL 514D, CSA C22.2 No. 42.1-13

Installation Instructions

< Products

Two-Gang Switch Cover

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Cover

Type(s): 2-Gang

Connection Type(s): Switch

Switch covers are used to provide weatherproof protection for two outdoor switches

Suitable for wet locations when the covers are closed
Includes gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14349	8	031857143497

A	B
4.54	4.54

UL: E121488
CSA: LR57925

Standards: UL 514D, CSA C22.2 No. 42.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

Two-Gang 20/50 Amp Receptacle Cover

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Cover

Type(s): 2-Gang

Connection Type(s): 20/50 Amp

Round receptacle covers are used to provide weatherproof protection for a single 20/50 Amp outdoor receptacle.

For one 2.125″ diameter outlet
Suitable for wet locations when the covers are closed
Includes gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14321	8	031857143213

A	B
4.54	4.54

UL: E121488
CSA: LR57925

Standards: UL 514D, CSA C22.2 No. 42.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

Two-Gang GFCI Receptacle and Toggle Switch Cover

Material: Non-Metallic

Category: Weatherproof

Sub Category: Cover

Type(s): 2-Gang

Connection Type(s): GFCISwitch

GFCI and toggle switch combination covers are used to provide weatherproof protection for one GFCI outdoor receptacle and one outdoor switch.

Suitable for wet locations when the covers are closed
Lockable receptacle cover
Includes gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14326	8	031857143268
White	14326WH	8	031857643263

A	B
4.84	4.84

cULus: E332841

Standards: UL 514D, CSA C22.2 No. 42.1-13

Installation Instructions

< Products

Two-Gang GFCI Receptacle and Toggle Switch Cover

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Cover

Type(s): 2-Gang

Connection Type(s): GFCISwitch

GFCI and toggle switch combination covers are used to provide weatherproof protection for one GFCI outdoor receptacle and one outdoor switch.

Suitable for wet locations when the covers are closed
Includes gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14344	8	031857143442

A	B
4.84	4.84

UL: E121488
CSA: LR57925

Standards: UL 514D, CSA C22.2 No. 42.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

Two-Gang Toggle Switch Cover

Material: Non-Metallic

Category: Weatherproof

Sub Category: Cover

Type(s): 2-Gang

Connection Type(s): Switch

Toggle switch covers are used to provide weatherproof protection for two outdoor switches.

Includes gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14327	8	031857143275
White	14327WH	8	031857643270

A	B
4.84	4.84

cULus: E332841

Standards: UL 514D, CSA C22.2 No. 42.1-13

Installation Instructions

< Products

Two-Gang Duplex and Single Receptacle Cover

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Cover

Type(s): 2-Gang

Connection Type(s): 15/20 AmpDuplex

Duplex and single receptacle combination covers are used to provide weatherproof protection for one duplex and one round 1.406″ single outdoor receptacle.

Suitable for wet locations when the covers are closed
Includes gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14346	8	031857143466

A	B
4.54	4.54

UL: E121488
CSA: LR57925

Standards: UL 514D, CSA C22.2 No. 42.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

Two-Gang Single Receptacle Cover

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Cover

Type(s): 2-Gang

Connection Type(s): 15/20 Amp

Single receptacle covers are used to provide weatherproof protection for two outdoor single round receptacles.

For two 1.406″ diameter outlets
Suitable for wet locations when the covers are closed
Includes gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14324	8	031857143244

A	B
4.54	4.54

UL: E121488
CSA: LR57925

Standards: UL 514D, CSA C22.2 No. 42.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

Two-Gang Duplex Receptacle and Toggle Switch Cover

Material: Non-Metallic

Category: Weatherproof

Sub Category: Cover

Type(s): 2-Gang

Connection Type(s): DuplexSwitch

Duplex and toggle switch combination covers are used to provide weatherproof protection for one duplex outdoor receptacle and one outdoor switch.

Suitable for wet locations when the covers are closed
Lockable receptacle cover
Includes gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14325	8	031857143251
White	14325WH	8	031857643256

A	B
4.84	4.84

cULus: E332841

Standards: UL 514D, CSA C22.2 No. 42.1-13

Installation Instructions

< Products

Two-Gang Duplex Receptacle Cover

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Cover

Type(s): 2-Gang

Connection Type(s): Duplex

Duplex receptacle covers are used to provide weatherproof protection for two outdoor duplex receptacles.

Suitable for wet locations when the covers are closed
Includes gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	14345BR	8	031857343453
Gray	14345	8	031857143459
White	14345WH	8	031857643454

A	B
4.54	4.54

UL: E121488
CSA: LR57925

Standards: UL 514D, CSA C22.2 No. 42.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

Two-Gang Duplex and GFCI Receptacle Cover

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Cover

Type(s): 2-Gang

Connection Type(s): DuplexGFCI

Duplex and GFCI receptacle combination covers are used to provide weatherproof protection for one duplex and one GFCI outdoor receptacle.

Suitable for wet locations when the covers are closed
Includes gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	14347BR	8	031857343477
Gray	14347	8	031857143473
White	14347WH	8	031857643478

A	B
4.54	4.54

UL: E121488
CSA: LR57925

Standards: UL 514D, CSA C22.2 No. 42.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

Two-Gang GFCI Receptacle Cover

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Cover

Type(s): 2-Gang

Connection Type(s): GFCI

GFCI receptacle covers are used to provide weatherproof protection for two outdoor GFCI receptacles.

Suitable for wet locations when the covers are closed
Includes gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14348	8	031857143480

A	B
4.54	4.54

UL: E121488
CSA: LR57925

Standards: UL 514D, CSA C22.2 No. 42.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

One-Gang Round 20 Amp Receptacle Cover

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Cover

Type(s): 1-Gang

Connection Type(s): 20 Amp

Feature(s): Vertical

Round receptacle covers are used to provide weatherproof protection for an outdoor 20 Amp receptacle.

For one 1.625″ diameter outlet
Suitable for wet locations when the cover is closed
For vertical installation
Includes gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14243	10	031857142438

A	B
4.57	2.83

UL: E121488
CSA: LR57925

Standards: UL 514D, CSA C22.2 No. 42.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

One-Gang Single 15/20 Amp Receptacle Cover

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Cover

Type(s): 1-Gang

Connection Type(s): 15/20 Amp

Feature(s): Vertical

Single receptacle covers are used to provide weatherproof protection for an outdoor 15/20 Amp standard receptacle.

For one 1.406″ diameter outlet
Suitable for wet locations when the cover is closed
For vertical installation
Includes gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	14224BR	8	031857342241
Gray	14224	15	031857142247
White	14224WH	8	031857642242

A	B
4.57	2.83

UL: E121488
CSA: LR57925

Standards: UL 514D, CSA C22.2 No. 42.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

One-Gang Universal Receptacle Cover

Material: Non-Metallic

Category: Weatherproof

Sub Category: Cover

Type(s): 1-Gang

Connection Type(s): DuplexGFCIRoundUniversal

Feature(s): HorizontalVertical

One-gang universal receptacle covers are used to provide weatherproof protection for an outdoor receptacle.

6 configurations
Adaptable for GFCI, duplex and 1.41″ round receptacles
Suitable for wet locations when the covers are closed
For vertical or horizontal installation
Lockable
Includes adaptor plates, gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14140	12	031857141400
White	14140WH	12	031857641405

A	B
4.76	3.01

cULus: E332841

Standards: UL 514D, CSA C22.2 No. 42.1-13

Installation Instructions

< Products

One-Gang Toggle Switch Cover

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Cover

Type(s): 1-Gang

Connection Type(s): Switch

Feature(s): Vertical

Toggle switch covers are used to provide weatherproof protection for an outdoor switch mounted in a one-gang weatherproof box.

Includes gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	14217BR	7	031857342173
Gray	14217	12	031857142179
White	14217WH	7	031857642174

A	B
4.57	2.83

UL: E121488
CSA: LR57925

Standards: UL 514D, CSA C22.2 No. 42.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

One-Gang Toggle Switch Cover

Material: Non-Metallic

Category: Weatherproof

Sub Category: Cover

Type(s): 1-Gang

Connection Type(s): Switch

Feature(s): Vertical

Toggle switch covers are used to provide weatherproof protection for an outdoor switch mounted in a one-gang weatherproof box.

Includes gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14210	12	031857142100
White	14210WH	12	031857642105

A	B
4.76	3.01

cULus: E332841

Standards: UL 514D, CSA C22.2 No. 42.1-13

Installation Instructions

< Products

One-Gang Round 30/50 Amp Receptacle Cover

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Cover

Type(s): 1-Gang

Connection Type(s): 30/50 Amp

Feature(s): Vertical

Round receptacle covers are used to provide weatherproof protection for an outdoor 30/50 Amp receptacle.

For one 2.125″ diameter outlet
Suitable for wet locations when the cover is closed
For vertical installation
Includes gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	14244BR	10	031857342449
Gray	14244	20	031857142445
White	14244WH	10	031857642440

A	B
4.57	2.83

UL: E121488
CSA: LR57925

Standards: UL 514D, CSA C22.2 No. 42.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

One-Gang Horizontal Duplex Receptacle Cover

Material: Non-Metallic

Category: Weatherproof

Sub Category: Cover

Type(s): 1-Gang

Connection Type(s): Duplex

Feature(s): Horizontal

Horizontal duplex covers are used to provide weatherproof protection for an outdoor duplex receptacle.

Suitable for wet locations when the covers are closed
For horizontal installation
Lockable covers
Includes gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14211	20	031857142117
White	14211WH	20	031857642112

A	B
4.77	2.96

cULus: E332841

Standards: UL 514D, CSA C22.2 No. 42.1-13

Installation Instructions

< Products

One-Gang Vertical GFCI Receptacle Cover

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Cover

Type(s): 1-Gang

Connection Type(s): GFCI

Feature(s): Vertical

Vertical GFCI covers are used to provide weatherproof protection for an outdoor GFCI receptacle.

Suitable for wet locations when the covers are closed
For vertical installation
Includes gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	14248BR	10	031857342487
Gray	14248	20	031857142483
White	14248WH	10	031857642488

A	B
4.57	2.83

UL: E121488
CSA: LR57925

Standards: UL 514D, CSA C22.2 No. 42.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

One-Gang Horizontal GFCI Receptacle Cover

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Cover

Type(s): 1-Gang

Connection Type(s): GFCI

Feature(s): Horizontal

Horizontal GFCI covers are used to provide weatherproof protection for an outdoor GFCI receptacle.

Suitable for wet locations when the covers are closed
For horizontal installation
Includes gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	14249BR	10	031857342494
Gray	14249	20	031857142490
White	14249WH	10	031857642495

A	B
4.57	2.83

UL: E121488
CSA: LR57925

Standards: UL 514D, CSA C22.2 No. 42.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

Round Blank Cover

Material: Non-Metallic

Category: Weatherproof

Sub Category: Cover

Type(s): Round

Connection Type(s): Blank

Round blank covers are used with 4″ round weatherproof boxes.

Protects boxes not in use.
Includes gasket and hardware
UL Marine Listed

Product Info
Dimensions
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14170	20	031857141707
White	14170WH	20	031857641702

A
4.29

Installation Instructions

< Products

One-Gang Vertical Duplex Receptacle Cover

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Cover

Type(s): 1-Gang

Connection Type(s): Duplex

Feature(s): Vertical

Vertical duplex covers are used to provide weatherproof protection for an outdoor duplex receptacle.

Suitable for wet locations when the covers are closed
For vertical installation
Includes gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	14246BR	10	031857342463
Gray	14246	20	031857142469
White	14246WH	10	031857642464

A	B
4.57	2.83

Standards: UL 514D, CSA C22.2 No. 42.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

One-Gang Horizontal Duplex Receptacle Cover

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Cover

Type(s): 1-Gang

Connection Type(s): Duplex

Feature(s): Horizontal

Horizontal duplex covers are used to provide weatherproof protection for an outdoor duplex receptacle.

Suitable for wet locations when the covers are closed
For horizontal installation
Includes gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	14245BR	20	031857342456
Gray	14245	20	031857142452
White	14245WH	20	031857642457

A	B
4.57	2.83

Standards: UL 514D, CSA C22.2 No. 42.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

Two-Gang Blank Cover

Material: Stamped Steel

Category: Weatherproof

Sub Category: Cover

Type(s): 2-Gang

Connection Type(s): Blank

Two-gang blank covers are used with two-gang, square weatherproof boxes. Protects boxes not in use.

Includes gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	14340BR	10	031857343408
Gray	14340	10	031857143404
White	14340WH	10	031857643409

A	B
4.49	4.49

cULus: E121488

Standards: UL 514D, CSA C22.2 No. 42.1-13

Installation Instructions

< Products

Two-Gang Blank Cover

Material: Non-Metallic

Category: Weatherproof

Sub Category: Cover

Type(s): 2-Gang

Connection Type(s): Blank

Two-gang blank covers are used with two-gang, square weatherproof boxes.

Protects boxes not in use.
Includes gasket and hardware
UL Marine Listed

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14160	10	031857141608
White	14160WH	10	031857641603

A	B
4.84	4.84

UL Marine: E332841

Installation Instructions

< Products

Round Blank Cover

Material: Stamped Steel

Category: Weatherproof

Sub Category: Cover

Type(s): Round

Connection Type(s): Blank

Round blank covers are used with 4″ round weatherproof boxes. Protects boxes not in use.

Includes gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	14241BR	20	031857342418
Gray	14241	20	031857142414
White	14241WH	20	031857642419

A
4.13

cULus: E121488

Standards: UL 514D, CSA C22.2 No. 42.1-13

Installation Instructions

< Products

LED Light Kit

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: KitLighting

Type(s): LED

LED light kits are for outdoor security or aesthetic lighting applications.

20 watts and 1600 lumens
Brightness equivalent to 120W Incandescent or 40W CFL
Warm white (3000 K) appearance
Tool-free adjustable lamp head
Includes round box with five 1/2″ holes, round cover, (2) LED lights, closure plugs, gasket and hardware

Product Info
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	16752BR	2	031857367527
Gray	16752	2	031857167523
White	16752WH	2	031857667528

cULus: E470512

Standards: UL 1598, CSA C22.2 No. 250.0-08

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

One-Gang Blank Cover

Material: Stamped Steel

Category: Weatherproof

Sub Category: Cover

Type(s): 1-Gang

Connection Type(s): Blank

One-gang blank covers are used with one-gang, rectangular weatherproof boxes. Protects boxes not in use.

Includes gasket and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	14240BR	20	031857342401
Gray	14240	20	031857142407
White	14240WH	20	031857642402

A	B
4.52	2.77

cULus: E121488

Standards: UL 514D, CSA C22.2 No. 42.1-13

Installation Instructions

< Products

One-Gang Blank Cover

Material: Non-Metallic

Category: Weatherproof

Sub Category: Cover

Type(s): 1-Gang

Connection Type(s): Blank

One-gang blank covers are used with one-gang, rectangular weatherproof boxes.

Protects boxes not in use.
Includes gasket and hardware
UL Marine Listed

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14150	20	031857141509
White	14150WH	20	031857641504

A	B
4.63	2.87

UL Marine: E332841

Installation Instructions

< Products

Round Cover and Two Lampholders Kit

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: KitLighting

Type(s): CoverLampholder

Round cover and lampholder kits are used in conjunction with a 4″ round weatherproof box in outdoor security or aesthetic lighting applications.

Adjustable lampholder
(2) 150-Watt (max.) PAR38 bulbs required (not included)
Includes three 1/2″ hole round cover, (2) lampholders, closure plug, gaskets and hardware

Product Info
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	14782BR	10	031857347826
Gray	14782	10	031857147822
White	14782WH	10	031857647827

cULus: E195204

Standards: UL 1598, CSA C22.2 No. 250.0-08

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

Metal Light Kit

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: KitLighting

Type(s): BoxCoverLampholder

Metal light kits are for outdoor security or aesthetic lighting applications.

Adjustable lampholder
(2) 150-Watt (max.) PAR38 bulbs required (not included)
Includes round box with five 1/2″ holes, round cover with three 1/2″ holes, (2) lampholders, closure plugs, gaskets and hardware

Product Info
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	16797	3	031857367978
Gray	16795	3	031857167950
White	16795WH	3	031857667955

cULus: E195204

Standards: UL 1598, CSA C22.2 No. 250.0-08

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

3/4″ 5 Hole Round Box

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Box

Type(s): Round

Round outlet boxes are used as a weatherproof junction box or mounting location for lampholders in wet, damp or dry locations.

Includes pre-installed ground screw, closure plugs and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	143854-75BR	8	031857438586
Gray	143854-75	13	031857438579
White	143854-75WH	8	031857438593

A	B	C	Volume
5.51	4.13	1.62	16

UL: E121488
CSA: LR57925

Standards: UL 514A, CSA C22.2 No. 18.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

5 Hole Round Outlet Box

Material: Non-Metallic

Category: Weatherproof

Sub Category: Box

Type(s): Round

Round outlet boxes are used as a weatherproof junction box or mounting location for lampholders in wet, damp or dry locations.

1/2″ or 3/4″ holes
Reducers included
Includes 3/4″ – 1/2″ reducing bushings and closure plugs
UL Marine Listed

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14130	13	031857141301
White	14130WH	13	031857641306

A	B	C	Volume
5.55	4.27	1.5	13.8

UL Marine: E332841

Installation Instructions

< Products

Round Cover and Lampholder Kit

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: KitLighting

Type(s): CoverLampholder

Round cover and lampholder kits are used in conjunction with a 4″ round weatherproof box in outdoor security or aesthetic lighting applications.

Adjustable lampholder
150-Watt (max.) PAR38 bulb required (not included)
Includes one 1/2″ hole round cover, (1) lampholder, gaskets and hardware

Product Info
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	14780BR	12	031857347802
Gray	14780	12	031857147808
White	14780WH	12	031857647803

cULus: E195204

Standards: UL 1598, CSA C22.2 No. 250.0-08

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

3/4″ 5 Hole Side Entry One-Gang Box

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Box

Type(s): 1-Gang

Connection Type(s): Side Entry

One-gang outlet boxes are used as a weatherproof junction box or housing for a single electrical device in wet, damp or dry locations.

Includes pre-installed ground screw, closure plugs and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14252-5X	16	031857425265

A	B	C	Volume
4.54	2.78	2.01	18

UL: E121488
CSA: LR57925

Standards: UL 514A, CSA C22.2 No. 18.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

3/4″ 5 Hole Side Entry Two-Gang Box

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Box

Type(s): 2-Gang

Connection Type(s): Side Entry

Two-gang outlet boxes are used as a weatherproof junction box or as a housing for up to two electrical devices in wet, damp or dry locations.

Includes pre-installed ground screw, closure plugs and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14352-5X	10	031857435264

A	B	C	Volume
4.51	4.51	2.14	31

UL: E121488
CSA: LR57925

Standards: UL 514A, CSA C22.2 No. 18.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

1/2″ 5 Hole Round Box

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Box

Type(s): Round

Round outlet boxes are used as a weatherproof junction box or mounting location for lampholders in wet, damp or dry locations.

Includes pre-installed ground screw, closure plugs and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	143854BR	13	031857343859
Gray	143854	13	031857143855
White	143854WH	13	031857643850

A	B	C	Volume
5.51	4.13	1.62	16

UL: E121488
CSA: LR57925

Standards: UL 514A, CSA C22.2 No. 18.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

3/4″ 3 Hole One-Gang Deep Box

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Box

Type(s): 1-Gang

Connection Type(s): Deep

One-gang outlet boxes are used as a weatherproof junction box or housing for a single electrical device in wet, damp or dry locations.

Includes pre-installed ground screw, closure plugs and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14256	10	031857142568

A	B	C	Volume
4.54	2.78	2.67	25.5

UL: E121488
CSA: LR57925

Standards: UL 514A, CSA C22.2 No. 18.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

1″ 3 Hole One-Gang Deep Box

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Box

Type(s): 1-Gang

Connection Type(s): Deep

One-gang outlet boxes are used as a weatherproof junction box or housing for a single electrical device in wet, damp or dry locations.

Includes pre-installed ground screw, closure plugs and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14257	6	031857142575

A	B	C	Volume
4.54	2.78	2.67	23

UL: E121488
CSA: LR57925

Standards: UL 514A, CSA C22.2 No. 18.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

1/2″ 5 Hole Side Entry One-Gang Box

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Box

Type(s): 1-Gang

Connection Type(s): Side Entry

One-gang outlet boxes are used as a weatherproof junction box or housing for a single electrical device in wet, damp or dry locations.

Includes pre-installed ground screw, closure plugs and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	14251-5XBR	10	031857425173
Gray	14251-5X	16	031857425166
White	14251-5XWH	10	031857425180

A	B	C	Volume
4.54	2.78	2.01	18.3

UL: E121488
CSA: LR57925

Standards: UL 514A, CSA C22.2 No. 18.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

3/4″ 7 Hole Two-Gang Box

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Box

Type(s): 2-Gang

Two-gang outlet boxes are used as a weatherproof junction box or as a housing for up to two electrical devices in wet, damp or dry locations.

Includes pre-installed ground screw, closure plugs and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14352-7	9	031857435271

A	B	C	Volume
4.51	4.51	2.14	30.3

UL: E121488
CSA: LR57925

Standards: UL 514A, CSA C22.2 No. 18.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

1″ 3 Hole Two-Gang Box

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Box

Type(s): 2-Gang

Two-gang outlet boxes are used as a weatherproof junction box or as a housing for up to two electrical devices in wet, damp or dry locations.

Includes pre-installed ground screw, closure plugs and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14357	12	031857143572

A	B	C	Volume
4.51	4.51	2.14	31

UL: E121488
CSA: LR57925

Standards: UL 514A, CSA C22.2 No. 18.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

1/2″ 5 Hole One-Gang Deep Box

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Box

Type(s): 1-Gang

Connection Type(s): Deep

One-gang outlet boxes are used as a weatherproof junction box or housing for a single electrical device in wet, damp or dry locations.

Includes pre-installed ground screw, closure plugs and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	14255BR	6	031857342555
Gray	14255	10	031857142551
White	14255WH	6	031857642556

A	B	C	Volume
4.54	2.78	2.67	25.5

UL: E121488
CSA: LR57925

Standards: UL 514A, CSA C22.2 No. 18.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

3/4″ 3 Hole Two-Gang Box

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Box

Type(s): 2-Gang

Two-gang outlet boxes are used as a weatherproof junction box or as a housing for up to two electrical devices in wet, damp or dry locations.

Includes pre-installed ground screw, closure plugs and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14352	9	031857143527

A	B	C	Volume
4.51	4.51	2.14	31

UL: E121488
CSA: LR57925

Standards: UL 514A, CSA C22.2 No. 18.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

3/4″ 4 Hole Two-Gang Box

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Box

Type(s): 2-Gang

Two-gang outlet boxes are used as a weatherproof junction box or as a housing for up to two electrical devices in wet, damp or dry locations.

Includes pre-installed ground screw, closure plugs and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14353	9	031857143534

A	B	C	Volume
4.51	4.51	2.14	31

UL: E121488
CSA: LR57925

Standards: UL 514A, CSA C22.2 No. 18.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

3/4″ 5 Hole Two-Gang Box

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Box

Type(s): 2-Gang

Two-gang outlet boxes are used as a weatherproof junction box or as a housing for up to two electrical devices in wet, damp or dry locations.

Includes pre-installed ground screw, closure plugs and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14353-5	9	031857435356

A	B	C	Volume
4.51	4.51	2.14	31

UL: E121488
CSA: LR57925

Standards: UL 514A, CSA C22.2 No. 18.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

1/2″ 5 Hole Two-Gang Box

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Box

Type(s): 2-Gang

Two-gang outlet boxes are used as a weatherproof junction box or as a housing for up to two electrical devices in wet, damp or dry locations.

Includes pre-installed ground screw, closure plugs and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	14351-5BR	9	031857435165
Gray	14351-5	9	031857435158
White	14351-5WH	9	031857435172

A	B	C	Volume
4.51	4.51	2.14	31

UL: E121488
CSA: LR57925

Standards: UL 514A, CSA C22.2 No. 18.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

7 Hole Two-Gang Outlet Box

Material: Non-Metallic

Category: Weatherproof

Sub Category: Box

Type(s): 2-Gang

Two-gang outlet boxes are used as a weatherproof junction box or as a housing for up to two electrical devices in wet, damp or dry locations.

Includes (3) 1/2″ holes and (4) 3/4″ holes
Includes closure plugs
UL Marine Listed

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14120	9	031857141202
White	14120WH	9	031857641207

A	B	C	Volume
4.63	4.63	1.97	28.3

UL Marine: E332841

Installation Instructions

< Products

1/2″ 7 Hole Two-Gang Box

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Box

Type(s): 2-Gang

Two-gang outlet boxes are used as a weatherproof junction box or as a housing for up to two electrical devices in wet, damp or dry locations.

Includes pre-installed ground screw, closure plugs and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14351-7	9	031857735173

A	B	C	Volume
4.51	4.51	2.14	30.3

UL: E121488
CSA: LR57925

Standards: UL 514A, CSA C22.2 No. 18.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

3/4″ 5 Hole One-Gang Box

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Box

Type(s): 1-Gang

One-gang outlet boxes are used as a weatherproof junction box or housing for a single electrical device in wet, damp or dry locations.

Includes pre-installed ground screw, closure plugs and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14253-5	16	031857425357

A	B	C	Volume
4.54	2.78	2.01	18.3

UL: E121488
CSA: LR57925

Standards: UL 514A, CSA C22.2 No. 18.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

1/2″ 3 Hole Two-Gang Box

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Box

Type(s): 2-Gang

Two-gang outlet boxes are used as a weatherproof junction box or as a housing for up to two electrical devices in wet, damp or dry locations.

Includes pre-installed ground screw, closure plugs and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	14350BR	6	031857343507
Gray	14350	9	031857143503
White	14350WH	6	031857643508

A	B	C	Volume
4.51	4.51	2.14	31

UL: E121488
CSA: LR57925

Standards: UL 514A, CSA C22.2 No. 18.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

1/2″ 4 Hole Two-Gang Box

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Box

Type(s): 2-Gang

Two-gang outlet boxes are used as a weatherproof junction box or as a housing for up to two electrical devices in wet, damp or dry locations.

Includes pre-installed ground screw, closure plugs and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14351	9	031857143510

A	B	C	Volume
4.51	4.51	2.14	31

UL: E121488
CSA: LR57925

Standards: UL 514A, CSA C22.2 No. 18.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

3/4″ 3 Hole One-Gang Box

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Box

Type(s): 1-Gang

One-gang outlet boxes are used as a weatherproof junction box or housing for a single electrical device in wet, damp or dry locations.

Includes pre-installed ground screw, closure plugs and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	14252BR	10	031857342524
Gray	14252	16	031857142520
White	14252WH	10	031857642525

A	B	C	Volume
4.54	2.78	2.01	18.3

UL: E121488
CSA: LR57925

Standards: UL 514A, CSA C22.2 No. 18.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

3 Hole One-Gang Outlet Box

Material: Non-Metallic

Category: Weatherproof

Sub Category: Box

Type(s): 1-Gang

One-gang outlet boxes are used as a weatherproof junction box or housing for a single electrical device in wet, damp or dry locations.

1/2″ or 3/4″ holes
Reducers included
Includes 3/4″ – 1/2″ reducing bushings and closure plugs
UL Marine Listed

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14110	16	031857141103
White	14110WH	16	031857641108

A	B	C	Volume
4.57	2.8	1.97	16.3

UL Marine: E332841

Installation Instructions

< Products

3/4″ 4 Hole One-Gang Box

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Box

Type(s): 1-Gang

One-gang outlet boxes are used as a weatherproof junction box or housing for a single electrical device in wet, damp or dry locations.

Includes pre-installed ground screw, closure plugs and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	14253BR	10	031857342531
Gray	14253	16	031857142537
White	14253WH	10	031857642532

A	B	C	Volume
4.54	2.78	2.01	18.3

UL: E121488
CSA: LR57925

Standards: UL 514A, CSA C22.2 No. 18.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

1/2″ 3 Hole One-Gang Box

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Box

Type(s): 1-Gang

One-gang outlet boxes are used as a weatherproof junction box or housing for a single electrical device in wet, damp or dry locations.

Includes pre-installed ground screw, closure plugs and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	14250BR	16	031857342500
Gray	14250	16	031857142506
White	14250WH	16	031857642501

A	B	C	Volume
4.54	2.78	2.01	18.3

UL: E121488
CSA: LR57925

Standards: UL 514A, CSA C22.2 No. 18.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

1/2″ 4 Hole One-Gang Box

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Box

Type(s): 1-Gang

One-gang outlet boxes are used as a weatherproof junction box or housing for a single electrical device in wet, damp or dry locations.

Includes pre-installed ground screw, closure plugs and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Bronze	14251BR	10	031857342517
Gray	14251	16	031857142513
White	14251WH	10	031857642518

A	B	C	Volume
4.54	2.78	2.01	18.3

UL: E121488
CSA: LR57925

Standards: UL 514A, CSA C22.2 No. 18.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions

< Products

1/2″ 5 Hole One-Gang Box

Material: Metal Die-Cast

Category: Weatherproof

Sub Category: Box

Type(s): 1-Gang

One-gang outlet boxes are used as a weatherproof junction box or housing for a single electrical device in wet, damp or dry locations.

Includes pre-installed ground screw, closure plugs and hardware

Product Info
Dimensions
Listing
Resources

Color	Model Number	Master Pack Quantity	UPC
Gray	14251-5	16	031857425159

A	B	C	Volume
4.54	2.78	2.01	18.3

UL: E121488
CSA: LR57925

Standards: UL 514A, CSA C22.2 No. 18.1-13

WARNING:
Risk of cancer and reproductive harm from exposure to Lead.
See www.P65Warnings.ca.gov

Installation Instructions
