Connection Type: Ground Rod
< Products

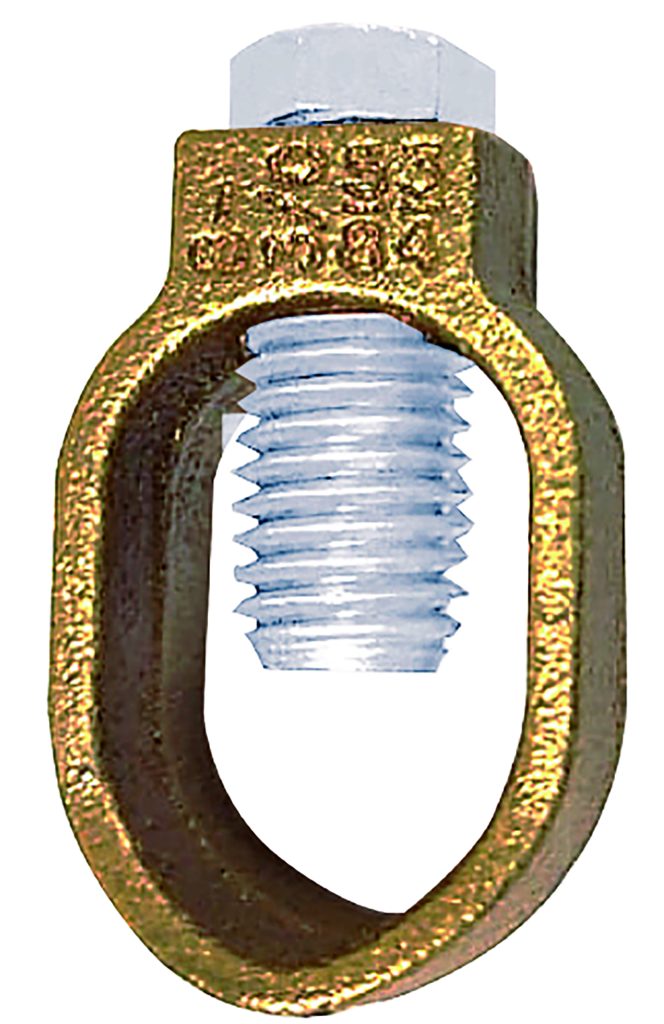

Ground Rod Clamp
Material: Copper Alloy
Category: Fittings
Sub Category: Grounding
Type(s): Clamp
Connection Type(s): Ground Rod
Used to connect bare copper wire to copper ground rod or rebar
- Cast from high strength, highly conductive copper alloy
- All listed models approved for Direct Burial
in earth and concrete - With stainless steel hex bolt

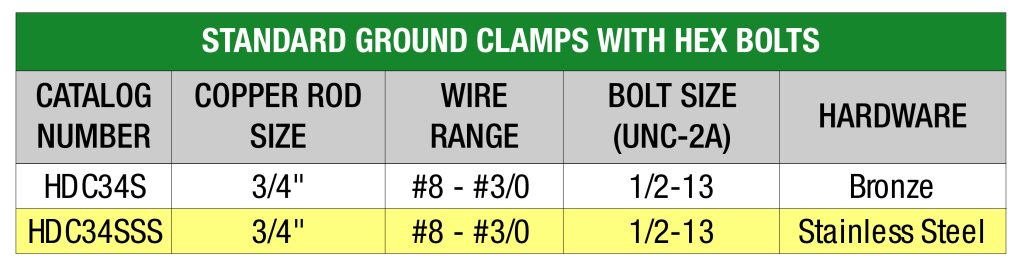

Trade Size
| Model Number |
|---|
| HDC34SSS |
| A | B | C | Volume |
|---|---|---|---|
cULus: E88878
Standards: UL 467, CSA C22.2 No. 41
Other: NEC Article 250
Standards: UL 467, CSA C22.2 No. 41
Other: NEC Article 250
< Products
Ground Rod Clamp
Material: Copper Alloy
Category: Fittings
Sub Category: Grounding
Type(s): Clamp
Connection Type(s): Ground Rod
Ground rod clamps are used to connect bare copper conductors directly to a driven ground rod.,Used to connect bare copper wire to copper ground rod or rebar
- Suitable for direct burial in ground and concrete
- Stainless steel screw,All listed models approved for Direct Burial
in earth and concrete - With stainless steel hex bolt
Trade Size
| Model Number |
|---|
| R11SS |
| R22SS |
| R33SS |
| A | B | C | Volume |
|---|---|---|---|
| 0.83 | 0.64 | 1.2 |
| A | B | C | Volume |
|---|---|---|---|
| 0.94 | 0.66 | 1.34 |
| A | B | C | Volume |
|---|---|---|---|
cULus: E88878
Standards: UL 467, CSA C22.2 No. 41
Other: NEC Article 250
Standards: UL 467, CSA C22.2 No. 41
Other: NEC Article 250
< Products
Ground Rod Clamp
Material: Copper Alloy
Category: Fittings
Sub Category: Grounding
Type(s): Clamp
Connection Type(s): Ground Rod
Used to connect bare copper wire to copper ground rod or rebar,Ground rod clamps are used to connect bare copper conductors directly to a driven ground rod.
- Cast from high strength, highly conductive copper alloy,Suitable for direct burial in ground and concrete
- All listed models approved for Direct Burial
in earth and concrete, - With bronze hex bolt
Trade Size
| Model Number |
|---|
| R1 |
| R10 |
| R11 |
| R2 |
| R22 |
| R3 |
| R33 |
| A | B | C | Volume |
|---|---|---|---|
| A | B | C | Volume |
|---|---|---|---|
| A | B | C | Volume |
|---|---|---|---|
| 0.83 | 0.64 | 1.2 |
| A | B | C | Volume |
|---|---|---|---|
| A | B | C | Volume |
|---|---|---|---|
| 0.94 | 0.66 | 1.34 |
| A | B | C | Volume |
|---|---|---|---|
| A | B | C | Volume |
|---|---|---|---|
cULus,: E88878,
Standards: UL 467, CSA C22.2 No. 41
Other: NEC Article 250
Standards: UL 467, CSA C22.2 No. 41
Other: NEC Article 250
< Products
Universal Ground Rod Clamp
Material: Copper Alloy
Category: Fittings
Sub Category: Grounding
Type(s): Clamp
Connection Type(s): Ground Rod
Ground rod clamps are used to connect bare copper conductors directly to a driven ground rod.
- For steel rebar trade sizes 4 to 5
- Suitable for direct burial in ground and concrete
- Stainless steel screw
Trade Size
| Model Number |
|---|
| R11USS |
| A | B | C | Volume |
|---|---|---|---|
| 1.06 | 0.63 | 1.63 |
cULus: E88878
Standards: UL 467, CSA C22.2 No. 41
Other: NEC Article 250
Standards: UL 467, CSA C22.2 No. 41
Other: NEC Article 250
< Products
Ground Rod Clamp
Material: Copper Alloy
Category: Fittings
Sub Category: Grounding
Type(s): Clamp
Connection Type(s): Ground Rod
Used to connect bare copper wire to copper ground rod or rebar
- Cast from high strength, highly conductive copper alloy
- All listed models approved for Direct Burial
in earth and concrete - With bronze hex bolt
Trade Size
| Model Number |
|---|
| HDC34S |
| A | B | C | Volume |
|---|---|---|---|
cULus: E88878
Standards: UL 467, CSA C22.2 No. 41
Other: NEC Article 250
Standards: UL 467, CSA C22.2 No. 41
Other: NEC Article 250
< Products
Ground Rod Clamp
Material: Copper Alloy
Category: Fittings
Sub Category: Grounding
Type(s): Clamp
Connection Type(s): Ground Rod
Ground rod clamps are used to connect bare copper conductors directly to a driven ground rod.
- Suitable for direct burial in ground and concrete
- Stainless steel screw
Trade Size
| Model Number | Retail Pack | Master Pack | Package Type |
|---|---|---|---|
| 49162 | 1 | 25 | Polybag |
| 49163 | 1 | 25 | Polybag |
| A | B | C | Volume |
|---|---|---|---|
| 0.83 | 0.64 | 1.2 |
| A | B | C | Volume |
|---|---|---|---|
| 0.94 | 0.66 | 1.34 |
cULus: E88878
Other: NEC Article 250
Other: NEC Article 250
< Products
Ground Rod Clamp
Material: Copper Alloy
Category: Fittings
Sub Category: Grounding
Type(s): Clamp
Connection Type(s): Ground Rod
Ground rod clamps are used to connect bare copper conductors directly to a driven ground rod.
- Suitable for direct burial in ground and concrete
Trade Size
| Model Number | Retail Pack | Master Pack | Package Type |
|---|---|---|---|
| 18162 | 1 | 10 | Polybag |
| 18165 | 1 | 10 | Polybag |
| A | B | C | Volume |
|---|---|---|---|
| 0.83 | 0.64 | 1.2 |
| A | B | C | Volume |
|---|---|---|---|
| 0.94 | 0.66 | 1.34 |
cULus: E88878
Other: NEC Article 250
Other: NEC Article 250
< Products
Universal Ground Rod Clamp
Material: Copper Alloy
Category: Fittings
Sub Category: Grounding
Type(s): Clamp
Connection Type(s): Ground Rod
Feature(s): Universal
Ground rod clamps are used to connect bare copper conductors directly to a driven ground rod.
- For steel rebar trade sizes 4 to 5
- Suitable for direct burial in ground and concrete
- Stainless steel screw
Trade Size
| Model Number | Retail Pack | Master Pack | Package Type |
|---|---|---|---|
| 49165 | 1 | 12 | Polybag |
| A | B | C | Volume |
|---|---|---|---|
| 1.06 | 0.63 | 1.63 |
cULus: E88878
Other: NEC Article 250
Other: NEC Article 250
