Connection Type: Clamp-On
< Products

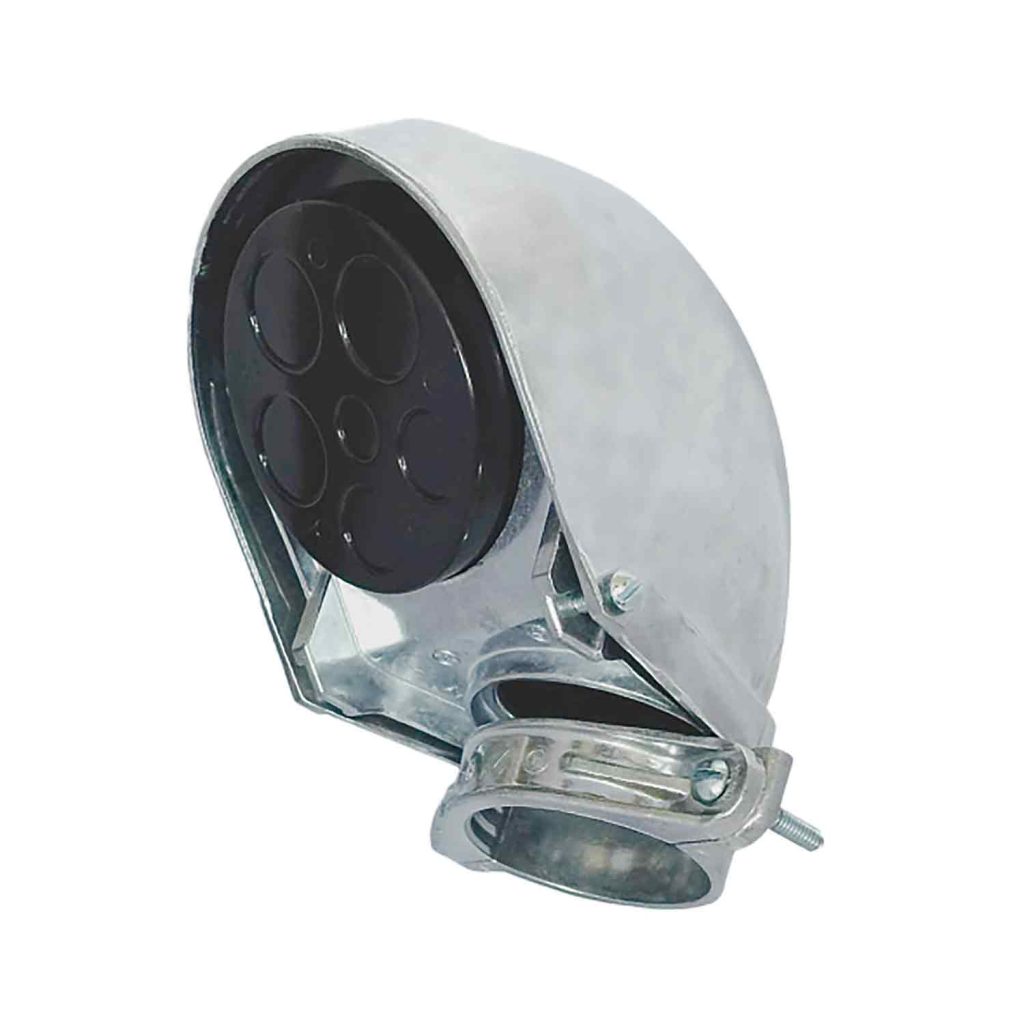

Clamp-On Service Entrance Head
Material: Aluminum Die-Cast
Category: Fittings
Sub Category: NMSE
Type(s): Service Entrance Head
Connection Type(s): Clamp-On
Service entrance heads are used as a connecting point in an overhead service entrance and can be mounted on threaded or unthreaded Rigid, IMC or EMT conduit.
- Clamp-on type
- Phenolic insulator with multiple holes
- Listed for use in wet locations
Trade Size
| Model Number |
|---|
| CO050 |
| CO075 |
| CO100 |
| CO125 |
| CO150 |
| CO200 |
| CO250 |
| CO300 |

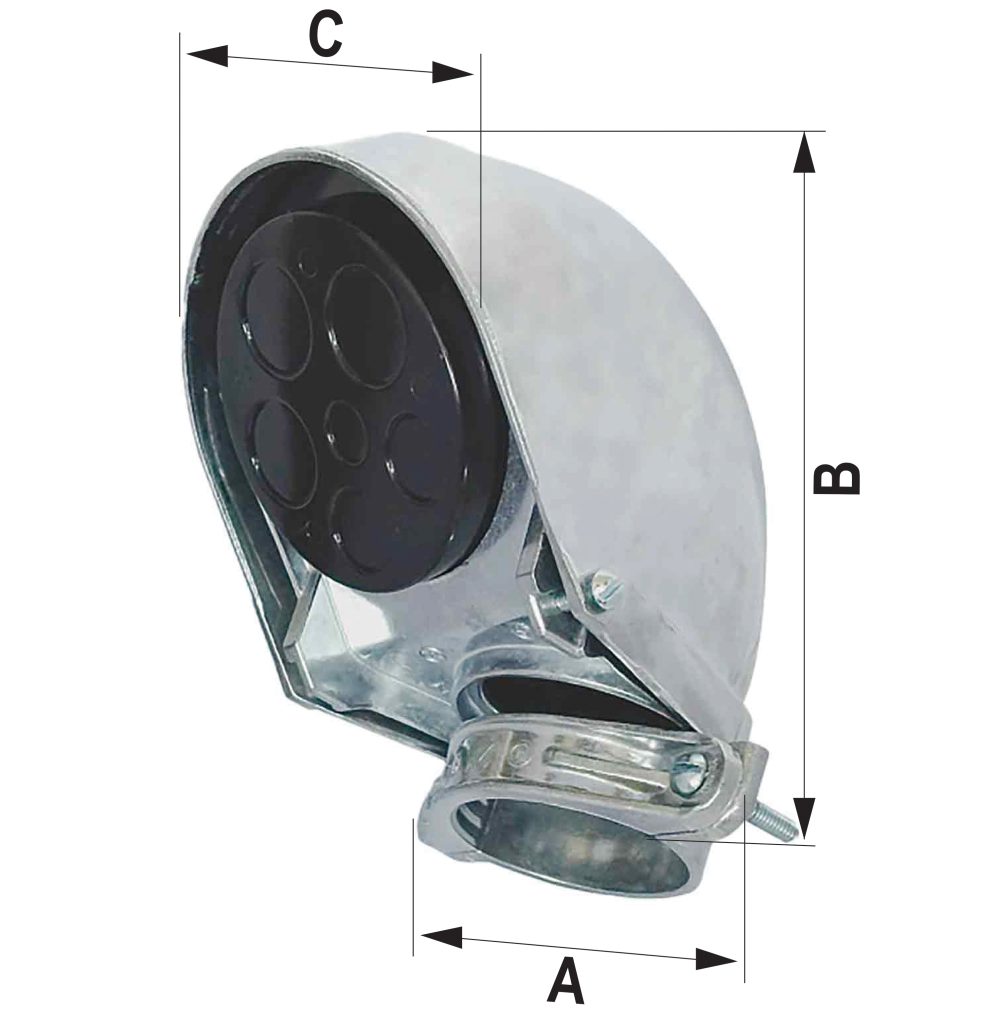

| A | B | C | Volume |
|---|---|---|---|
| 2.25 | 2.22 | 1.93 |
| A | B | C | Volume |
|---|---|---|---|
| 2.48 | 2.51 | 2.2 |
| A | B | C | Volume |
|---|---|---|---|
| 2.75 | 2.85 | 2.55 |
| A | B | C | Volume |
|---|---|---|---|
| 3.12 | 2.9 | 2.98 |
| A | B | C | Volume |
|---|---|---|---|
| 3.75 | 3.68 | 3.18 |
| A | B | C | Volume |
|---|---|---|---|
| 4.34 | 5.28 | 4.61 |
| A | B | C | Volume |
|---|---|---|---|
| 5.59 | 10.59 | 6.14 |
| A | B | C | Volume |
|---|---|---|---|
| 6.38 | 10.71 | 6.14 |
UL: E121487
CSA: LR57925
Standards: UL 514B, CSA C22.2 No. 18.3-12
CSA: LR57925
Standards: UL 514B, CSA C22.2 No. 18.3-12
< Products
Service Entrance Heads – Clamp-on Type
Material: Aluminum Die-Cast
Category: Fittings
Sub Category: NMSE
Type(s): Service Entrance Head
Connection Type(s): Clamp-On
Clamp-on type head used with rigid conduit, IMC or EMT for pulling service drop conductors
- Assembled with electrical grade insulator with multiple holes
- UL listed and CSA certified for wet location use
- Die-cast from high strength, corrosion and weather resistant aluminum alloy
Trade Size
| Model Number |
|---|
| CO300L |
| CO350 |
| CO400 |
| A | B | C | Volume |
|---|---|---|---|
| A | B | C | Volume |
|---|---|---|---|
| A | B | C | Volume |
|---|---|---|---|
UL: E121487
CSA: LR57925
Standards: UL 514B, CSA C22.2 No. 18.3-12
CSA: LR57925
Standards: UL 514B, CSA C22.2 No. 18.3-12
< Products
Clamp-On Service Entrance Head
Material: Aluminum Die-Cast
Category: Fittings
Sub Category: NMSE
Type(s): Service Entrance Head
Connection Type(s): Clamp-On
Service entrance heads are used as a connecting point in an overhead service entrance and can be mounted on threaded or unthreaded Rigid, IMC or EMT conduit.
- Clamp-on type
- Phenolic insulator with multiple holes
- Listed for use in wet locations
Trade Size
| Model Number | Retail Pack | Master Pack | Package Type |
|---|---|---|---|
| 02-51251 | 1 | 10 | Polybag |
| 02-51252 | 1 | 10 | Polybag |
| 02-51253 | 1 | 5 | Polybag |
| 02-51254 | 1 | 2 | Polybag |
| 02-51255 | 1 | 2 | Polybag |
| 02-51256 | 1 | 3 | Polybag |
| 02-51257 | 1 | 2 | Polybag |
| 02-51258 | 1 | 1 | Polybag |
| A | B | C | Volume |
|---|---|---|---|
| 2.25 | 2.22 | 1.93 |
| A | B | C | Volume |
|---|---|---|---|
| 2.48 | 2.51 | 2.2 |
| A | B | C | Volume |
|---|---|---|---|
| 2.75 | 2.85 | 2.55 |
| A | B | C | Volume |
|---|---|---|---|
| 3.12 | 2.9 | 2.98 |
| A | B | C | Volume |
|---|---|---|---|
| 3.75 | 3.68 | 3.18 |
| A | B | C | Volume |
|---|---|---|---|
| 4.34 | 5.28 | 4.61 |
| A | B | C | Volume |
|---|---|---|---|
| 5.59 | 10.59 | 6.14 |
| A | B | C | Volume |
|---|---|---|---|
| 6.38 | 10.71 | 6.14 |
UL: E121487
CSA: LR57925
Standards: UL 514B, CSA C22.2 No. 18.3-12
CSA: LR57925
Standards: UL 514B, CSA C22.2 No. 18.3-12
